Atomfair Vacuum Mixing  Dispersing Equipment

Product Overview

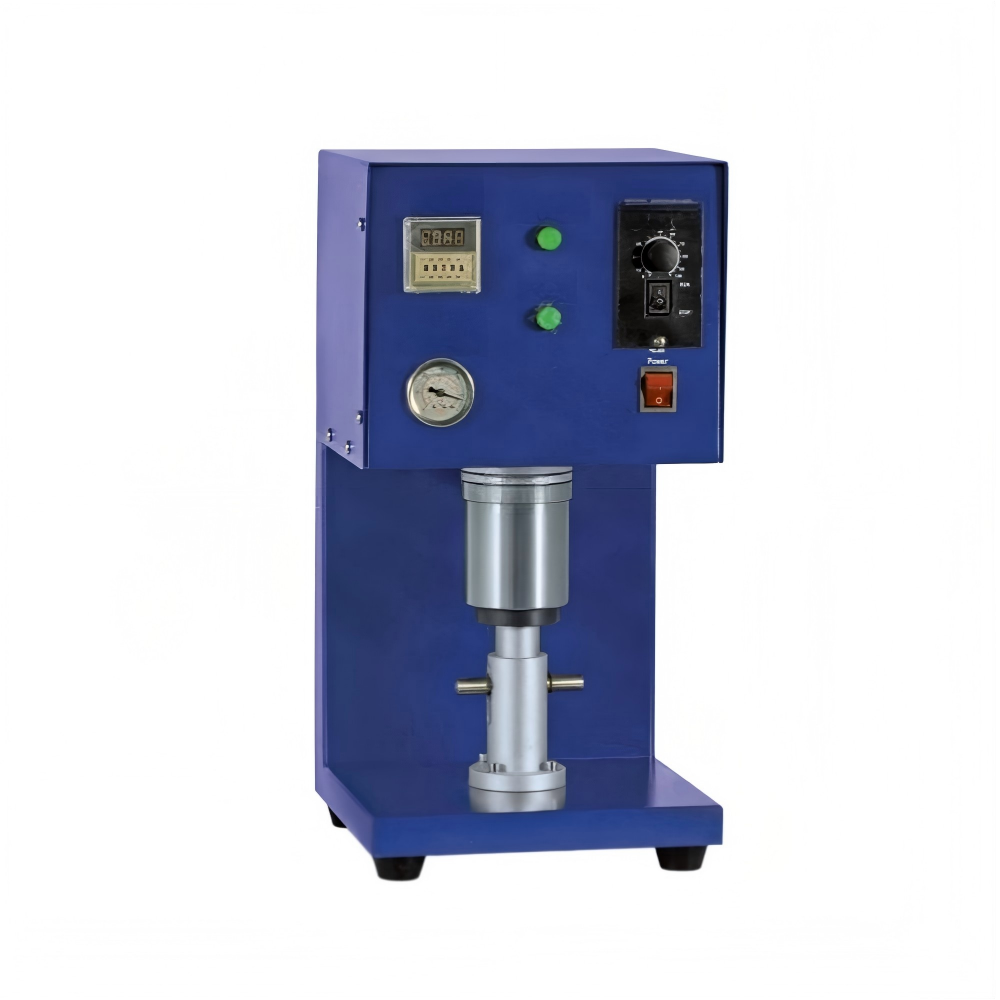

This product (Model: Atomfair-VMD-7510) is a high-efficiency integrated device with vacuum mixing and dispersing functions. It is suitable for the mixing process of positive and negative electrode slurries in battery experiments, as well as the mixing of powder materials and various ceramic materials. The entire stirring process of the equipment is completed in a vacuum environment, enabling thorough bubble-free mixing, effectively improving material fillability and mold compactness, and ensuring the stability of experimental and production results.

Key Features

• Adopts an industry-leading soft sealing process with excellent sealing performance to ensure a stable and reliable vacuum environment.
• The stirring motor is equipped with a gearbox frequency conversion adjustment system, which can flexibly select the adaptive rotation speed and torque according to different process requirements and material viscosities, adapting to a variety of operating scenarios.
• The equipment features a compact shape and exquisite size, which can effectively save space in laboratories and production sites.
• Exquisite appearance design with a three-dimensional geometric shape, the overall is concise and beautiful, and can be adapted to various laboratory environments.

Technical Parameters

Parameter Name	Specific Specifications
Rated Power	0.75 kW, 220 V
Stirring Speed	0-1400 rpm; Speed regulated by frequency converter
Effective Volume	1 L (2 L customizable)
Barrel Opening and Closing Method	Upper cover lifting driven by double-arm air cylinder
Inner Barrel Size	Φ106 mm (inner diameter) × 175 mm (height)
Overall Dimensions	800 mm (L) × 300 mm (W) × 700 mm (H)
Tank Cover Configuration	Equipped with vacuum gauge, vacuum suction port and other accessories
Overall Weight	Approx. 90 kg
Timer Function	The timing duration can be set arbitrarily within 0-99 hours; the equipment automatically stops running when the set time is reached and maintains a vacuum state

Model Coding Explanation

The coding logic conforms to the naming convention of industrial equipment, consisting of brand logo + function abbreviation + core parameters for easy quick identification of product attributes:

1. Atomfair: Exclusive brand logo to maintain brand unity
2. VMD: Abbreviation for Vacuum Mixing Dispersing, clarifying the core functions of vacuum mixing and dispersing
3. 7510: 75 stands for the rated power of 0.75 kW, and 10 stands for the effective volume of 1 L (identified by integer), intuitively reflecting the core specifications of the equipment.

If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
