Description

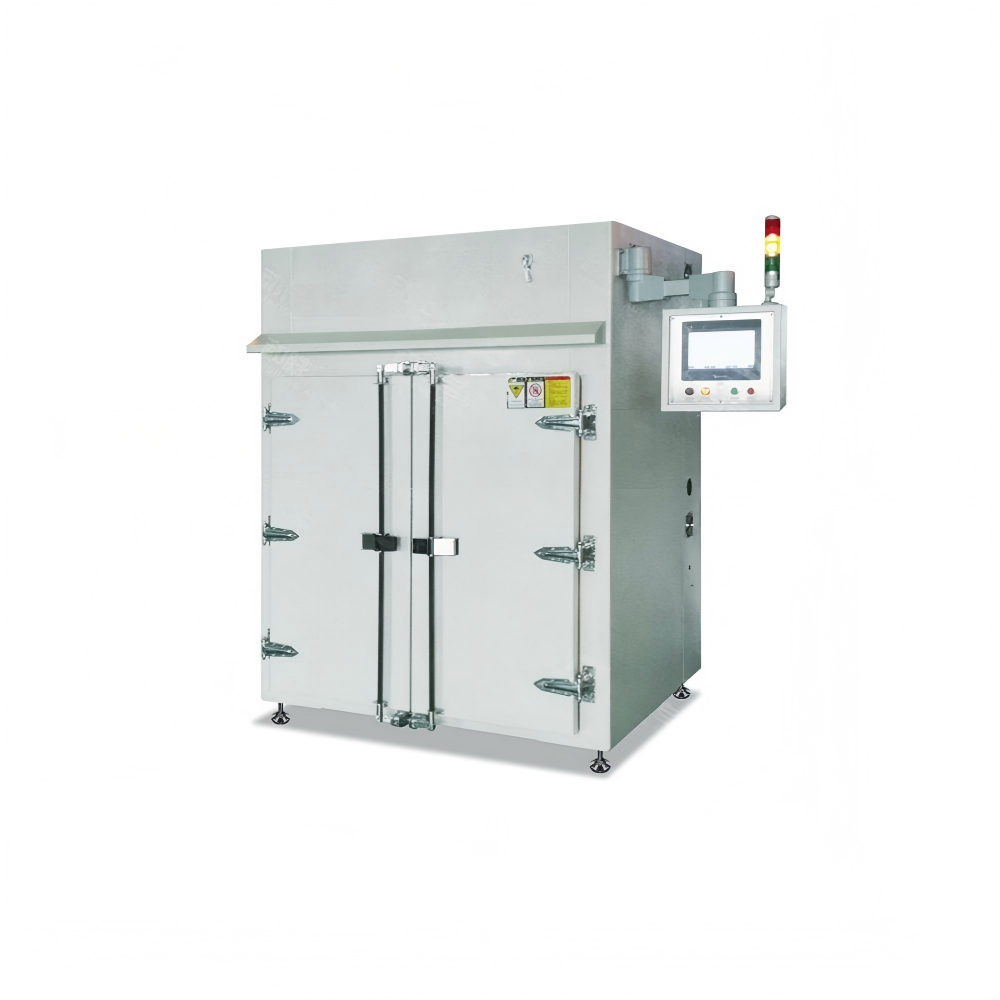

Atomfair Automatic Vacuum Drying System Product Information
Product Model
Atomfair-VDS-297
Release Date
2022-03-01
Version
V2.0
Dimensions & Weight
- Dimensions: W1400 * D1250 * H2200mm
- Weight: 800KG
Product Overview
This system is designed for vacuum drying of high-end supercapacitors and lithium-ion batteries. The whole process from baking to glove box injection is air-free, avoiding electrode oxidation, reducing moisture influence, improving power density, lowering internal resistance, and greatly enhancing consistency and service life.
Key Features
- Automatic control system with 3-stage temperature, vacuum, pressure holding and time settings.
- Touch screen displays real-time temperature, vacuum pressure, working time and remaining time.
- Interior and racks made of imported high-quality mirror stainless steel.
- High-quality bellows and stainless steel pipelines for leak-free connection.
- Fast and independent air circuit control with electric control valve components.
- Imported high-quality core components for durability and stability.
- Elegant, anti-peeling paint exterior finish.
Technical Specifications
- Application: Lithium-ion batteries, supercapacitors (customizable on request)
- Temperature Range: Ambient to +180℃
- Temperature Resolution: 0.1℃
- Temperature Uniformity: ≤±2℃
- Working Voltage: 380V/50Hz, 3-phase 5-wire
- Power: 8KW
- Dimensions: W1400*D1250*H2200mm
- Weight: 800KG
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
