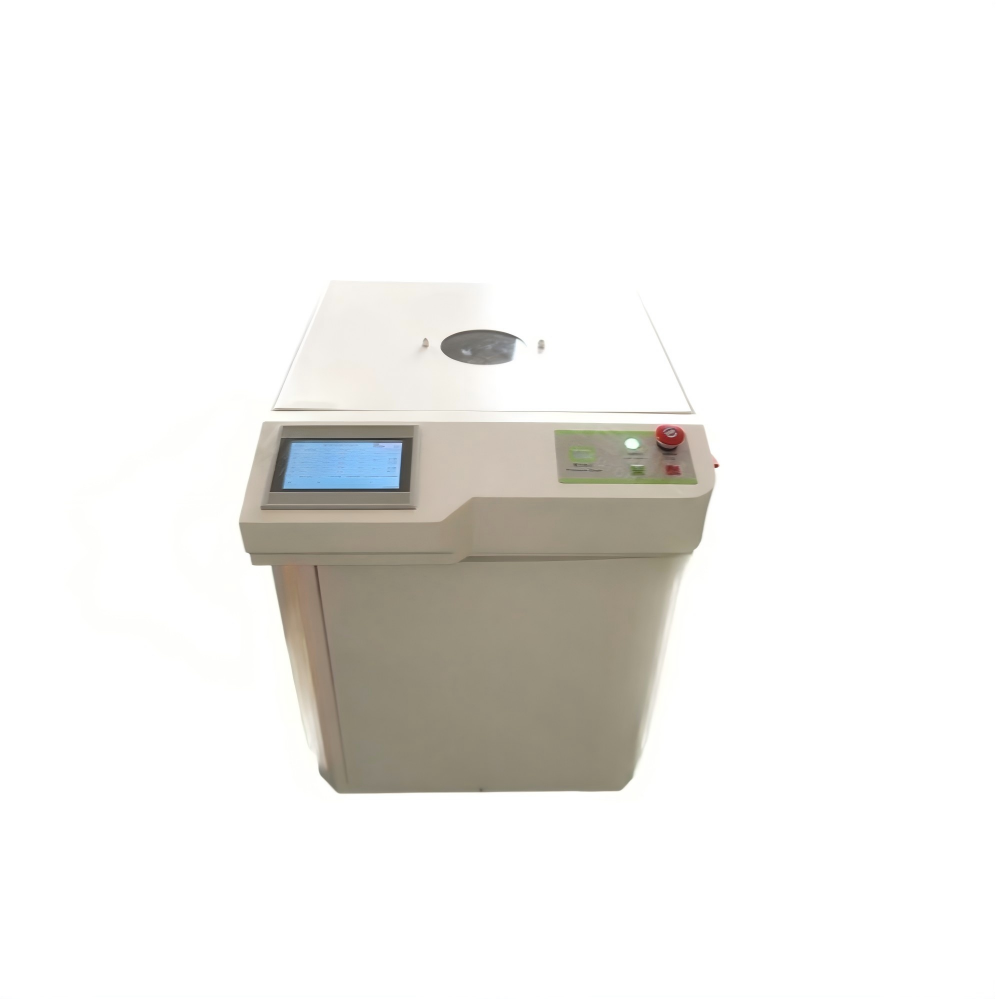

Atomfair Vacuum Deaeration & Mixing Machine Product Information

Model No.: Atomfair-VDM-518

This equipment is mainly used for removing bubbles from liquid or viscous materials. Through the combined action of a vacuum environment and a stirring device, it achieves uniform mixing and a bubble-free state of materials, thereby improving product quality and production efficiency.

Functional Features

Main Shaft: Adopts Swiss ASSAB S136 mirror mold steel, processed through multiple heat treatment procedures with an overall hardness of HRC 62. The entire shaft is ground, and the sealing surface is further mirror-ground to achieve a surface roughness of 0.02μm (mirror finish), featuring extremely low friction coefficient, superior wear resistance, minimal wear to the sealing ring, and ultra-long service life with high sealing performance.

Sealing Ring: Adopts high wear-resistant sealing rings from Bayer AG (Germany), which can withstand a linear speed of up to 40 m/s (the linear speed of our equipment is only 4 m/s at 2000 rpm) and a pressure of up to 20 kg/cm².

Vacuum Pump: Adopts a pump with forced oil circulation lubrication improved by internationally advanced technology, featuring excellent lubrication, low wear and long service life.

Gears: Adopts automotive spiral bevel gear structure, with stable operation, low noise and long service life.

Rotary Arm: Integral rotary arm, fully processed from imported American aerospace magnesium-aluminum alloy 7075, ensuring product precision and long-term stability. It has high interchangeability—rotary arms of the same model can be arbitrarily interchanged, facilitating easy maintenance.

Technical Parameters

Parameter Category	Specific Specifications
Mixing Method	Revolution/Rotation · Non-contact mixing method
PLC Control	Human-machine interaction, 7-inch touch screen operation, capable of editing and storing more than 5 groups of programs (Customizable for more program groups)
Operation Program	Each group of programs can be divided into 5 segments for control: operation time, operation speed, vacuum time, etc.
Revolution Speed	200-2800 rpm, stepless speed regulation, arbitrarily input according to user’s actual needs, precision of 1 rpm
Rotation Speed	200-2800 rpm, fixed revolution to rotation ratio of 1:1 (not adjustable after production; Customizable for specified ratios or independent stepless speed regulation without fixed ratio)
Forward/Reverse Adjustment	Yes, the rotation direction can be adjusted to forward or reverse
Continuous Operation Time	30 minutes (default), timer adjustable from 0 to 9999 hours with precision of 1 second (Customizable for long-term continuous operation)
Maximum Tank Capacity	300mL × 2 tanks = 600mL (300g × 2 tanks = 600g; Customizable for larger processing capacity). Note: Tanks are placed at a 45° angle, fill liquid materials to about 1/2 capacity and paste materials to about 2/3 capacity.
Simultaneous Mixing Quantity	2 tanks (Customizable for more stations), left-right balanced double mixing stations at a 45° inclined angle
Precision & Quality	During 12 hours of adhesive application with the equipment, the adhesive flows uniformly without delamination, abnormal defects caused by bubbles, pollution or damage to material properties.
Heating Function	No (Customizable, maximum heating temperature up to 300℃)
Cooling Function	No (Customizable, minimum cooling temperature down to -40℃)
Power Supply	AC 220V / 380V (optional), 50-60Hz
Power Rating	Operating power: 1550W; Standby power: 50W
Overall Dimensions	600mm × 690mm × 800mm (L×W×H)
Overall Weight	Approx. 130kg
Safety Functions	Door lock induction safety electronic lock, emergency stop switch

If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
