Description

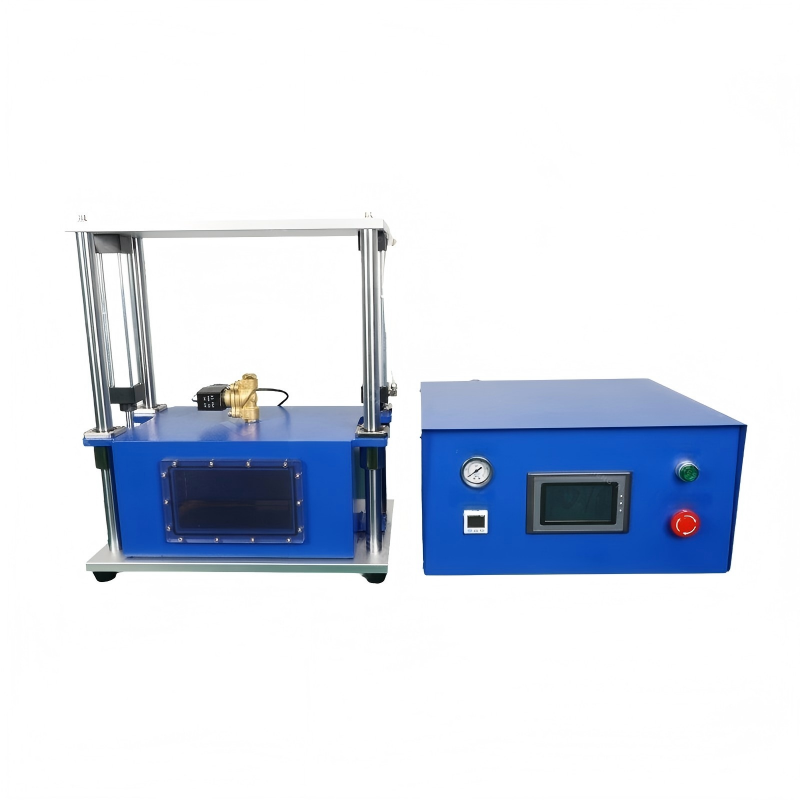

Atomfair Vacuum Standing Chamber

Model: Atomfair?VSC517
Release Date: 2022?03?01
Version: V2.0
Dimensions: approx. L460mm ? W220mm ? H340mm
Weight: 40KG

Application

Used for absorbing electrolyte during battery injection, allowing full integration of electrolyte and electrode plates under vacuum environment for pouch cells and cylindrical cells.

Product Description

Made with high?quality electrical components and materials, suitable for various battery sizes, simple operation and high efficiency.

Key Features

• Suitable for different battery specifications with easy adjustment.
• Separate main unit & control box design, can work inside glove box or on production line.
• Stable vacuum holding with small pressure drop.
• Multi?stage cycle function for better electrolyte absorption.
• Visible window for real?time chamber observation.
• Pneumatic top chamber with linear guides for smooth movement and reliable sealing.
• Easy operation, compact size, light weight, attractive appearance.

Technical Parameters

• Power Supply: 220V / 50Hz
• Power: 50W
• Air Supply: 0.5?0.7MPa
• Chamber Inner Size: L330mm ? W200mm ? H150mm
• Chamber Material: Aluminum alloy, corrosion?resistant and sturdy
• Standing Time: 0?99.99s adjustable
• Vacuum Level: up to -95KPa
• Weight: approx. 40KG

If you?re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
