Description

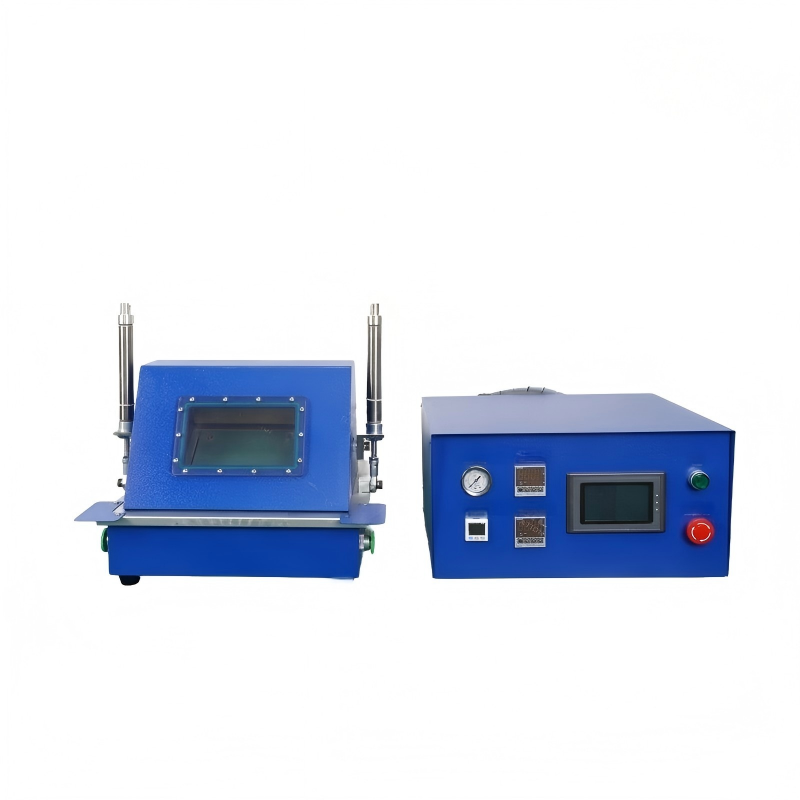

Atomfair Vacuum Pre-Sealing Machine

Model: Atomfair?VPS820
Launch Date: 2022?03?01
Version: V2.0
Weight: 50KG

Application

For vacuum pumping & hot-press pre-sealing of pouch lithium-ion batteries after electrolyte injection and standing.

Product Description

This machine automatically completes vacuum heat sealing of battery aluminum-plastic films via precise control of vacuum chamber and pneumatic heat sealing components.

Key Features

• Copper sealing heads with excellent heat transfer, energy saving, high efficiency, more energy-efficient than similar products
• Pressure of upper & lower sealing heads adjustable via pressure regulator to meet different process requirements
• Cylinder drive & linear guide bush guiding for stable operation and guaranteed parallelism of sealed edges
• Built-in viewing window for real-time observation of cavity working status
• Cylinder-driven cover cavity with rotary guide bush guiding for flexible movement and reliable sealing
• Compatible with various battery specifications, simple adjustment
• Split design of main unit & control box, usable in glove box or on production line
• Easy operation, elegant appearance, compact size and light weight

Technical Parameters

Item	Specification
Sealing Head Length	200mm
Sealing Edge Width	5mm
Sealing Head Temperature	Room temperature ~ 300? adjustable
Temperature Control Accuracy	±2?
Heat Sealing Time	0?99 seconds adjustable
Vacuum Degree	Max. -95KPa adjustable
Parallel Gap of Upper & Lower Sealing Heads	≤0.02mm
Power Supply	AC220V/50Hz
Air Pressure	5-7Kg/cm? adjustable
Dimensions	Working Unit: 470?485?435mm Control Box: 420?325?225mm
Weight	Approx. 50Kg

If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
