Description

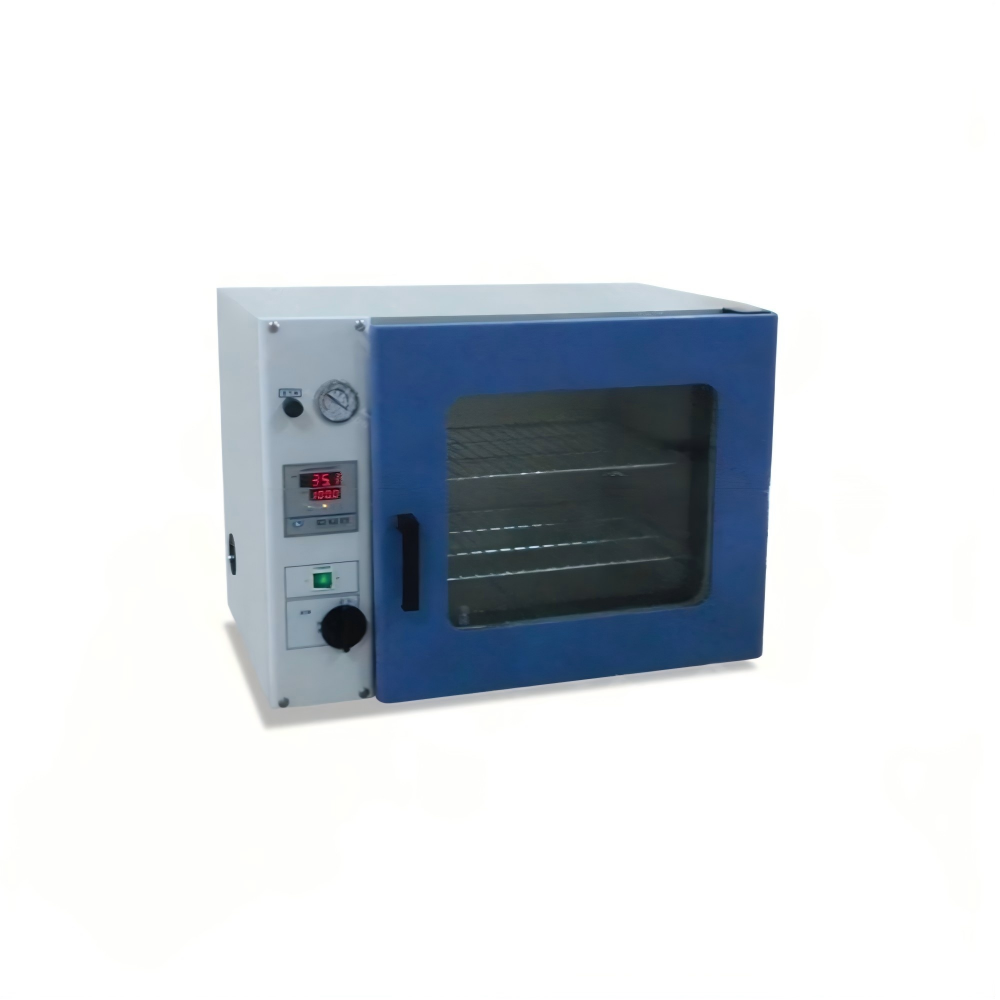

Atomfair Vacuum Drying Oven

Model: Atomfair-VacDry729

Release Date: 2022-03-01

Version: V1.0

Application

Suitable for drying, sterilization and heat treatment of materials under vacuum environment in laboratories of industrial and mining enterprises, universities, research institutes and other institutions.

Equipment Specifications

• External Dimensions: 710 ? 560 ? 550 mm
• Weight: 100 kg

Key Features

• Rectangular working chamber maximizes effective internal space.
• Double-layer tempered explosion-proof glass door for clear observation.
• Adjustable door tightness with high-temperature silicone gasket to ensure high vacuum performance.
• Inner tank made of SUS304 stainless steel, body with high-temperature electrostatic spraying for long service life.

Technical Parameters

• Working Voltage: 220V/50Hz
• Power: 1.4 kW
• Temperature Range: Ambient +10? ~ 250?
• Temperature Fluctuation: ±1.0?
• Temperature Resolution: 0.1?
• Capacity: 50 L
• External Dimensions: 710 ? 560 ? 550 mm

If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
