Description

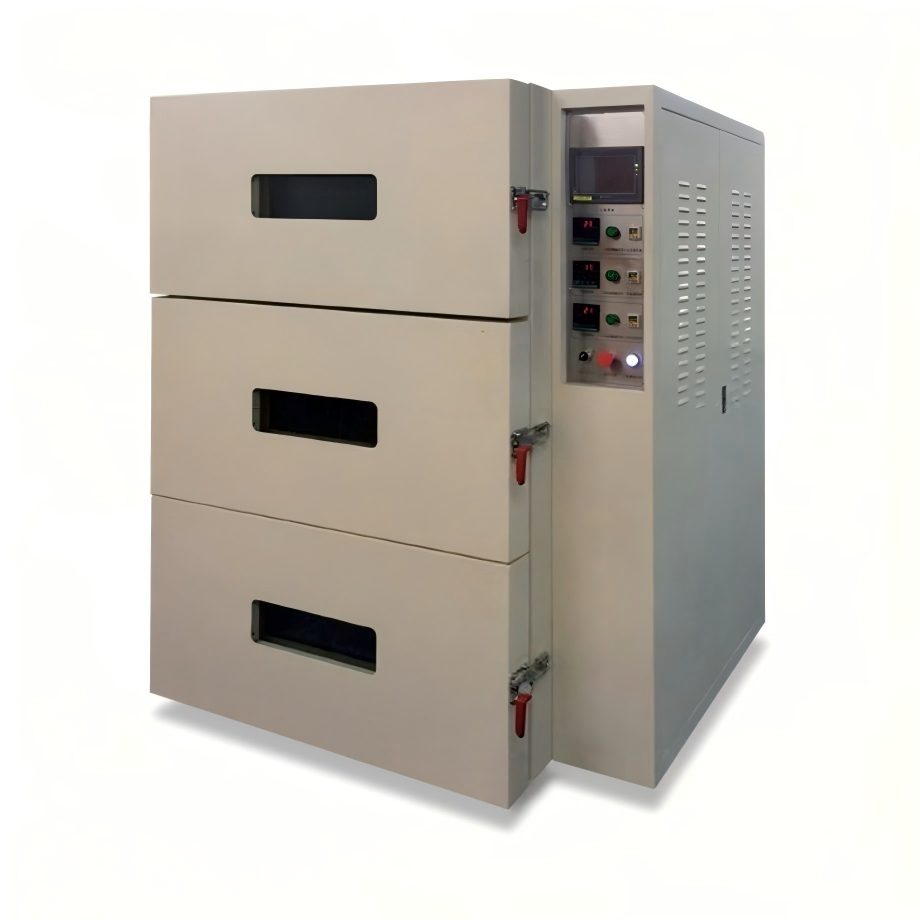

Atomfair Three-Layer Vacuum Oven

Product Model

Atomfair-VAC-945

Release Date

2024-09-05

Version

V2.0

Dimensions & Weight

• External size: 1280 × 1150 (120 for fan included) × 1900 mm
• Internal chamber: 660 × 750 × 330 mm
• Weight: 800 kg

---

Product Overview

Three-layer vacuum oven with 3mm stainless steel chamber. Each layer works independently with automatic cycling of heating, vacuum and gas filling. PLC + touch screen control, fast heating and cooling, stable pressure holding.

Key Features

• Compact structure, elegant appearance, small footprint
• Simple operation, no professional training needed
• Text-controlled valves, vacuum and nitrogen filling for high efficiency
• 3-layer independent design, single door single control, no interference
• 3mm thick stainless steel chamber, strong corrosion resistance
• 304 stainless steel heating pipes around chamber for uniform temperature
• Universal casters for easy movement
• Silicone rubber seal, 15mm tempered glass door with viewing window
• Double glass door with overpressure protection
• PID control, small thermal inertia, high temperature accuracy
• Touch screen operation, password protection for operators
• 2 stainless steel trays per chamber, layer height 103mm
• Side-mounted electric cabinet

Technical Specifications

• Temperature range: room temperature ~ 150°C (adjustable)
• Working voltage: 220V AC, single chamber control
• Total power: 8 kW
• Temperature accuracy: ±2°C (empty at 85°C)
• Display temperature error: ≤ 1°C
• Heating time: 60 mins to stable (empty)
• Surface temperature: ≤ 45°C at 100°C working
• Vacuum degree: -0.1 MPa
• Vacuum retention: ≥98% after 24h at -0.1MPa
• Heating: 304 stainless steel tube + hot air circulation
• Control system: PLC automatic control
• Chamber material: 3mm high-quality stainless steel
• Frame material: high-quality cold-rolled sheet
• Control: solid-state relay, brand electrical parts
• Protection: power-off protection
• Circulation system: programmable automatic cycle
