Description

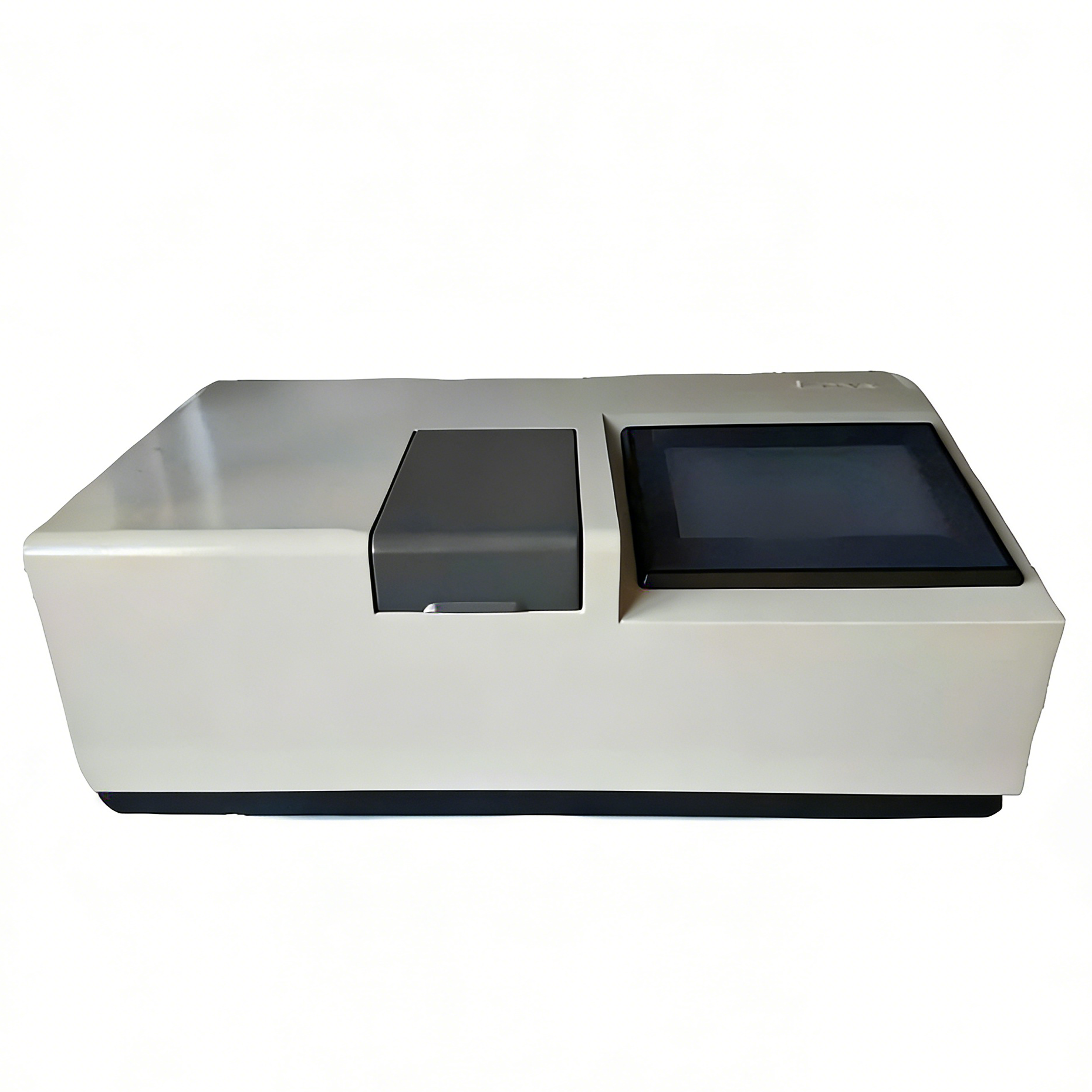

Atomfair UV-Oil 510 Ultraviolet Oil Analyzer
Product Overview
Atomfair UV-Oil 510 is a professional ultraviolet oil analyzer developed in accordance with international testing standards, specially designed for the determination of petroleum hydrocarbons in surface water, groundwater and seawater. Equipped with high-precision optical components and intelligent detection technology, it features high measurement accuracy, good repeatability and easy operation, providing accurate and efficient petroleum content detection solutions for water quality monitoring and environmental testing scenarios.
Core Advantages
1. Ultimate Detection Precision: Equipped with micrometer-level precision screw drive grating, matched with 1200 lines/nm high-performance grating and imported receiver, the wavelength accuracy reaches ±0.1nm, transmittance accuracy ±0.1%, ensuring accurate and reliable detection data.
2. Ultra-sensitive Low-limit Detection: The detection limit is ≤0.005mg/L, the detection limit of oil concentration in enriched water 3SD < 0.1mg/L, the absorbance linear range is 0.0000~1.9999AU, the linear relationship > 0.999, which can accurately capture trace petroleum substances.
3. Intelligent & Convenient Operation: Support two modes of single-point rapid calibration and standard curve calibration, automatically complete wavelength calibration and setting; freely set the volume of water sample and n-hexane, automatically calculate and display the concentration of solution and water sample; equipped with 128*64 dot matrix LCD display, support stand-alone operation or computer connection, the process is efficient and worry-free.
4. Excellent Optical Performance: Spectral bandwidth 1.8nm, stray light only 0.01%T, baseline flatness ±0.001nm, strong optical stability and outstanding anti-interference ability, ensuring detection accuracy in complex water quality environment.
5. Global Voltage Adaptation: Support AC 110/220V 50/60Hz wide voltage input, adapt to power standards in different regions of the world, with a wider scope of application.
Technical Parameters
Technical Index Specification Parameters
Detection Wavelength 225nm
Reagent Used n-Hexane
Wavelength Accuracy ±0.1nm
Wavelength Repeatability ≤0.1nm
Spectral Bandwidth 1.8nm
Stray Light 0.01%T
Detection Limit ≤0.005mg/L
Measurement Repeatability <2%
Measurement Accuracy ±2%
Absorbance Linear Range 0.0000~1.9999AU
Linear Relationship >0.999
Measurement Range (Enriched Oil Concentration in Water) 0.0~50mg/L
Detection Limit 3SD (Enriched Oil Concentration in Water) <0.1mg/L
Baseline Flatness ±0.001nm
Communication Interface RS232, USB
Overall Dimension (mm) 545×468×245
Weight (Kg) 16
Power Supply AC 110/220V 50/60Hz
Working Humidity <80%
