Description

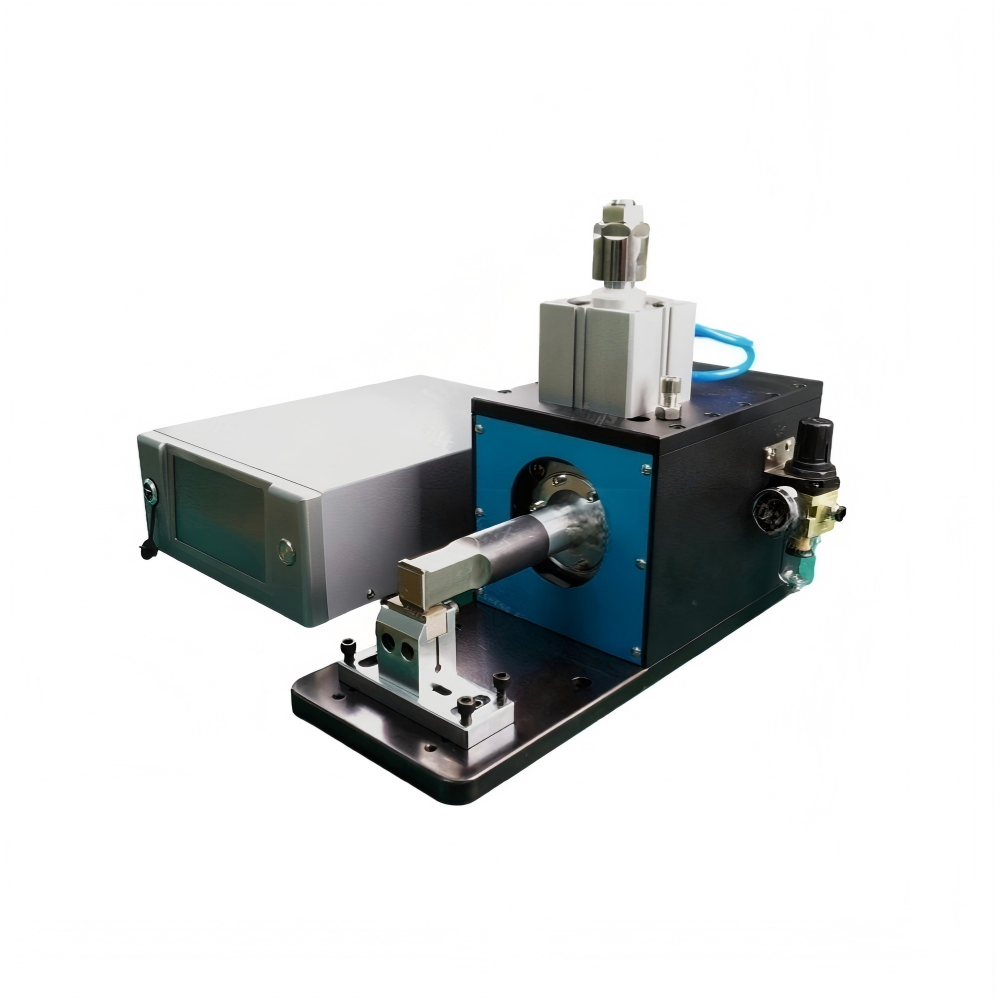

Atomfair Ultrasonic Spot Welding Machine

Product Model

Atomfair-USW-721

Release Date

2024-09-05

Version

V2.0

Dimensions & Weight

• Controller size: 360 × 480 × 200 mm
• Generator size: 300 × 460 × 270 mm
• Weight: approx. 60 kg

---

Product Overview

Ultrasonic spot welding machine uses high-frequency vibration energy to weld metal. Electric energy is converted into mechanical energy, creating frictional heat to achieve stable metal bonding.

Key Features

• Low internal resistance, excellent electrical conductivity after welding
• No oxidation marks; ultrasonic cleaning effect allows welding without surface treatment
• No solder or flux needed, economical and convenient
• Wear-resistant welding horn for long service life
• Stable joints, no change to metal microstructure, clean and uniform welding
• Low cost, fast speed, easy operation and maintenance
• Fast welding time: 0.01–2 seconds
• Spark-free, smokeless, safe and eco-friendly operation

Technical Specifications

• Working voltage: AC220V/50Hz
• Working air pressure: 0.5–0.7 MPa
• Ultrasonic frequency: 20kHz (auto-tracking)
• Input power: 2000W (adjustable)
• Welding time: 0–1 second
• Weight: approx. 60 kg

If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
