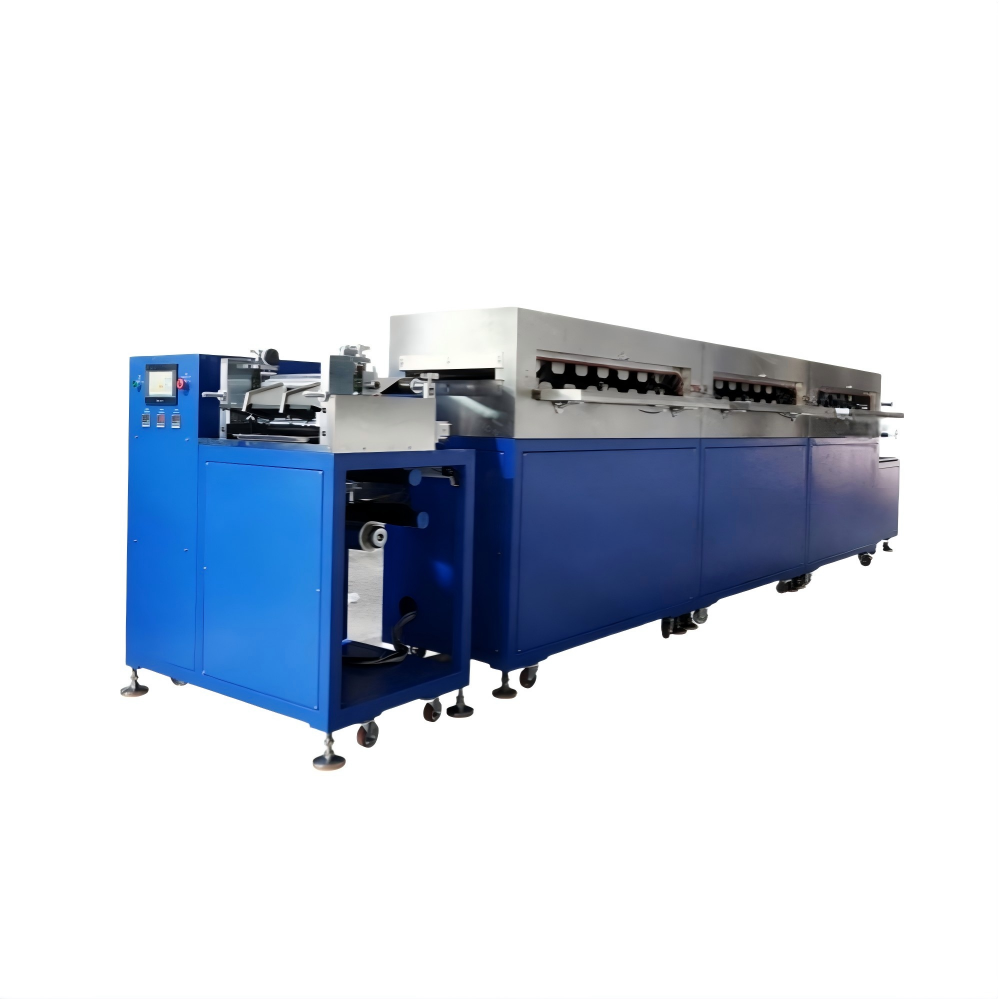

Atomfair-TC309 Tri-roll Transfer Coating Machine

Product Overview

A professional tri-roll transfer coating equipment that supports continuous and intermittent coating modes, specially designed for surface coating processes of various substrates, with flexible operation and wide applicability for lab and pilot test coating scenarios.

Core Features

• ✅ Freely switch between continuous and intermittent coating modes
• ✅ Substrate tension control with stable tape running, equipped with deviation correction device
• ✅ Hot air oven with top & bottom double-sided air supply for excellent drying effect
• ✅ Tri-roll transfer coating with a wide coating window, adapting to diverse process requirements
• ✅ Comma knife metering matched with precision adjustment mechanism for high coating accuracy
• ✅ PLC control system and touch screen operation for intuitive and easy use
• ✅ Optional solvent recovery and treatment device for environmental protection

Technical Specifications

Item	Specification
Coating Mode	Intermittent coating, Continuous coating
Guide Roll Width	330 mm
Max Coating Width	300 mm (Customizable)
Max Mechanical Speed	5 m/min
Coating Accuracy	±3 μm (Edge error ±5 μm)
Coating Thickness	Slurry-dependent, 40 ~ 200 μm
Thickness Adjustment	Stepless manual adjustment
Max Unwinding/Rewinding Diameter	Φ300 mm
Rewinding Accuracy	±0.5 mm
Tension Control	Max 60 N (Adjustable)
Micrometer Display Precision	1 μm
Drying Temperature	Room temperature ~ 120 ℃ (Adjustable)
Drying Unit	Standard hot air drying
Oven Length	3 sections, 1.5 m per section, total 4.5 m (Customizable)
Compressed Air Requirement	0.5 ~ 0.7 Mpa
Power Supply	3-phase 380 V / 50 Hz
Max Power	30 kW
Overall Dimension	L6600 × W1200 × H1600 mm
Net Weight	Approx. 2 T

If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
