Description

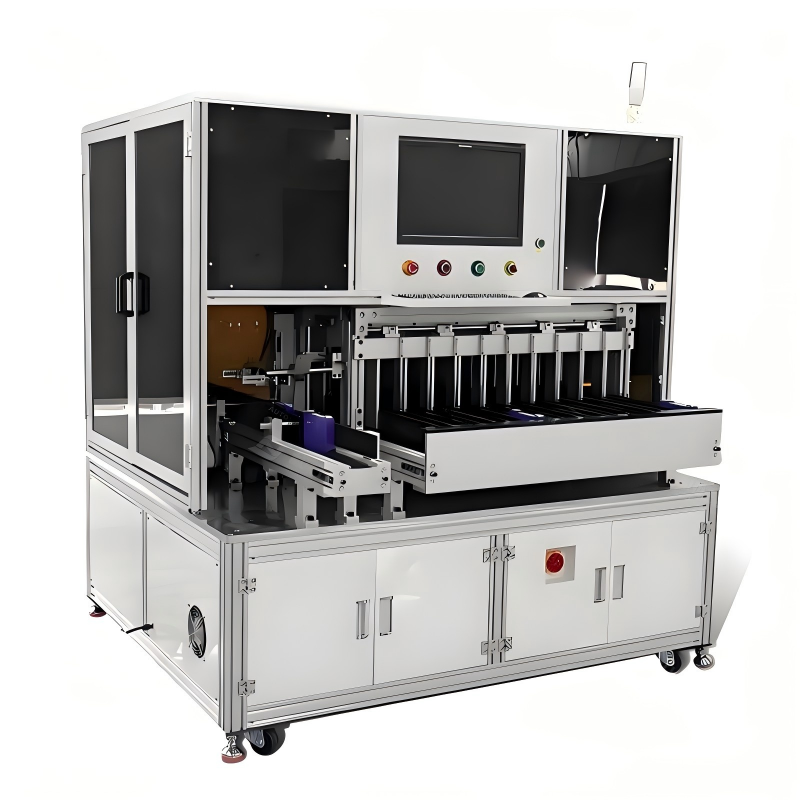

Atomfair Battery Sorting Machine

Product Model

Atomfair-SRT-529

Release Date

2024-09-05

Version

V2.0

Dimensions & Weight

• Dimensions: 1700 × 1600 × 1600 mm
• Weight: 300 kg

---

Product Overview

Integrates machinery, electronics and intelligent control. Performs automatic voltage and internal resistance testing, with grouping and sorting functions for battery classification.

Key Features

• Automatic testing with high-precision sensors for voltage, internal resistance and capacity
• High-efficiency automatic sorting into different grades
• Intelligent HMI for easy operation and parameter setting
• Wide adaptability for various battery types and sizes

Technical Specifications

• Efficiency: ≥8 PPM
• Utilization rate: ≥95%
• Qualified rate: ≥99%
• Total power: 2.5 kW
• Power supply: 3-phase 380V 50Hz, voltage fluctuation ±10%
• Compressed air: ≥0.6 MPa, flow >20 m³/h
• Load capacity: >500 kg/m²
• Installation: Clean room environment

If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
