Description

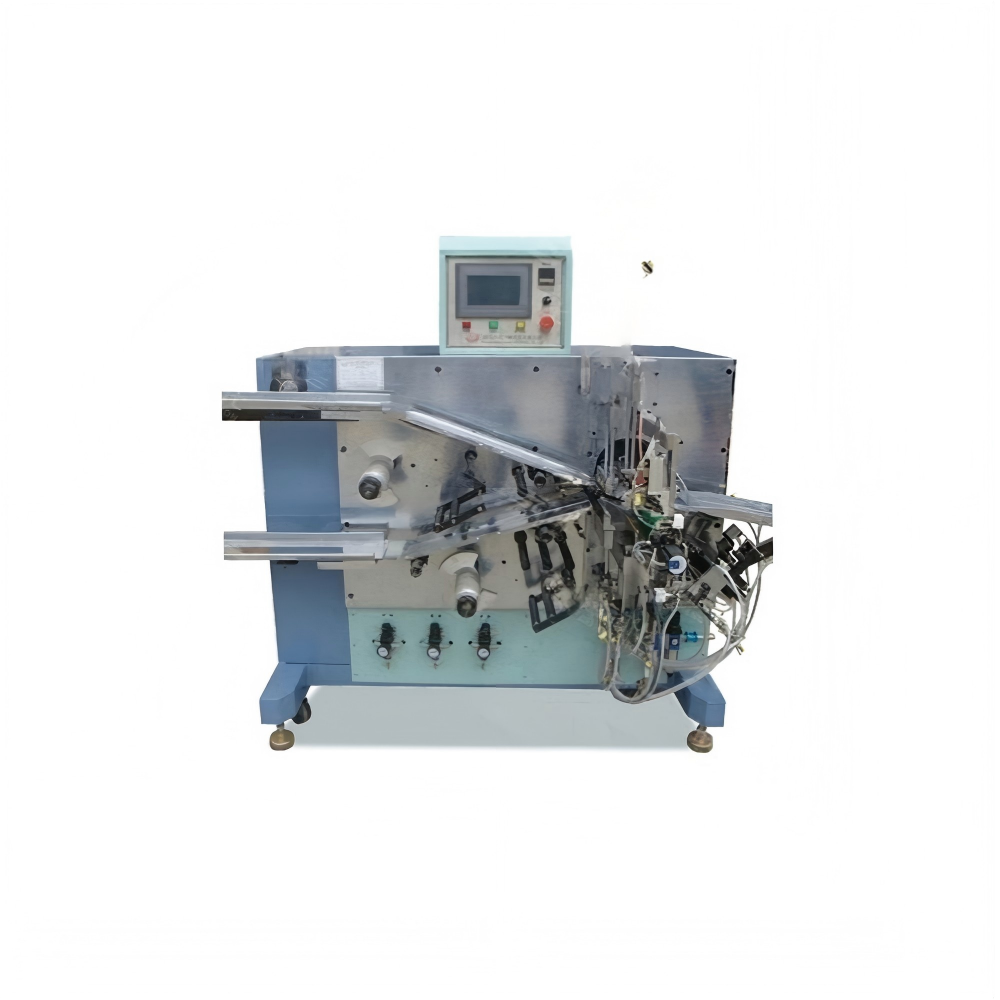

Atomfair Semi-Automatic Pouch Cell Winding Machine

Product Information

Model: Atomfair-SAPW-724

Release Date: January 27, 2024

Version: V2.0

Dimensions: L1100mm × W700mm × H900mm

Weight: 450KG

Application

This machine is designed for the winding process of prismatic / pouch lithium-ion batteries.

Product Description

The machine adopts roll-type separator feeding and sheet-type electrode loading. Manual electrode placement, automatic film pulling, pin insertion and winding. It features trapezoidal interlocking winding needles, compact structure, easy operation, high winding uniformity and wide size compatibility.

Key Features

• Single vertical plate structure, roll separator feeding, passive tension control with adjustable tension.
• Higher efficiency and better winding uniformity than manual winders, suitable for R&D labs.
• Sheet electrode feeding with guide plate, manual feeding, vacuum-assisted electrode holding during winding.
• Wide cell size compatibility: length adjustable within 30–100mm, width adjustable within 10mm.
• PLC control with touch screen, full parameter setting, automatic step cycle and step-back function.
• Trapezoidal interlocking winding needles, automatic retraction, adjustable winding speed.
• Optional automatic tape applicator for auxiliary tape pasting.

Technical Parameters

• Winding type: Roll separator & sheet electrode
• Cell size: Width 30–80mm, Length 30–100mm, Thickness max. 10mm
• Winding precision: ≤ 0.5mm
• Guide slot length: 1200mm
• Separator cutting: Automatic cutting
• Winding needle: Trapezoidal interlocking type, standard width 60mm
• Winding speed: Max 300 r/min (adjustable via touch screen)
• Max separator roll diameter: 250mm
• Power supply: Single-phase AC220V±10%, 1KW
• Air pressure: 0.5–0.8 MPa
