Description

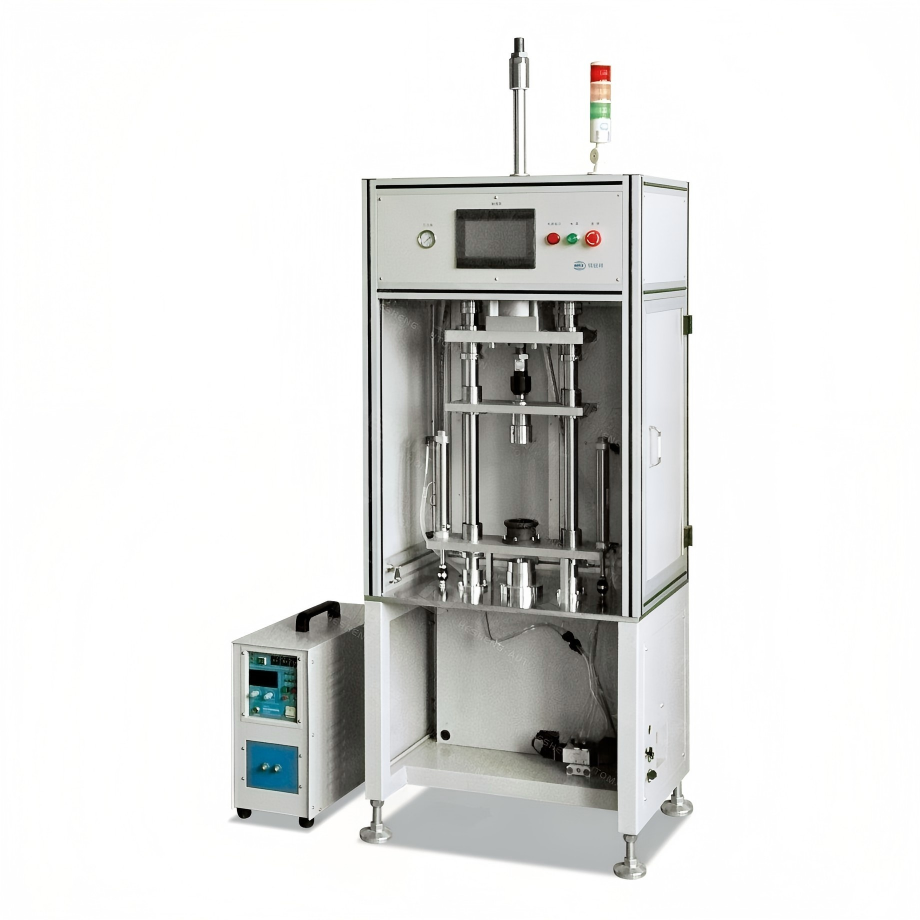

Atomfair Semi-Automatic Cell Case Loading Machine

Product Model

Atomfair-SCL-637

Release Date

2024-09-05

Version

V2.0

Dimensions & Weight

• Dimensions: 800 × 600 × 1600 mm (L×W×H)
• Weight: 500 kg

---

Product Overview

Patented semi-automatic equipment designed for loading welded battery and supercapacitor cells into casings, with customizable adaptation for different products.

Key Features

• Precision mold design ensures accurate cell loading into casings
• Optional bottom case heating function
• High-precision guide pillars and bushings for stable loading dimensions
• Adjustable supercapacitor height to fit different product sizes
• Stepless adjustable loading speed
• PLC control with HMI display, easy to integrate into automation systems
• Light curtain electronic protection for safe and reliable operation
• Elegant aluminum profile housing, user-friendly operation

Technical Specifications

• Applicable Products: Cylindrical batteries, supercapacitors (customizable per customer requirements)
• Air Supply: 0.5-0.7 MPa (adjustable)
• Power Supply: 220V/50Hz
• Total Power: 0.5 kW
• Dimensions: 800mm (L) × 600mm (W) × 1600mm (H)
• Weight: 500 kg

If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
