Description

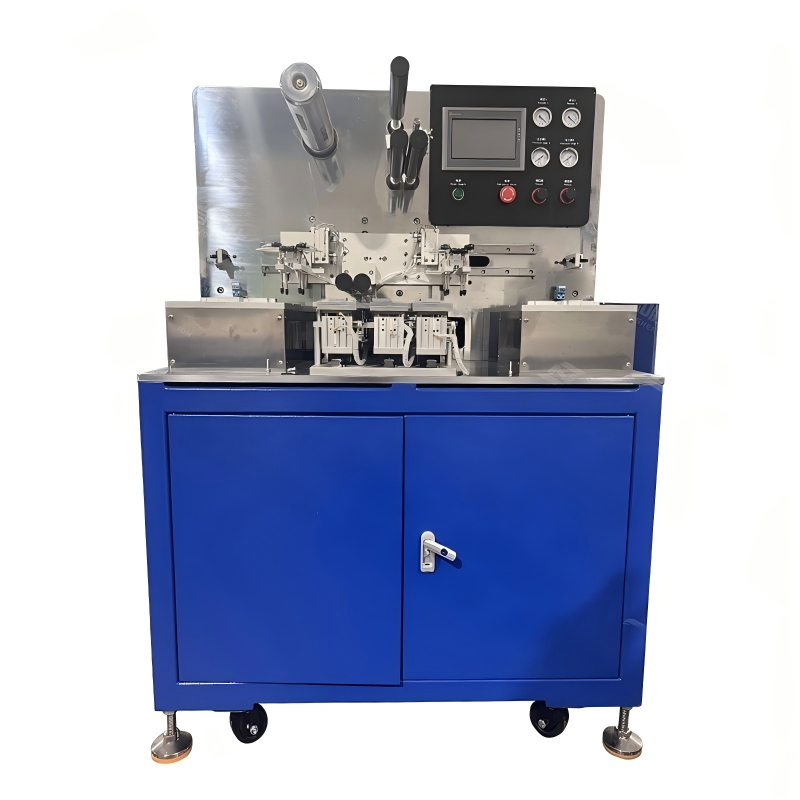

Atomfair Semi-Automatic Z-type Stacking Machine

Product Information

Model: Atomfair-SAZS-417

Release Date: June 04, 2022

Application

This machine is mainly used for Z-type lamination assembly of positive & negative electrodes and separator for lithium-ion battery cells.

Equipment Specifications

• Dimensions: L1400mm × W980mm × H1400mm
• Weight: 650KG
• Version: V2.0

---

Product Description

The machine adopts manual electrode loading, with fully automatic electrode positioning and lamination process. It features high efficiency and high lamination precision.

The maximum stackable cell size is L100mm × W100mm × H20mm. Different sizes can be adapted by adjusting fixtures, making it ideal for R&D and sample production of laminated lithium-ion batteries.

It adopts a single cantilever structure, with automatic constant tension control and automatic deviation correction for separator rolls.

---

Key Features

• Lamination layers can be automatically controlled according to preset values.
• High compatibility: cell size can be adjusted via positioning fixtures with a wide adjustment range.
• Electrodes are positioned by custom fixtures to ensure high lamination accuracy.
• PLC control with HMI operation for easy use and maintenance.
• Lamination table driven by servo lifting motor to ensure consistent flat height for each lamination.
• Automatic separator cutting function.
• Automatic servo constant tension control for separator rolls.
• Automatic photoelectric deviation correction for separator.
• Manual electrode loading, automatic positioning, automatic pickup by manipulator, automatic lamination.
• Manual cell removal and tape application after lamination.

---

Technical Parameters

• Lamination Type: Z-type lamination
• Operation Mode: Manual feeding, manipulator pickup & lamination, automatic separator pulling
• Lamination Precision: Alignment ≤ ±0.3mm
• Lamination Size Range: Min. L40mm × W40mm; Max. L100mm × W100mm (not including tabs)
• Max. Lamination Thickness: 20mm
• Max. Lamination Layers: 100 (adjustable)
• Max. Separator Roll Diameter: 250mm
• Separator Core: 3-inch core with air expansion shaft
• Separator Control: Automatic servo constant tension + automatic photoelectric deviation correction
• Power Supply: Single-phase AC220V±10% (110VAC customizable), 50Hz/60Hz, 2KW
