Description

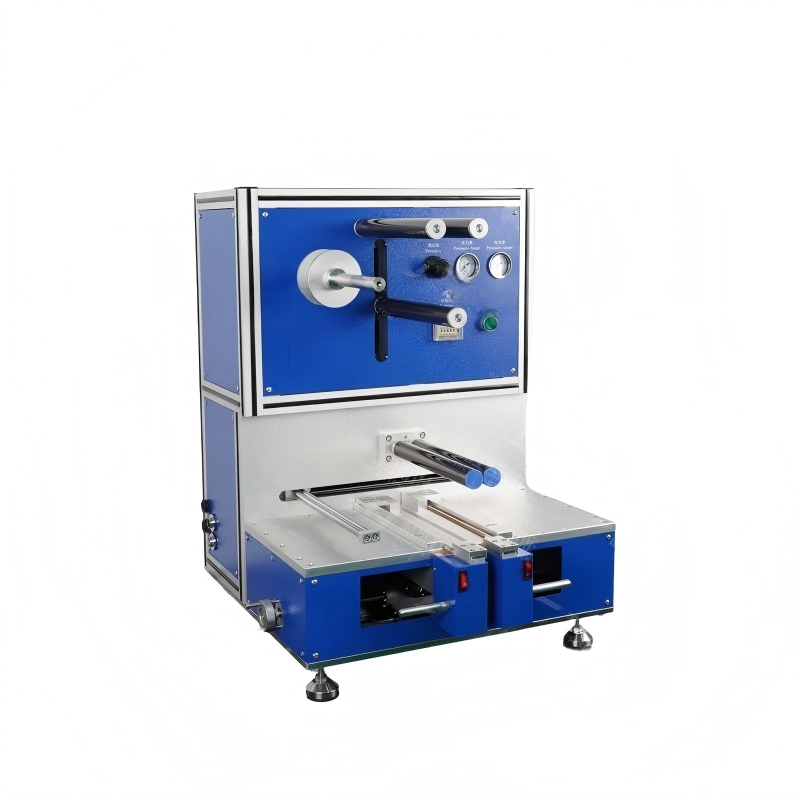

Atomfair Semi-Automatic Laminator Product Information

Product Information

• Model: Atomfair-SAL-672
• Release Date: January 27, 2024
• Version: V2.0
• Dimensions: L512mm ? W820mm ? H580mm
• Weight: Approximately 50KG

Application

Applicable to the lamination process of battery cells, it performs Z-shaped lamination of positive and negative electrodes with separators, and is a device suitable for the lamination process of lithium-ion battery electrodes.

Product Description

Applicable to the lamination process of battery cells, it performs Z-shaped lamination of positive and negative electrodes with separators, and is suitable for the lamination process of lithium-ion battery electrodes. The device adopts an automatic tension control system for the separator, and the cylinder drives the separator to move left and right to realize Z-shaped lamination. The cantilever design is convenient for operation. Compared with manual laminators, this device has the characteristics of high lamination efficiency, good lamination neatness and wide applicable battery size range, making it an ideal choice for R&D sample production and small-batch trial production equipment.

Key Features

• Simple and easy machine calibration, operation and maintenance
• Wide range of applicable battery cell lamination sizes
• Semi-automatic lamination with constant tension control system
• Automatic counting and zero reset functions
• Automatically retains the last used parameter state after power failure or non-use
• Foot switch controls cylinder action
• High work efficiency with digital timer
• Desktop type, can be placed on ordinary desktops, with exquisite and beautiful appearance

Technical Parameters

• Lamination Precision: ±0.5mm
• Lamination Size: Min. L44mm ? W44mm (smaller size requires changing the pressure plate); Max. L200mm ? W150mm (tab on the long side, including tab length)
• Lamination Thickness: Max. 12mm (thicker size requires changing the adjustment plate)
• Separator Roll Diameter: Max. 220mm
• Installation Dimensions: L512mm ? W820mm ? H580mm
• Weight: Approximately 50KG
• Power Supply: 220VAC
• Air Source: 0.4-0.6MPa compressed air

If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
