Description

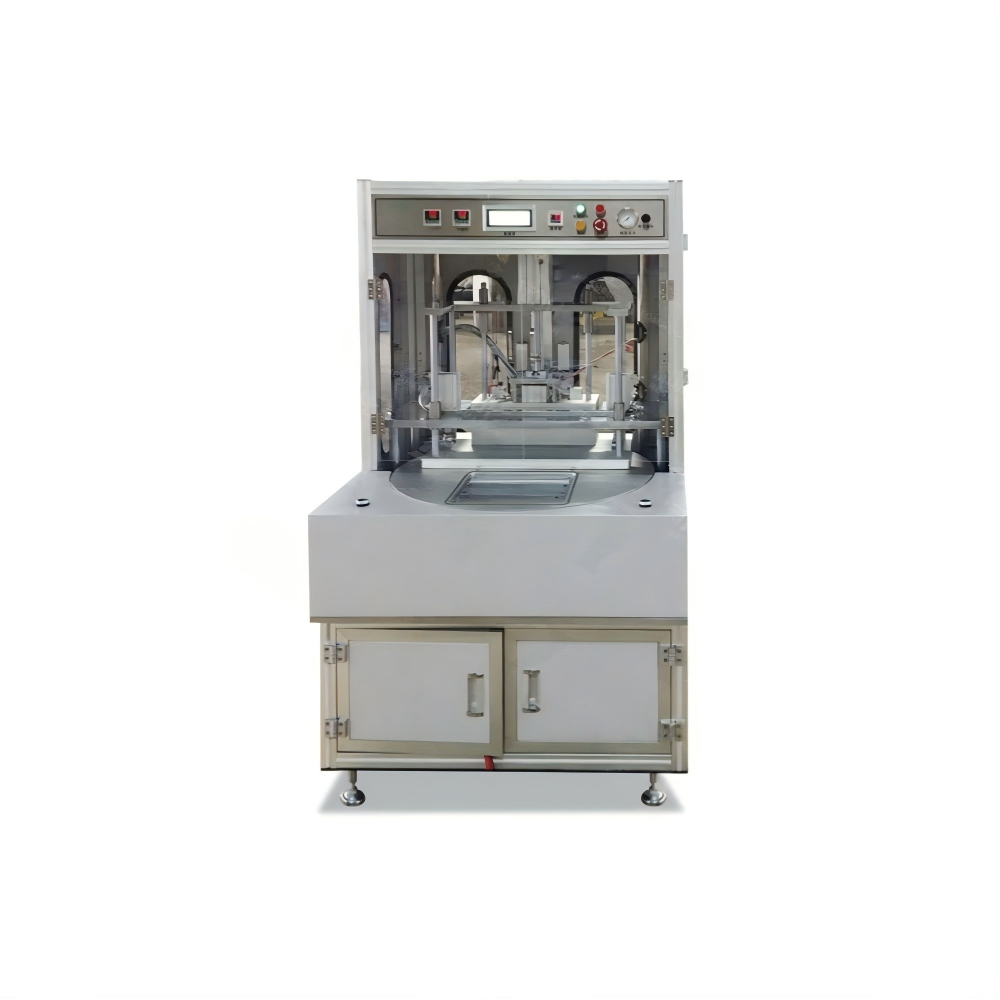

Atomfair Rotary Secondary Sealing Machine for Pouch Cells

Model: Atomfair?RSS218
Launch Date: 2022?03?01
Version: V2.0
Dimensions: 450 ? 550 ? 1450 mm
Weight: Approx. 300KG

Application Scope

This machine is specially designed for secondary (final) sealing of lithium-ion pouch batteries.

Product Description

It is dedicated to secondary/final sealing of lithium-ion pouch batteries, with electrolyte recovery, high-precision temperature control and pressure detection functions to ensure consistent sealing quality.

Key Features

• Equipped with electrolyte separation mechanism to recover excess electrolyte
• Imported double-pole heat insulation blocks with excellent heat insulation, no breakage or parallelism deformation
• Pressure detection system: machine does not start if pressure, vacuum or temperature do not meet set values
• Adjustable upper/lower sealing head pressure via pressure regulating valve for different process requirements
• Cylinder-driven heads with double linear guide bushes for flexible movement and precise alignment
• Compatible with various battery sizes, easy to adjust
• All electrolyte-contacting parts are anti-corrosion treated for long-term stable operation
• Profile + panel frame structure, compact and elegant appearance

Technical Parameters

Item	Specification
Suitable Battery Size	? 200 ? 200 ? 8 mm (including air bag)
Sealing Head Length	? 200 mm
Sealing Width	4?8 mm (customizable per customer request)
Sealing Thickness	0.14?0.3 mm (depending on aluminum-plastic film thickness)
Sealing Head Temperature	Room temp ? 230? adjustable, control accuracy ±2?
Chamber Vacuum Level	Up to -0.095 MPa
Sealing Time	0?99.9 seconds adjustable
Head Parallelism	±0.01 mm
Equipment Operation Rate	95%
Product Qualification Rate	99%
Power Supply	220V/50Hz
Air Pressure	0.5?0.7 MPa
Dimensions	450 ? 550 ? 1450 mm
Weight	Approx. 300 KG

If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
