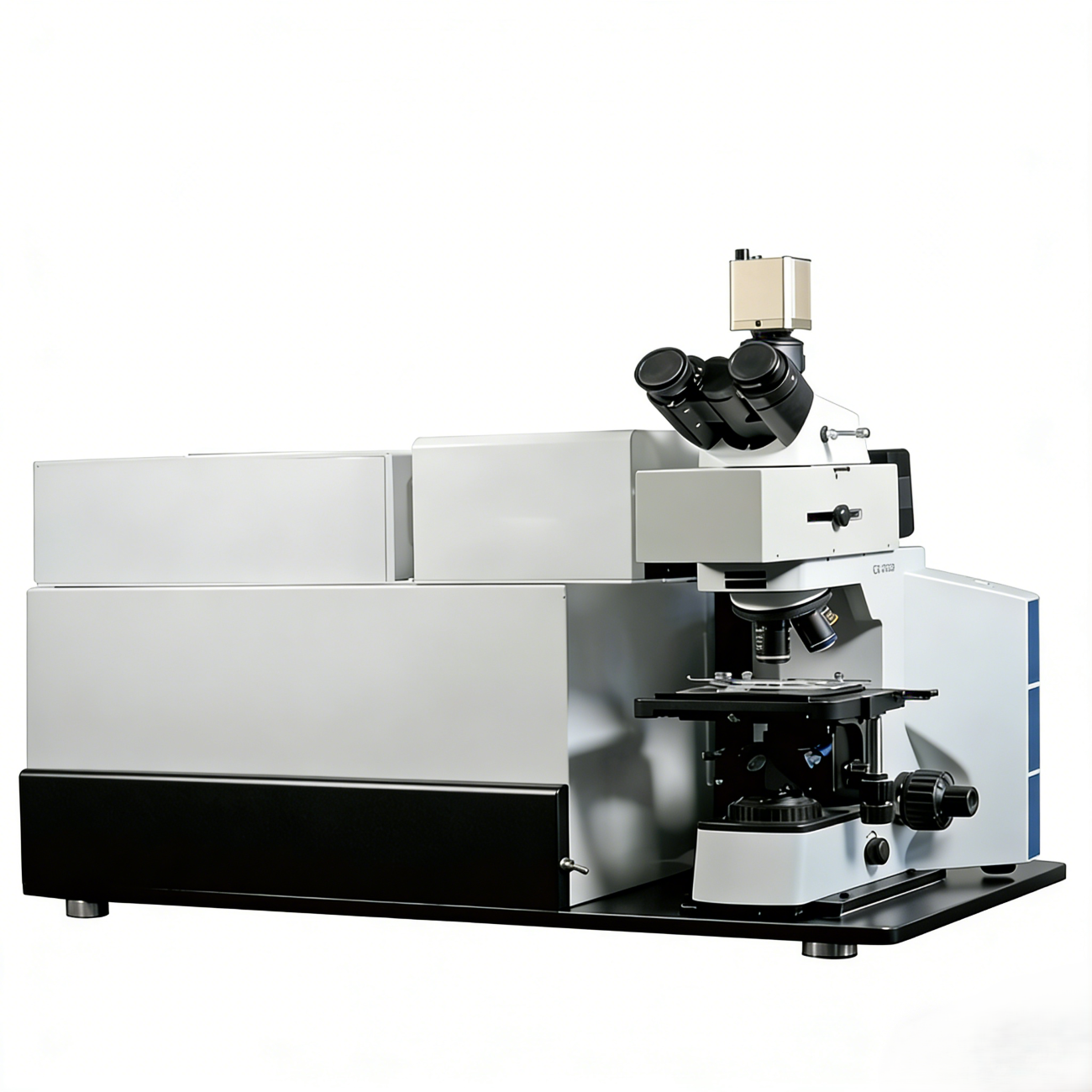

Atomfair-RMS-739 Micro Raman Spectrometer
Product Overview
The Atomfair-RMS-739 is a versatile confocal micro-Raman spectrometer built on a modular design concept and equipped with an advanced optical system. It achieves high performance while maintaining excellent cost-effectiveness, making it widely applicable in various fields such as university teaching, basic scientific research, enterprise testing and R&D, and environmental protection.
Key Features
- Visual operation and control: Intuitive and user-friendly, reducing the learning curve for operators.
- Micro-sample compatibility: Capable of analyzing samples with small dimensions, adapting to diverse application scenarios.
- Low wavenumber detection: Expands the detection range to meet more specialized analytical needs.
- Dual detection modes: Flexible selection between wavelength and wavenumber detection, catering to different testing requirements.
- Polarization performance analysis: Enables the detection of Raman spectrum polarization, ensuring comprehensive and accurate test results.
Core Technical Specifications
1. Monochromator
- Focal Length: 300mm
- Grating: 1200 lines/mm
- Wavelength Range: 200~800nm
- Slit: 0~2mm Continuously Adjustable
- Wavelength Accuracy: ≤0.2nm
- Repeatability: ≤0.2nm
2. Laser
- Excitation Wavelength: 532nm
- Output Power: 100mW
3. Microscope Optical System
- Equipped with an infinite chromatic aberration correction system, with a minimum measurement diameter of 2μm.
- Eyepiece: High-eyepoint wide-field flat-field eyepiece PL10x/22mm, compatible with a micrometer.
- Objective Lenses: Infinite flat-field semi-apochromatic fluorescence objectives (10x, 50x, 100x).
- Revolver: Internal positioning five-hole revolver.
- Focusing Mechanism: Coaxial coarse and fine adjustment with a low-hand position design. Coarse adjustment stroke: 30mm; Fine adjustment precision: 0.002mm. Equipped with a tightness adjustment device, upper limit stop device, and height-adjustable stage bracket set.
- Stage: 150mm×162mm double-layer composite mechanical platform. Movement range: 76mm×50mm; Precision: 0.1mm. Adopts X-axis single linear rail transmission, with a ceramic-painted upper platform.
- Illumination System: Adaptive 100V~240V wide voltage input. Features a reflective lamp house, a single high-power 5W high-brightness LED lamp, Kohler illumination, pre-centered function, and continuously adjustable light intensity.
- Camera: Ultra-high definition 16-megapixel, capturing sample details clearly.
Applications & Target Users
Ideal for:
- University laboratories (teaching and basic research)
- Industrial R&D and quality control departments
- Environmental monitoring institutions
Typical users include Shanghai Chaoqun Non-Destructive Testing Equipment Co., Ltd., Yuncheng University, Sino-German Institute of Intelligent Manufacturing at Shenzhen Technology University, Datong University, Hebei University of Technology, Tai’an County Modern Agricultural Industrial Park Administration Committee, and Guojiantong (Jiangsu) Artwork Co., Ltd.
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
