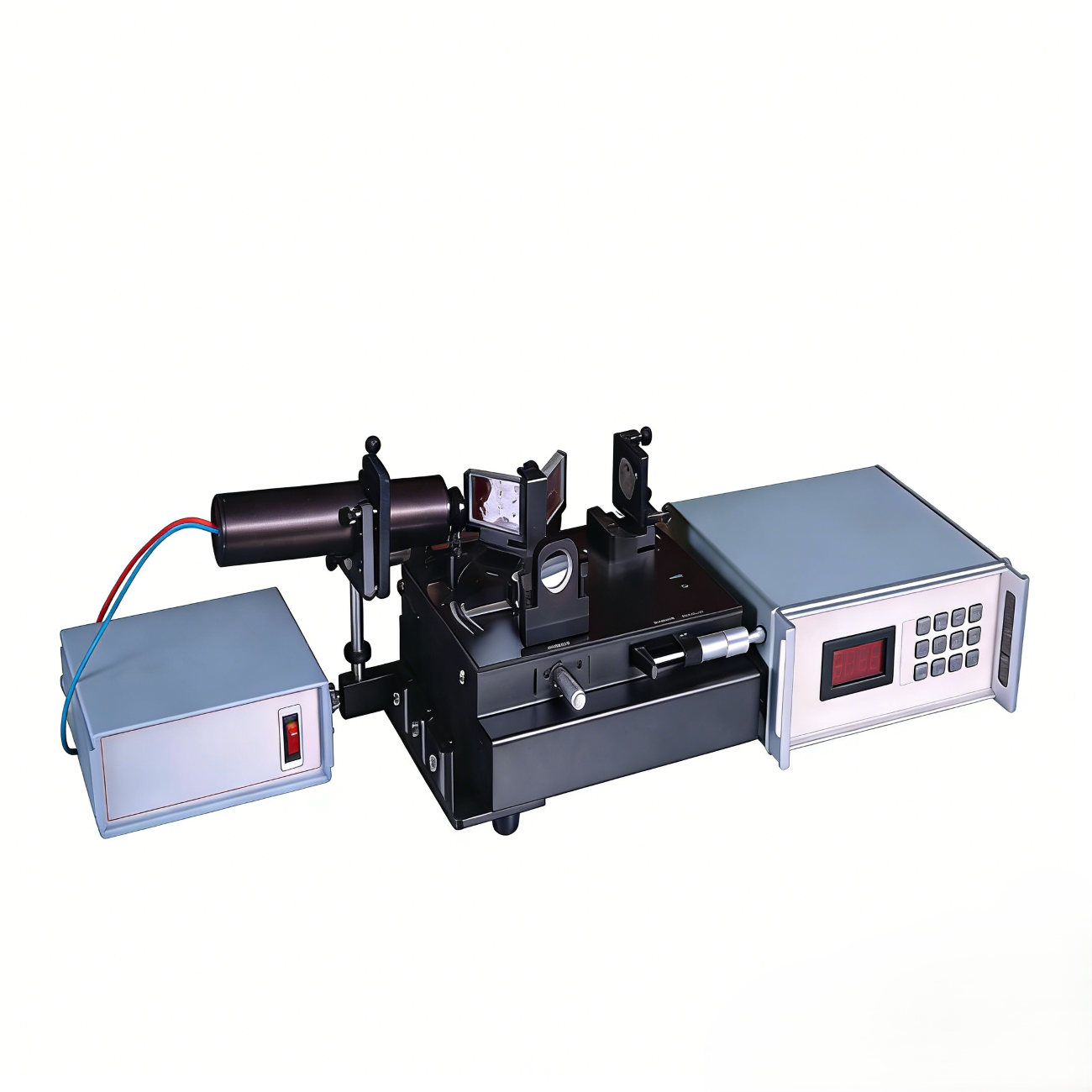

Atomfair-PZT-261 Piezoelectric Ceramic Characteristics Research Experimental Instrument
Product Overview
Atomfair-PZT-261 is an advanced experimental instrument built on the Michelson interferometer platform, integrating cutting-edge laser interferometry technology. It is specifically designed for precise observation and in-depth research of the piezoelectric effects of piezoelectric ceramics. Beyond enabling users to obtain accurate distribution data of interference light intensity, this instrument serves as an excellent tool for mastering the core principles of Michelson interferometry. It also facilitates proficiency in understanding the fundamental characteristics of piezoelectric ceramics and mastering high-precision measurement methods for micro-displacements. Widely applicable in academic research, laboratory experiments, and technical training within relevant fields, it provides reliable support for both theoretical exploration and practical operation.
Key Specifications & International Standard Parameters
| Quantity | Name | Specification Details |
|---|---|---|
| 1 | Light Source | He-Ne Laser with a wavelength of 632.8nm and power of 1.5mW; equipped with a beam splitter and a compensation plate, with flatness ≤ 1/20λ (λ refers to the laser wavelength) |
| 1 | Experimental Instrument Main Unit | Micromotion measurement division value: equivalent to 0.0005 mm; moving mirror travel range: 1.25mm; wavelength measurement accuracy: when the fringe count is 100, the relative error is ＜ 2% |
| 1 | Piezoelectric Ceramic & Drive Cabinet | Drive voltage range: 10V ~ 150V (compliant with international universal voltage adaptation standards) |
| – | Other Supporting Accessories | Ground glass, beam expander, laser fixing bracket, dual-screen observation device |
Product Applications
Academic Research: Ideal for researchers in materials science, optics, and related fields to conduct in-depth studies on the piezoelectric properties of piezoelectric ceramics, providing accurate experimental data for scientific research projects.
Laboratory Teaching: Suitable for universities, technical colleges, and research institutions to carry out experimental teaching activities. It helps students deepen their understanding of Michelson interferometry principles, piezoelectric effects, and micro-displacement measurement technologies, improving their practical operational capabilities.
Technical Development & Testing: Can be used in the R&D and testing processes of piezoelectric ceramic-related products, assisting enterprises and research institutions in evaluating product performance and optimizing product design.
Important Notes
The above configurations and parameters are for reference only. The final specifications shall be subject to the product packing list.
In case of minor adjustments to product configurations, they will be implemented in accordance with industry practices without separate notice.
All core technical indicators of the product comply with international general experimental instrument standards, ensuring high measurement accuracy and operational safety.
