Description

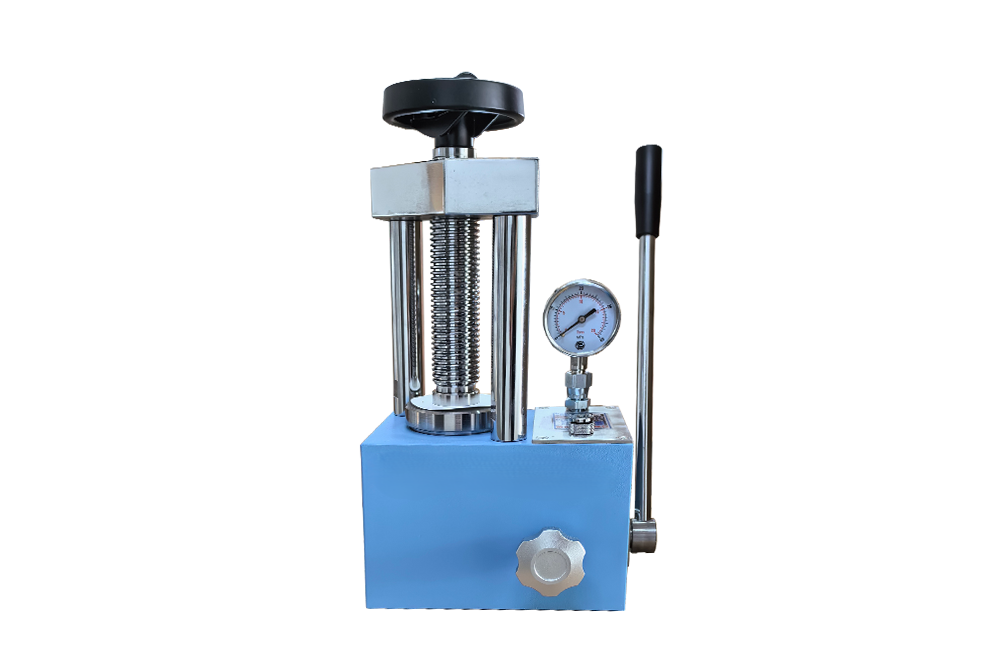

Atomfair PTP-395 Powder Tablet Press
Product Category
Infrared Sample Preparation Accessories, Tablet Press Series
Core Features
- 2-column & integrated main board structure with non-sealed connection design, greatly reducing oil leakage
- Compact size & light weight for easy carrying, can be flexibly placed in glove box for use
- Optional digital pressure gauge is available to meet precise pressure monitoring needs for diverse working scenarios
- Simple and stable structure with low maintenance cost & easy operation, combining practicality and portability
Specifications & Parameters
| Parameter Name | Specification Details |
|---|---|
| Pressure Range | 0−15 Ton |
| Piston Diameter | φ70mm |
| Piston Stroke | 30mm |
| Number of Columns | 2 |
| Column Spacing | 96×130mm |
| Overall Dimension | 225×155×380mm |
| Equipment Weight | 28kg |
Application Scenarios
Specialized in miniaturized & portable powder tablet pressing, applicable to scientific research laboratories, glove box dedicated scenarios, small material testing institutions, providing portable, reliable and low-fault tablet pressing solutions for infrared detection and fine powder sample analysis.
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
