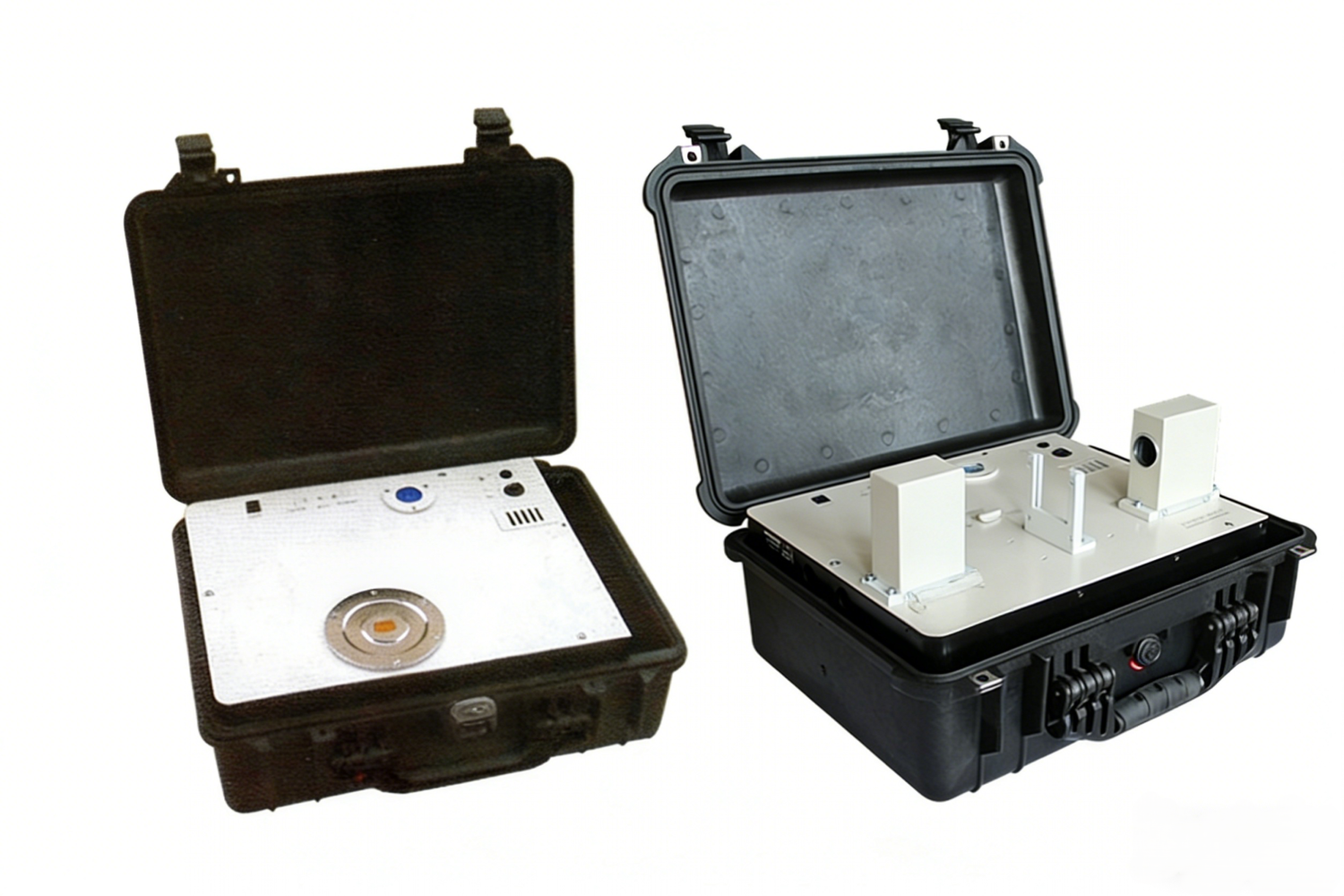

Atomfair-PFTIR-729 Portable Fourier Transform Infrared Spectrophotometer
1. Product Overview
Atomfair-PFTIR-729 is a compact and portable Fourier transform infrared spectrophotometer with small size and light weight. It is specially designed for off-lab scenarios and can be configured as equipment for field mobile testing stations, providing convenient and reliable test solutions for on-site detection scenarios such as asphalt testing.
2. Core Features
- High portability: Overall dimension is only 490*390*190mm with a weight of just 18kg, easy to carry and suitable for mobile testing needs outside the laboratory.
- Flexible usage options: Adopt open sample chamber design, support transmission test, attenuated total reflection (ATR) test, specular reflection test and other test methods; special ATR accessories are also available for selection to meet diverse testing requirements.
3. Specification Parameters
| Item | Detailed Parameters |
|---|---|
| Spectral Range | 7800-375cm⁻¹ |
| Resolution | 1.0cm⁻¹ |
| Beam Splitter | Imported original multi-layer germanium-plated KBr with moisture-proof coating |
| Wave Number Accuracy | 0.01cm⁻¹ |
| Working Mode | Transmittance, Absorbance, Energy |
| Overall Dimension | 490*390*190mm |
| Weight | 18kg |
| Working Voltage | AC220V DC12V 40W |
| Ambient Temperature | 15-28℃ |
| Baseline Flatness | ≤0.1%T |
| Signal-to-Noise Ratio | 15,000:1 (RMS value, near 2100cm⁻¹, 4cm⁻¹ resolution, 1-minute data acquisition) |
| Beam Diameter | 5mm |
| Transmittance Repeatability | 0.5%T |
| Interferometer | Automatic calibration |
| Sample Chamber | Open type |
| Communication Interface | USB |
| Operating System | Compatible with WIN7 & WIN10 systems |
| Relative Humidity | <65% (No condensation) |
4. Typical Applications
- Off-lab testing and field mobile testing station configuration
- Asphalt detection
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
