Atomfair Planetary Ball Mill Product Information
Product Introduction

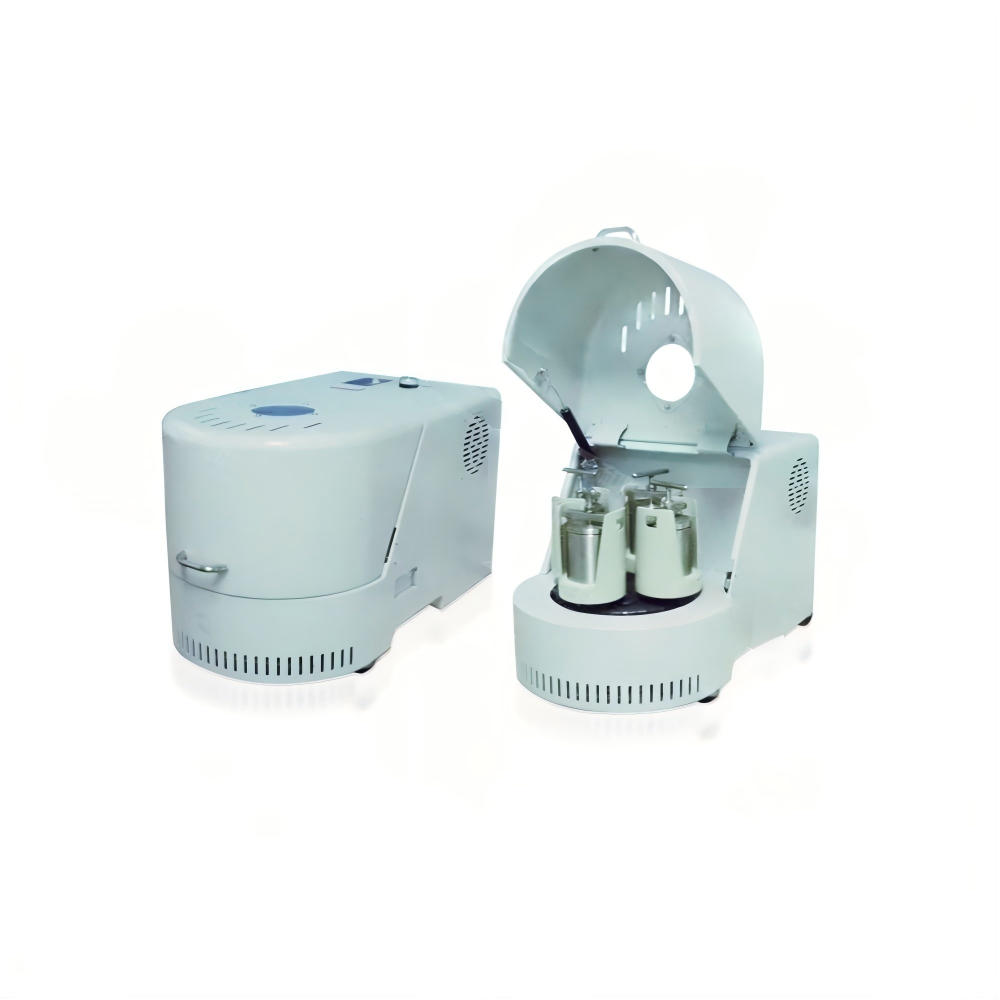

Atomfair Planetary Ball Mill (Model: Atomfair-PBM-6825) is an essential equipment for mixing, fine grinding, sample preparation, nanomaterial dispersion, new product development and small-batch production of high-tech materials. It is widely suitable for the experimental and small-batch production needs of various high-tech materials, with convenient operation and stable performance.
Functional Features
- The grinding jar adopts planetary motion design, with high grinding efficiency, which can obtain finer material particle size to meet different fine grinding needs;
- Equipped with a frequency conversion control system, the ideal rotating speed can be flexibly selected according to the test results to adapt to various material grinding scenarios;
- The frequency converter has built-in undervoltage and overcurrent double protection functions, which can effectively protect the motor and extend the service life of the equipment;
- The whole equipment is integrated design, with timing shutdown and automatic timing forward & reverse rotation functions. It can freely choose multiple operation modes such as one-way, alternating, continuous, timing and untimed, which greatly improves the grinding efficiency and grinding uniformity.
Technical Parameters
| Parameter Category | Specific Specifications |
|---|---|
| Grinding Jar Specification | 100mL, 250mL, 500mL |
| Grinding Jar Material | Stainless Steel, Nylon, Corundum Ceramic, Zirconia, etc. |
| Grinding Medium Material | Stainless Steel, Agate, Nylon, Corundum Ceramic, Zirconia, etc. |
| Maximum Loading Capacity per Jar | The total volume of materials and grinding media shall not exceed 2/3 of the grinding jar volume |
| Feed Particle Size | Brittle materials < 10mm, other materials < 3mm |
| Product Particle Size | Minimum up to 0.1μm |
| Rotating Speed | Revolution maximum 0–400r/min, rotation 0–800r/min |
| Speed Ratio (Revolution : Rotation) | 1:2 |
| Speed Regulation Method | Brand frequency converter stepless speed regulation, speed accuracy 0.2r/min |
| Working Method | Two or four grinding jars work simultaneously |
| Maximum Continuous Working Time | 72h (Timer adjustment range 0–9999h) |
| Working Voltage | 220V |
| Motor Power & Frequency Conversion Power | 0.75kw |
| Overall Dimensions | 450×700×550mm |
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
