Atomfair PIO 562 Portable Infrared Photometric Oil Analyzer
Product Overview

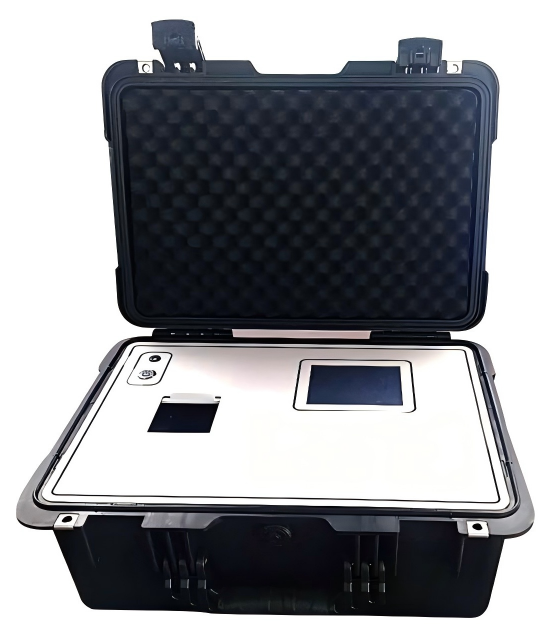

Atomfair PIO 562 Portable Infrared Photometric Oil Analyzer is compact in size and light in weight, with a detachable integrated optical path design for easy carrying. The instrument meets the requirements of infrared spectral characteristics with excellent stability and high signal-to-noise ratio. It is widely used for the determination of petroleum, animal & vegetable oils in industrial wastewater and domestic sewage, providing reliable detection support for on-site and laboratory scenarios.
Core Product Features
- Strong portability: Equipped with an exclusive safety protection case, easy to carry and flexible to operate, which can be easily adapted to mobile work scenarios such as field operations.
- Efficient optical & electrical system: Adopt pulse light source to effectively reduce the heating intensity of the light source, facilitate system heat dissipation, and improve the reliability of the instrument and the service life of components; pre-integrated narrow-band active filter and digital phase-locked amplifier significantly improve the signal-to-noise ratio and make the instrument performance more stable.
- Real-time automatic zero adjustment: The instrument collects signals separately when the light source flashes on and off to realize real-time automatic zero adjustment, simplify the operation process and ensure the stability of the instrument’s long-term operation.
- Long continuous measurement time: Equipped with high-power battery, the continuous measurement time can exceed 8 hours, and it supports connecting to automobile power supply, making on-site measurement more convenient and efficient.
- Compatible with multiple extractants: It can be compatible with various extractants such as tetrachloroethylene, carbon tetrachloride, S316, trichlorotrifluoroethane, suitable for different detection needs.
- Easy operation: Adopt large touch screen design with menu operation, support both stand-alone independent use and computer connection for collaborative work, lowering the operation threshold.
Technical Parameters
| Technical Index | Specific Parameter |
|---|---|
| Wavenumber scanning range | 3400cm⁻¹-2400cm⁻¹ (2.5－4.0µm) |
| Wavenumber accuracy | ±1cm⁻¹ |
| Wavenumber repeatability | ±1cm⁻¹ |
| Spectral resolution | 1cm⁻¹ |
| Measurement repeatability | <3％ |
| Measurement accuracy | ±3％ |
| Absorbance linear range | 0.0000～1.9999AU |
| Correlation coefficient | r>0.999 (Infrared non-dispersive method) |
| Measurement range | 0.02～8000mg/L (Direct measurement without dilution) |
| Detection limit (3SD) | <0.2mg/L (Solution concentration) |
| Overall dimension | 390×370×240mm |
| Weight | 19kg |
| Power supply | DC 12V 10Ah lithium battery, AC 220V±10% |
| Working humidity | <80％ |
| Working temperature | 5-35°C |
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
