Atomfair PCI 571 Piezoelectric Ceramic Interferometry Measurement Instrument
Product Overview
Atomfair PCI 571 Piezoelectric Ceramic Interferometry Measurement Instrument adopts Michelson interferometry to accurately measure the piezoelectric constant of piezoelectric ceramics and the frequency response characteristics of their vibration. The instrument adopts a new platform-type structural design, making adjustment and measurement operations more convenient. It is a core optical instrument for observing various optical interference phenomena and verifying relevant basic theories in physics experiments of institutions of higher education, suitable for physics teaching and engineering optics experiment scenarios.
Instrument Features
- Light Source: He-Ne laser with wavelength 632.8nm, power ≥1.5mW, single-mode TEM鈧€鈧€, equipped with fully protected safety high-voltage plug, cavity length 250mm.
- Piezoelectric Ceramics: Tubular structure with electrodes plated on inner and outer walls respectively for easy voltage application.
- Structure: New platform-type Michelson interferometer design, easy to add measured substances in the optical path; open space makes it easier to adjust equal-thickness interference, equal-inclination interference and various fringe changes, supporting precise measurement.
- Base: Cast iron base is used as the experimental platform to ensure stable and reliable experimental process and reduce external interference.
Main Experimental Contents
- Observe non-localized interference of point light source (standard He-Ne laser)
- Observe equal-inclination interference fringes (Low-pressure sodium lamp required)
- Observe equal-thickness interference fringes (Low-pressure sodium lamp required)
- Observe white light interference phenomena (White light source required)
- Determine the wavelength of light source or optical filter (standard He-Ne laser or additional low-pressure sodium lamp)
- Determine the wavelength difference of sodium yellow double lines (Low-pressure sodium lamp required)
- Measure the refractive index of transparent medium thin film (transparent medium thin film required)
- Measure the piezoelectric constant of piezoelectric ceramics, observe and study the frequency response characteristics of their vibration
- Optional Experiment: Measure the refractive index of transparent gas (glass gas cell required)
- Optional Experiment: Observe Fabry-Perot interference phenomena (Fabry-Perot etalon required)
Main Configurations

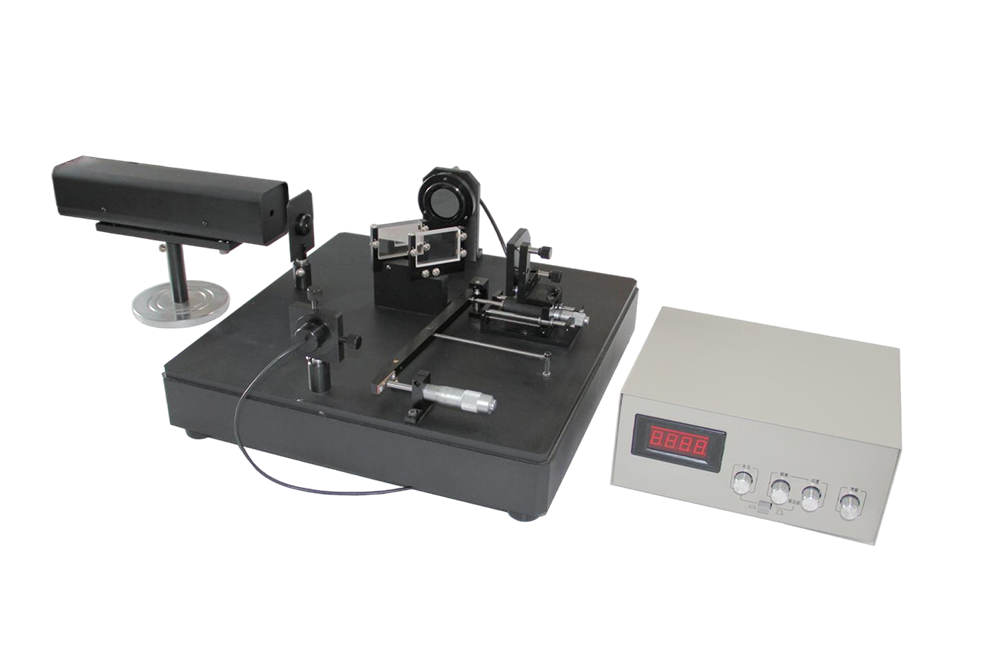

Atomfair PCI 571 Piezoelectric Ceramic Interferometry Measurement Instrument (main unit, ground glass screen, beam expander, one-dimensional base)
- Piezoelectric ceramic drive power supply
- Piezoelectric ceramic displacement unit
- Piezoelectric ceramic receiving unit
- GY-11 He-Ne Laser (with power supply)
Optional Accessories: GY-5 Low-Pressure Sodium Lamp, GY-14 White Light Source, Fabry-Perot Etalon, Gas Cell Module, etc.
Customization Service
Exclusive configuration parameters can be customized according to different experimental teaching or scientific research needs of customers.
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
