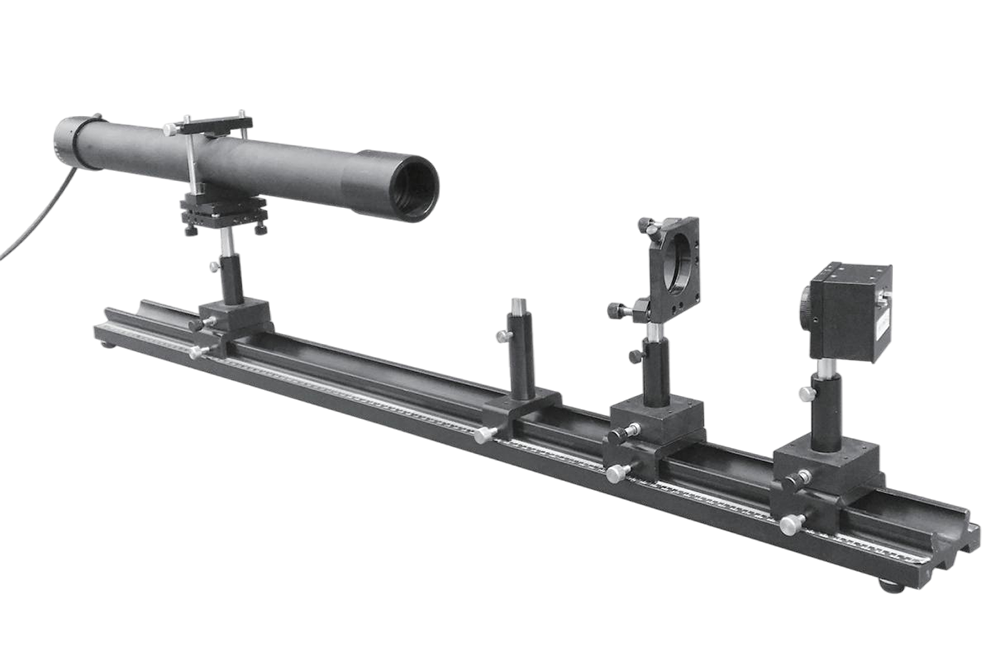

Atomfair OTFM-951 Optical System Transfer Function Measurement Experiment Instrument

聽聽聽
聽聽聽

1. Product Overview

聽聽聽

Atomfair OTFM-951 Optical System Transfer Function Measurement Experiment Instrument closely aligns with the core content of optoelectronic teaching. It is suitable for undergraduate experiments in optoelectronic majors, and can also be used as training equipment in higher vocational colleges and production inspection equipment in factories, with both teaching and industrial application value.

聽聽聽

2. Core Features

聽聽聽

聽聽聽聽聽聽聽
• Combines teaching and practicality, adapting to the needs of multiple scenarios including university experiments, higher vocational training and factory production inspection;

聽聽聽聽聽聽聽

• Experimental content focuses on core knowledge points, covering key methods for measuring optical system resolution and MTF values;

聽聽聽聽聽聽聽

• Operation conforms to the teaching logic of optoelectronic majors, helping students consolidate theoretical foundations and improve practical abilities.

聽聽聽

聽聽聽

3. Main Experimental Content

聽聽聽

聽聽聽聽聽聽聽
• Measure optical system resolution by direct reading method of resolution chart;

聽聽聽聽聽聽聽

• Measure MTF (Modulation Transfer Function) value of optical system using Ronchi grating;

聽聽聽聽聽聽聽

• Measure MTF (Modulation Transfer Function) value of optical system based on line spread function.

聽聽聽

聽聽聽

4. Core Knowledge Points

聽聽聽

聽聽聽聽聽聽聽
• Resolution of optical systems;

聽聽聽聽聽聽聽

• Modulation Transfer Function (MTF);

聽聽聽聽聽聽聽

• Line spread function;

聽聽聽聽聽聽聽

• International standard resolution chart.

聽聽聽

聽聽聽

5. Specification Parameters (International Standard)

聽聽聽

聽聽聽聽聽聽聽
• Measurement methods: Direct reading method of resolution chart, Ronchi grating method, line spread function method;

聽聽聽聽聽聽聽

• Adapted standards: Comply with international general technical specifications for optical system measurement;

聽聽聽聽聽聽聽

• Application adaptation: Compatible with university experimental teaching, higher vocational training and industrial production inspection scenarios;

聽聽聽聽聽聽聽

• Accuracy of core components: Meet the measurement accuracy requirements of teaching-level and industrial-level basic inspection.

聽聽聽

聽聽聽

6. Customization Services

聽聽聽

Exclusive configuration parameters can be customized according to different customers’ teaching needs, training standards or production inspection requirements.

聽聽聽

If you鈥檙e interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
