Atomfair OTFM-739 Optical Transfer Function Measurement and Image Quality Evaluation System
Product Overview

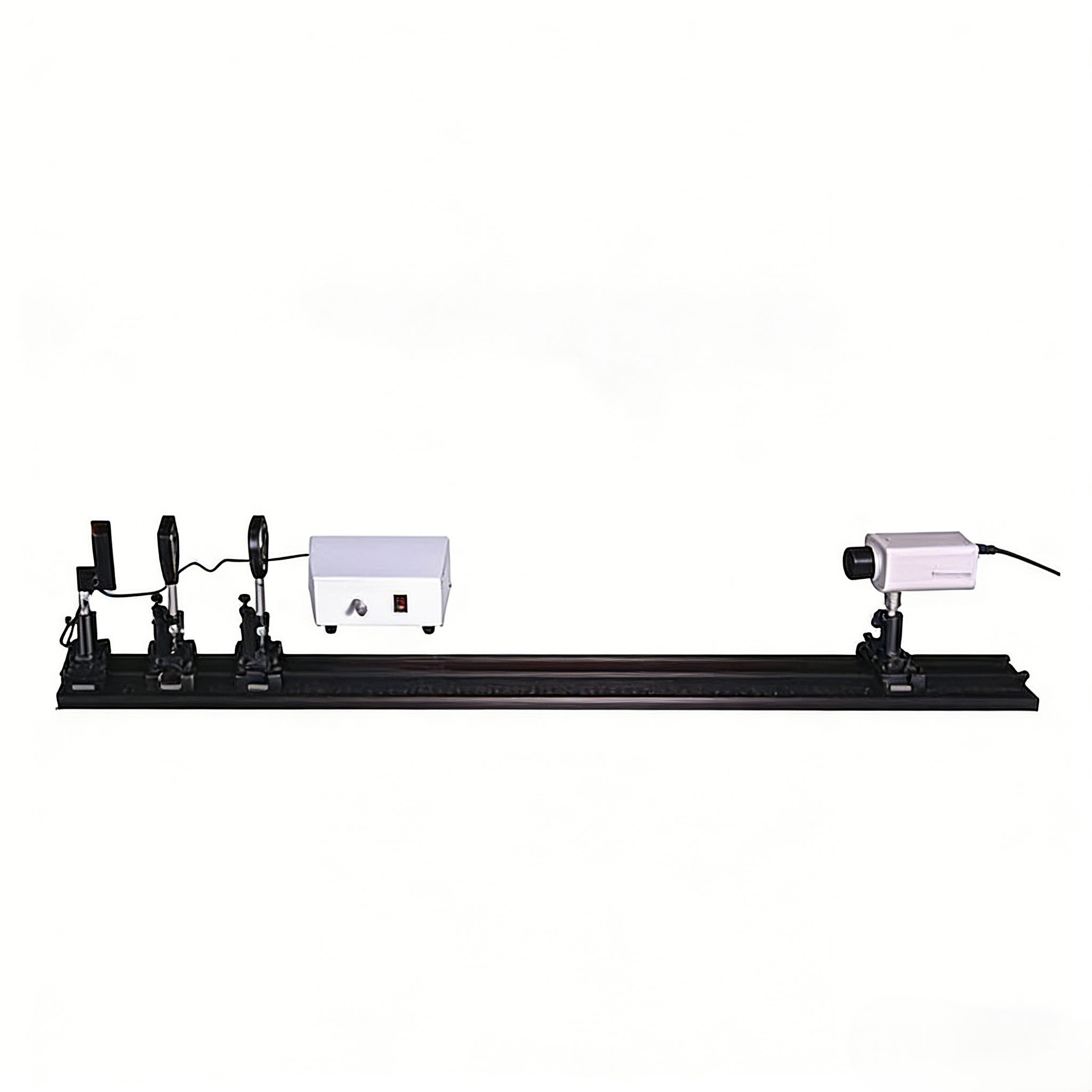

Atomfair OTFM-739 is an experimental equipment dedicated to optical transfer function (OTF) measurement and image quality evaluation, belonging to the field of Fourier information optics. This product is designed based on spectral analysis methods and linear system principles. It objectively and effectively characterizes the information transmission performance of optical systems by evaluating their ability to transfer targets of different spatial frequencies, making it an essential tool for optical design and optical inspection scenarios.
Key Experimental Objectives
- Deepen the understanding of the basic theories of optical transfer functions.
- Master the core principles of optical transfer function measurement.
- Learn the fundamental methods of transfer function measurement and image quality evaluation.
Standard Configuration & Specifications (Reference Only, Subject to Actual Packing List)
| No. | Name | Specifications |
|---|---|---|
| 1 | Light Source | LED surface light source, white light, adjustable brightness |
| 2 | Image Acquisition Range | 5mm |
| 3 | CCD Camera | 1/3 inch, 420TVL, 0.2lux, power supply 12VDC |
| 4 | Image Acquisition Card | Minimum resolution: 640×480×16 |
| 5 | Test Lenses | f=110mm, 49mm; f=190mm, 150.1mm |
| 6 | Rectangular Transmission Gratings | 2 L/mm, 10 L/mm, 25 L/mm, 50 L/mm |
| 7 | Other Accessories | Guide rails, sliding seats, white screens, grating holders, etc. |
Note: Configurations and parameters are subject to minor changes without prior notice. Please refer to the actual packing list for the final specifications.
Optional Accessories
| No. | Name | Specifications |
|---|---|---|
| 1 | Computer | 2.5G dual-core processor, 200G hard disk, 3G memory, independent graphics card |
| 2 | Monitor | LCD monitor |
| 3 | Printer | – |
Product Applications
Ideal for professional scenarios such as optical research laboratories, university physics/optics teaching experiments, and optical component manufacturing inspection. It provides reliable data support for optimizing optical system design, verifying product performance, and conducting academic research on optical information transmission. Whether for educational purposes to help students grasp core optical principles or for industrial quality control to ensure the performance of optical systems, Atomfair OTFM-739 delivers accurate and efficient measurement and evaluation capabilities.
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
