Atomfair OpticKit-6328 Self-Assembled Optical Comprehensive Experiment Kit (Guide Rail)
Product Overview

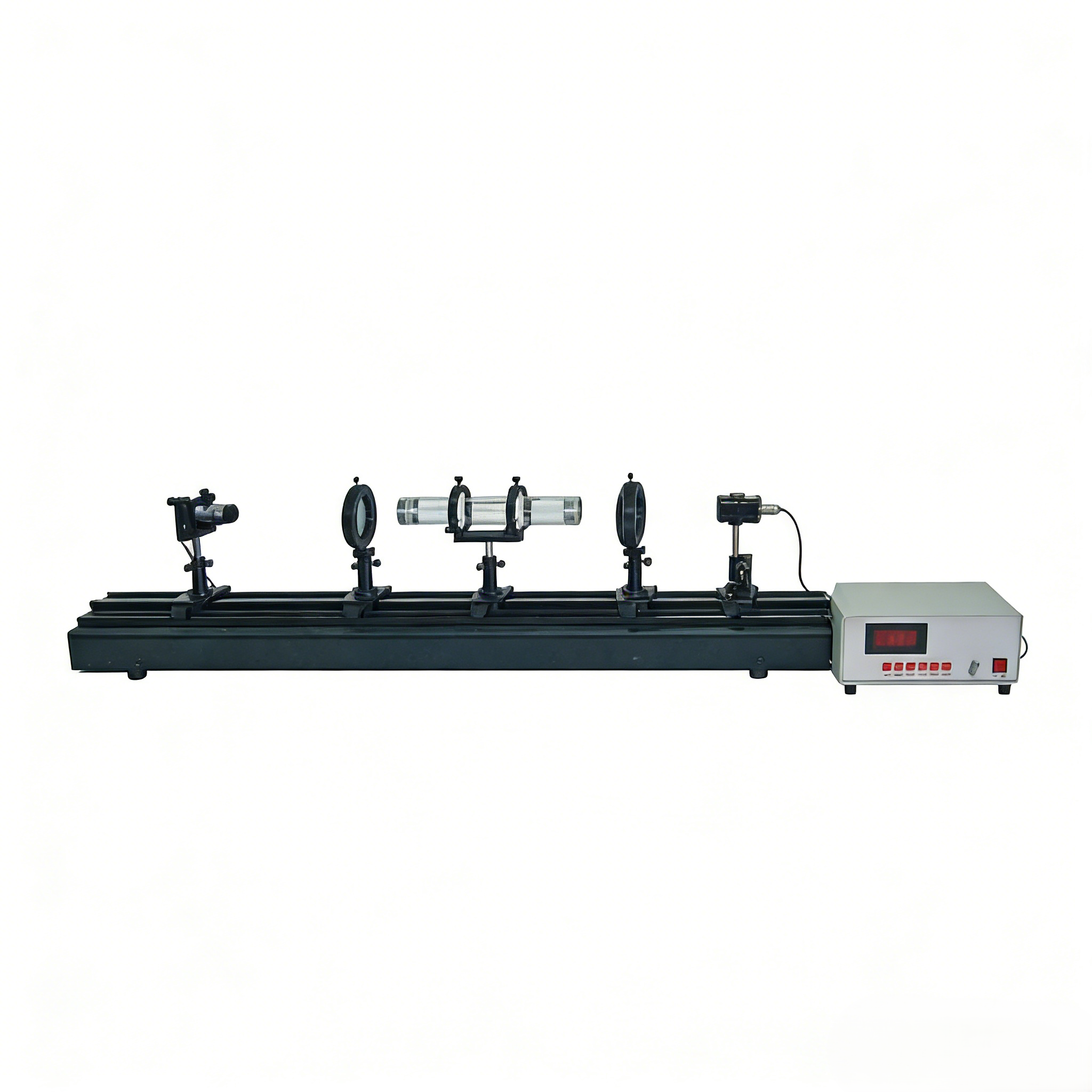

The Atomfair OpticKit-6328 Self-Assembled Optical Comprehensive Experiment Kit (Guide Rail) is specifically designed for physics experiment courses in institutions of higher education. It covers core basic experimental content such as geometric optics, physical optics, and information optics. The experimental projects can be freely selected and combined according to teaching needs, adapting to diverse teaching scenarios. Built on an optical guide rail, the experiment kit is equipped with multi-functional sliding seats, facilitating the adjustment and fixation of experimental devices with flexible and convenient operation.
Optional Experimental Projects
- Measuring the focal length of a thin convex lens by the auto-collimation method
- Measuring the focal length of a thin convex lens by the Bessel method (double imaging method)
- Measuring the focal length of an eyepiece by the object-image magnification method
- Measuring the focal length of a concave lens by the object-image distance method
- Measuring the focal length of a convex lens by the object-image distance method
- Determination of the nodes and focal length of a lens group
- Observation of 6 types of aberrations of lenses
- Self-assembled projector
- Self-assembled telescope with erecting prism
- Measurement of the magnification of the self-assembled telescope
- Lloyd’s mirror interference experiment
- Newton’s rings experiment
- Young’s double-slit experiment
- Fresnel double-mirror interference experiment
- Fresnel double-prism interference experiment
- Straight-edge Fresnel diffraction experiment
- Fraunhofer single-slit diffraction experiment
- Fresnel single-slit and circular aperture diffraction experiment
- Fraunhofer circular aperture diffraction experiment
- Abbe imaging principle and spatial filtering experiment
- E-modulation experiment
- Generation and inspection of polarized light experiment
Core Configuration and Technical Parameters
(I) Optical Components
- Material: BK7 optical glass
- Focal length deviation: ±2%
- Diameter deviation: +0.0/-0.1mm
- Effective aperture: ＞80%
- Eccentricity: 3′ (arc minutes)
- Surface quality: 60/40 (scratch/dig standard)
- Surface accuracy: λ/4 @ 632.8nm (laser wavelength)
(II) Light Source System
- He-Ne laser: TEM₀₀ mode, output power 1.5~2.0mW, powered by a DC stabilized current power supply to ensure power stability and avoid light spot flicker, operating current 4.2mA
- Tungsten-halogen lamp: Continuously adjustable brightness, rated power up to 35W, spectral range 300nm~2500nm
(III) Adjustment Frame
- Material: High-strength hard aluminum alloy, featuring high strength, heat resistance, and low internal stress
- Surface treatment: Matte process with low reflectivity
- Adjustment accuracy: Equipped with a high-stability knob with a pitch of 0.25mm, ensuring high adjustment precision
