Atomfair-OptCom-739 Fiber Optic Information and Optical Communication Experiment System
Featured Highlights
Unlock professional fiber optic & optical communication experiments with one system! Designed for universities, research labs, and technical training institutions, it integrates 8 core components to cover basic optics, sensing, and communication experiments?no extra setup needed.
Product Overview
Product Type: Fiber Optic Sensing and Communication Experimental System
Core Application: Teaching, scientific research in optical communication, fiber sensing, and electronic information disciplines
Key Advantage: All-in-one configuration for 8 types of experiments; high-precision components meet professional research standards

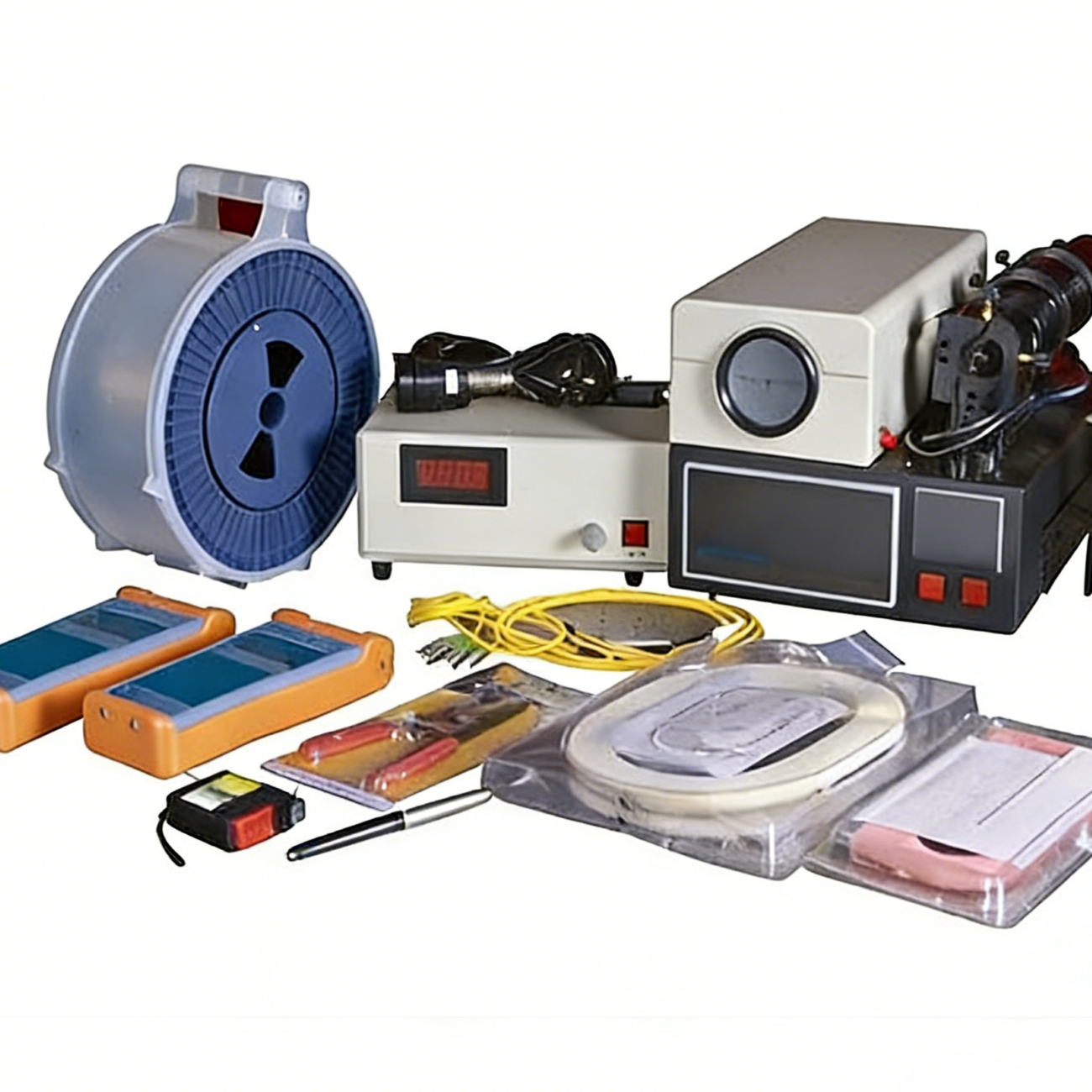

Core Configuration & Technical Specs (Reference Only, Subject to Packing List)
1. Main Unit: Equipped with 633nm single-mode beam splitter, temperature control system, pressure control system, and fiber coupling frame
2. Handheld Light Source: Wavelength: 1310/1550nm; Power: > -8.0dBm; Modulation Modes: CW/270Hz/1kHz/2kHz
3. Handheld Optical Power Meter: Power Range: -70±+6dBm; Wavelength Range: 800±1700nm (850, 980, 1310, 11480, 1550nm)
4. He-Ne Laser: Wavelength: 632.8nm; Power: > 1.5mW
5. Optical Power Tester: 6-level power range (2μW, 20μW, 200μW, 2mW, 20mW, 200mW); 3.5-digit digital display
6. Single-mode Fiber: 633nm wavelength; FC/PC connector on one end
7. Multi-mode Fiber: 633nm wavelength; 1km general communication fiber
8. Beam Expander: Focal Length: f=6.2mm
Experiments You Can Conduct
1. Fiber Optics Basic Knowledge Demonstration
2. Fiber & Light Source Coupling Method Test
3. Multi-mode Fiber Numerical Aperture (NA) Measurement
4. Fiber Transmission Loss Characteristics & Measurement
5. M-Z Optical Interference Experiment
6. Fiber Temperature & Pressure Sensing Principle Test
7. Fiber Beam Splitter & Isolator Parameter Measurement
8. Adjustable Optical Attenuator & Parameter Setup
Who It’s For
– Universities: Ideal for optical engineering, communication engineering, and electronic information majors to conduct hands-on lab courses.
– Research Institutions: Supports in-depth research on fiber sensing, optical communication performance optimization, and interference technology.
– Technical Training Centers: Helps trainees master practical operation of fiber optic equipment and core experimental methods.
Important Notes
– The configuration, parameters, and appearance shown are for reference only. The actual product shall conform to the packing list.
– Minor adjustments to components may be made without prior notice; all changes will not affect the experimental function and performance.
