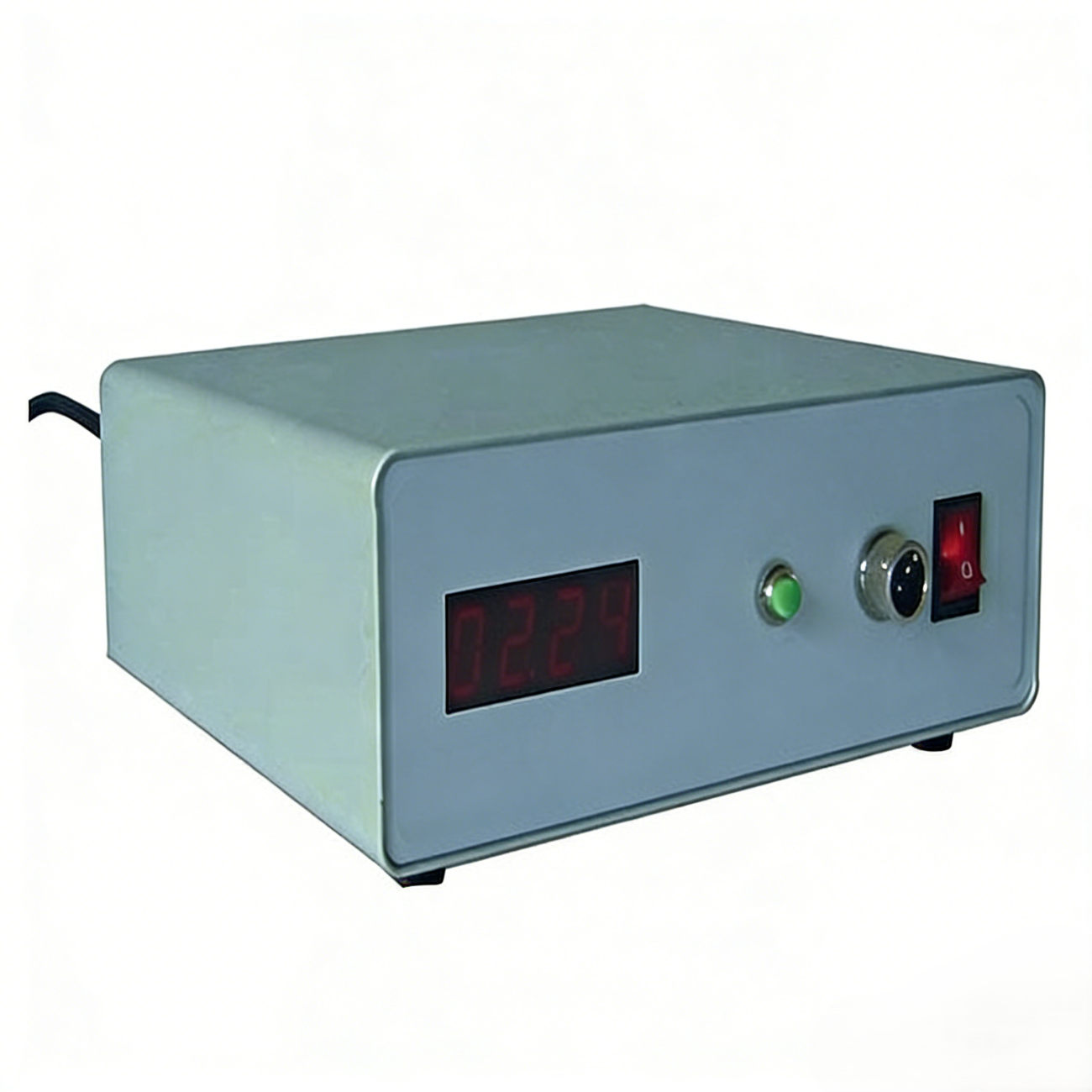

Atomfair-OPM-628 Optical Power Meter
1. Product Basic Information
Product Name: Optical Power Meter
Product Category: Measuring Instrument
2. Product Overview
Atomfair-OPM-628 Optical Power Meter adopts a high-quality PIN photodiode as the optical receiver, boasting an outstanding optical radiation detection sensitivity of 0.1?W. It is specifically designed for optical power detection within the wavelength range of 400nm~1100nm.
Due to the nonlinear response of the detection component to light of different wavelengths, the instrument is preconfigured with calibration output functions for four specific wavelengths: 514nm, 532nm, 632.8nm, and 650nm. This ensures accurate measurement results across various optical sources. Additionally, the product supports communication with upper computers via serial port and USB interface, enabling seamless transmission and subsequent processing of measurement data. It also allows for relevant application development based on this connectivity feature, offering flexibility for diverse usage scenarios.
3. Core Features
High Sensitivity: Delivers excellent detection precision for reliable measurement results.
Wide Detection Bandwidth: Covers a broad wavelength range of 400nm~1100nm, ensuring strong applicability across multiple optical systems.
Multi-Wavelength Calibration Output: Supports calibration for four specific wavelengths, significantly enhancing measurement accuracy.
4. Technical Specifications
| No. | Item | Specifications |
| 1 | PIN Photodiode | Spectral Range: 400~1100 nm; Photosensitive Area: 10 mm?10 mm |
| 2 | Measurement Range | 0.1 W~200 mW |
| 3 | Measurement Resolution | 0.1 W |
| 4 | Display | 3-1/2 Digit Display |
| 5 | Measurement Uncertainty | +3% ±1 Digit |
| 6 | Power Supply | 220V, 50~60Hz |
| 7 | Calibration Wavelengths | 514nm, 532nm, 632.8nm, 650nm |
5. Product Applications
Ideal for optical power detection and measurement in a wide range of scenarios, including but not limited to:
- Optical communication systems (fiber optic network testing, maintenance, and debugging)
- Laboratory research and development (optical component performance testing, optical experiment data collection)
- Industrial production (quality inspection of optical devices, monitoring of optical manufacturing processes)
- Educational institutions (optical principle teaching, student experimental training)
This product combines high performance, reliability, and ease of use, making it a practical choice for professionals and enthusiasts in the field of optics.
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
