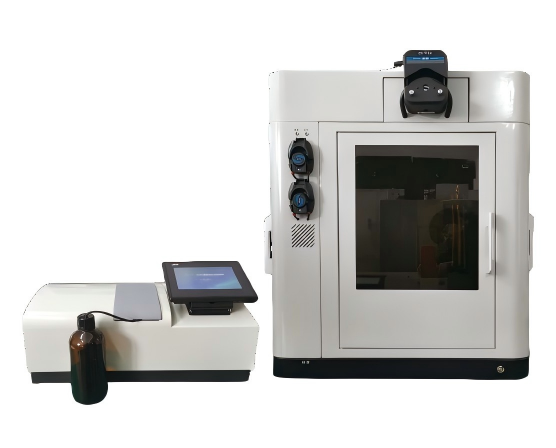

Atomfair OilDetect 369 Fully Automatic Infrared Oil Analyzer
Product Overview
Atomfair OilDetect 369 Fully Automatic Infrared Oil Analyzer is a professional instrument specially designed for the measurement of oil, petroleum hydrocarbons, animal and vegetable oils in water. Developed in accordance with relevant international testing standards, it has the advantages of stable performance, high measurement accuracy and fast detection speed. It is widely used in laboratories, third-party testing institutions, research institutes, sewage treatment plants and other scenarios in petroleum, petrochemical, smelting, environmental protection, hydrology and water conservancy industries, providing efficient and reliable solutions for various water quality oil content detection.
Working Principle
Based on the principle of like dissolves like, oil substances in water are extracted into tetrachloroethylene, and oil measurement is realized after oil-water separation; petroleum hydrocarbons measurement can be completed after oil substances pass through the magnesium silicate adsorption column. Oil substances have absorption characteristics at the spectral bands with wave numbers of 2930cm⁻¹ (stretching vibration of C-H bond in CH₂ group), 2960cm⁻¹ (stretching vibration of C-H bond in CH₃ group) and 3030cm⁻¹ (stretching vibration of C-H bond in aromatic hydrocarbons). The instrument conducts qualitative and quantitative analysis of oil substances by utilizing the absorption and conversion of spectral energy.
Core Advantages
Accurate Detection
Strong Stability: Adopting cast aluminum base with natural stress aging treatment, excellent optical stability, mechanical positioning error less than 1 wave number.
Accurate Detection of Aromatic Hydrocarbons: Effectively detect benzene and toluene, the detection error of standard samples with different ratios is less than 3%, which meets the actual water sample detection requirements.
Multiple Guarantees for Accuracy: Simulate manual detection process to rinse pipelines and cuvettes; equipped with zero tracking technology, real-time zero adjustment, accurately locate and eliminate errors, making the influence of mechanical error and temperature drift close to zero.
Intelligent & Efficient
Fully Automatic Operation: Automatically complete the whole process operations such as tetrachloroethylene purity inspection, extractant addition, liquid-liquid extraction, oil-water separation, animal and vegetable oil separation, oil measurement, pipeline cleaning and automatic reagent recovery, without excessive manual intervention.
Multi-parameter Synchronous Measurement: Support simultaneous or separate measurement of three parameters: total oil, petroleum hydrocarbons, animal and vegetable oils. Adopt three-wave number correction coefficient method without additional standard curve drawing.
Flexible Sample Processing: Freely set 1-N sample positions and support discontinuous measurement; equipped with special sampling bottles, the volume can be read directly, samples can be directly loaded for extraction without secondary transfer.
Rapid Analysis: The whole detection process only takes about 10 minutes, and the extraction efficiency is more than 98%, which greatly improves the detection efficiency.
Adapt to Complex Water Quality: Applicable to various high-impurity water quality, can be directly tested on the machine without manual pretreatment and filtration; for high-concentration samples, when the detection result exceeds the threshold, the instrument will automatically dilute by a fixed multiple to ensure measurement accuracy.
Easy Operation
Multi-channel Communication Connection: Support Bluetooth, WiFi and wired communication, seamless connection with computers, mobile terminals and remote data platforms to achieve efficient data transmission and management.
Real-time Spectrum Display: Full wave number measurement and real-time spectrum display, convenient for users to fully grasp sample information, meeting the needs of both quantitative measurement and qualitative analysis.
Professional Software Support: Equipped with special oil measurement software (software copyright applied), integrating spectrum scanning, analysis, calculation and storage. The operation is simplified, flexible and visualized, supporting urgent sample addition and reducing operation difficulty.
Safe & Reliable
Personnel Health Protection: The instrument is designed with a special waste gas treatment channel to avoid staff contact with tetrachloroethylene, no need to use in a fume hood.
Classified Waste Liquid Treatment: Automatically store extractant and water samples in different waste liquid bottles respectively, reduce the amount of waste liquid treatment and lower environmental protection pressure.
Technical Parameters
Technical Index Specification Parameters
Wavelength Range 2941nm~4167nm
Wave Number Scanning Range 3400～2400cm⁻¹
Wave Number Accuracy ±1cm⁻¹
Wave Number Repeatability ±1cm⁻¹
Detection Limit 0.06 mg/L
Spectrum Resolution ±1cm⁻¹
Repeatability 1%
Accuracy 1%
Absorbance Range 0.0-2.000
Extraction Efficiency >95%
Number of Sample Positions 7/11 (Two configurations optional)
Number of Cleaning Positions 1
Extraction Ratio (100~5):1
Sample Addition Error 0.05ml
Measurement Range 0.24-100mg/L
Baseline Drift 1%/4h
Oil-water Separation Method Membrane Separation
Error of Different Ratios <3%
Maximum Water Sample Volume 750mL
Automatic Reagent Inspection Supported
Magnesium Silicate Switching Mode Manual & Automatic (Two configurations optional)
Overall Dimension (mm) Pretreatment device: 530×450×722; Main unit: 540×310×200
Weight (kg) Pretreatment device: 25; Main unit:14
