Description

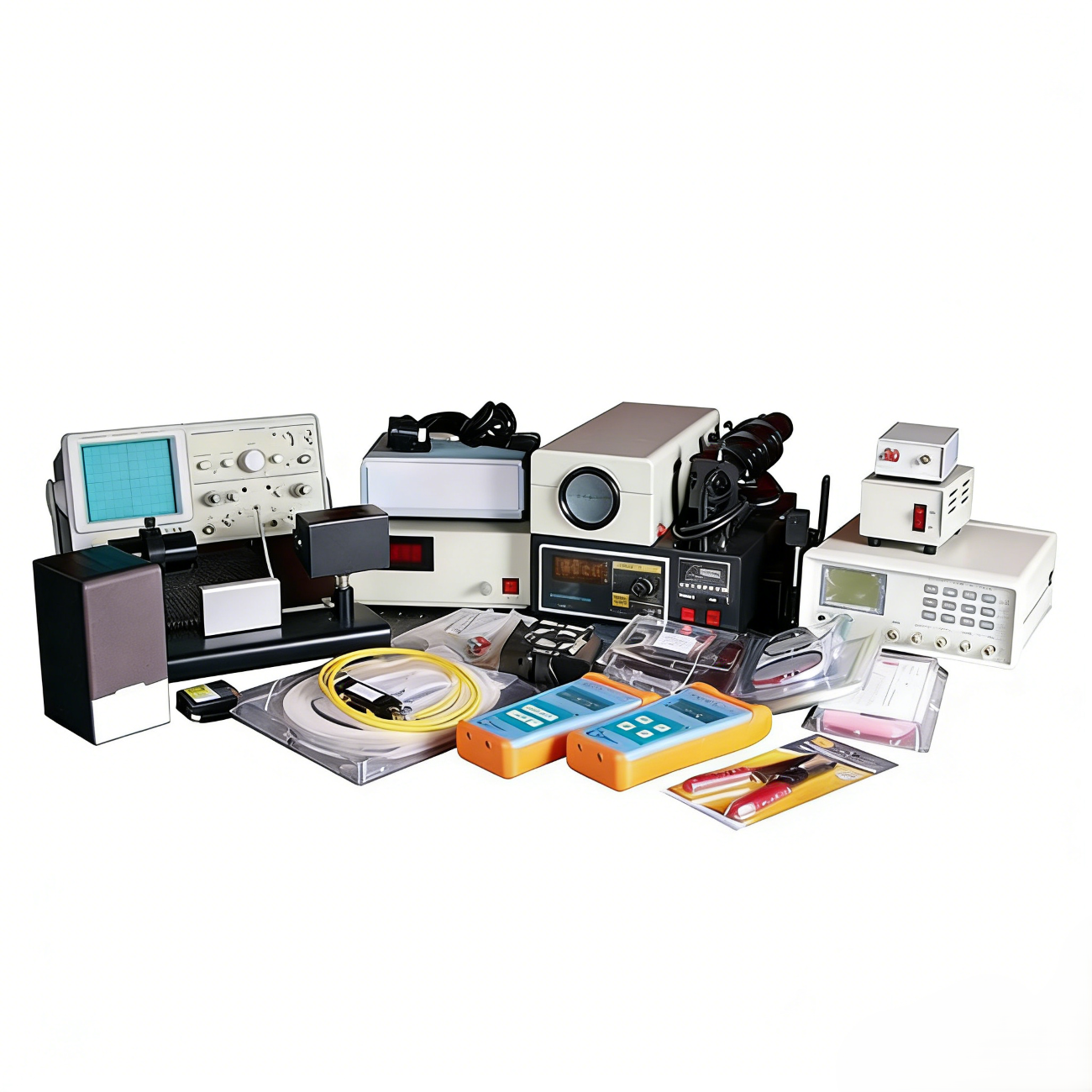

Atomfair-OFCS-6821 Optical Fiber Information and Communication Experiment System
Product Overview
Atomfair-OFCS-6821 is a professional optical fiber sensing and communication experiment system, meticulously designed based on the principles of fiber optics, fiber optic sensors, and optical communication. It serves as an ideal educational tool for students to explore cutting-edge optical fiber technology, grasp core theories and basic operational skills, and lay a solid foundation for further academic and professional development. With its innovative content, compact structure, and diverse functions, this system is highly compatible with teaching scenarios, perfectly meeting the needs of classroom experiments and practical operations.
Key Features
Comprehensive Experimental Coverage: Integrates 14 core experimental projects, covering four major modules—basic principles, component characteristics, sensing applications, and communication principles—providing a holistic learning experience.
Multi-Wavelength Compatibility: Supports optical fiber sensing and communication experiments at four wavelengths (λ=632.8nm, 650nm, 1310nm, 1550nm), adapting to various experimental scenarios and research requirements.
Teaching-Oriented Design: Features a compact and user-friendly structure, combining novelty and practicality to seamlessly align with educational objectives and enhance students’ hands-on abilities.
Experimental Content List
Demonstration Experiment of Basic Knowledge of Fiber Optics
Experiment on Coupling Methods Between Optical Fibers and Light Sources
Measurement Experiment of Numerical Aperture (NA) of Multimode Optical Fibers
Experiment on Transmission Loss Characteristics and Measurement of Optical Fibers
Parameter Measurement Experiment of Optical Fiber Splitters
Parameter Measurement Experiment of Variable Optical Attenuators
Parameter Measurement Experiment of Optical Isolators
Experiment on Optical Fiber Switches
Principle Experiment of Wavelength Division Multiplexing (WDM)
M-Z Fiber Interferometer Experiment
Principle Experiment of Optical Fiber Temperature Sensing
Principle Experiment of Optical Fiber Pressure Sensing
Measurement Experiment of Extinction Ratio of Optical Transmitters
Transmission Experiment of Open-Circuit Audio Analog Signals
Core Configuration & International Standard Specifications
| No. | Name | Specifications (International Standards) |
|---|---|---|
| 1 | Main Unit | 633nm single-mode splitter, integrated with temperature control system, pressure control system, and optical fiber coupling frame |
| 2 | Handheld Light Source | Wavelength: 1310/1550nm; Output Power: > -8.0dBm; Modulation Modes: CW/270Hz/1kHz/2kHz |
| 3 | Handheld Optical Power Meter | Power Measurement Range: -70~+6dBm; Wavelength Adaptation Range: 800~1700nm (including common bands of 850, 980, 1310, 1480, 1550nm) |
| 4 | He-Ne Laser | Output Wavelength: 632.8nm; Output Power: > 1.5mW |
| 5 | Semiconductor Laser | Output Wavelength: 650nm; Equipped with internal modulation input interface |
| 6 | High-Stability Light Source | Output Wavelength: 1310nm; Output Power: ≤1dBm; 15-minute Power Stability: ±0.005dB; 8-hour Output Power Stability: ±0.03dB |
| 7 | Optical Power Tester | Six-Speed Power Measurement Range: 2W, 20W, 200W, 2mW, 20mW, 200mW; Equipped with a 3.5-digit digital display |
| 8 | Bit Error Rate Tester | External Clock Frequency: 2.4Kbps~20Mbps; Internal Clock Frequency: 2.4Kpbs, 8Kpbs, 16Kpbs, 32Kpbs, 6Kpbs, 512Kpbs, 48Kpbs, 8192Kpbs; Integrated with 2048Kpbs rate HDB3 encoder/decoder; Equipped with RS232 communication port, RS422 test port, RS232 test port, and TTL test port |
| 9 | Single-Mode Optical Fiber | Adaptable Wavelength: 633nm; Equipped with FC/PC standard connector on one end |
| 10 | Multimode Optical Fiber | Adaptable Wavelength: 633nm; Length: 1km; Complies with general communication optical fiber standards |
| 11 | Beam Expander | Focal Length: f=6.2mm |
| 12 | Optical Isolator | Adaptable Wavelength: 1550nm |
Notes
The above configurations and parameters are for reference only. The actual product shall be subject to the packing list. Minor configuration adjustments may be made without prior notice.
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
