Description

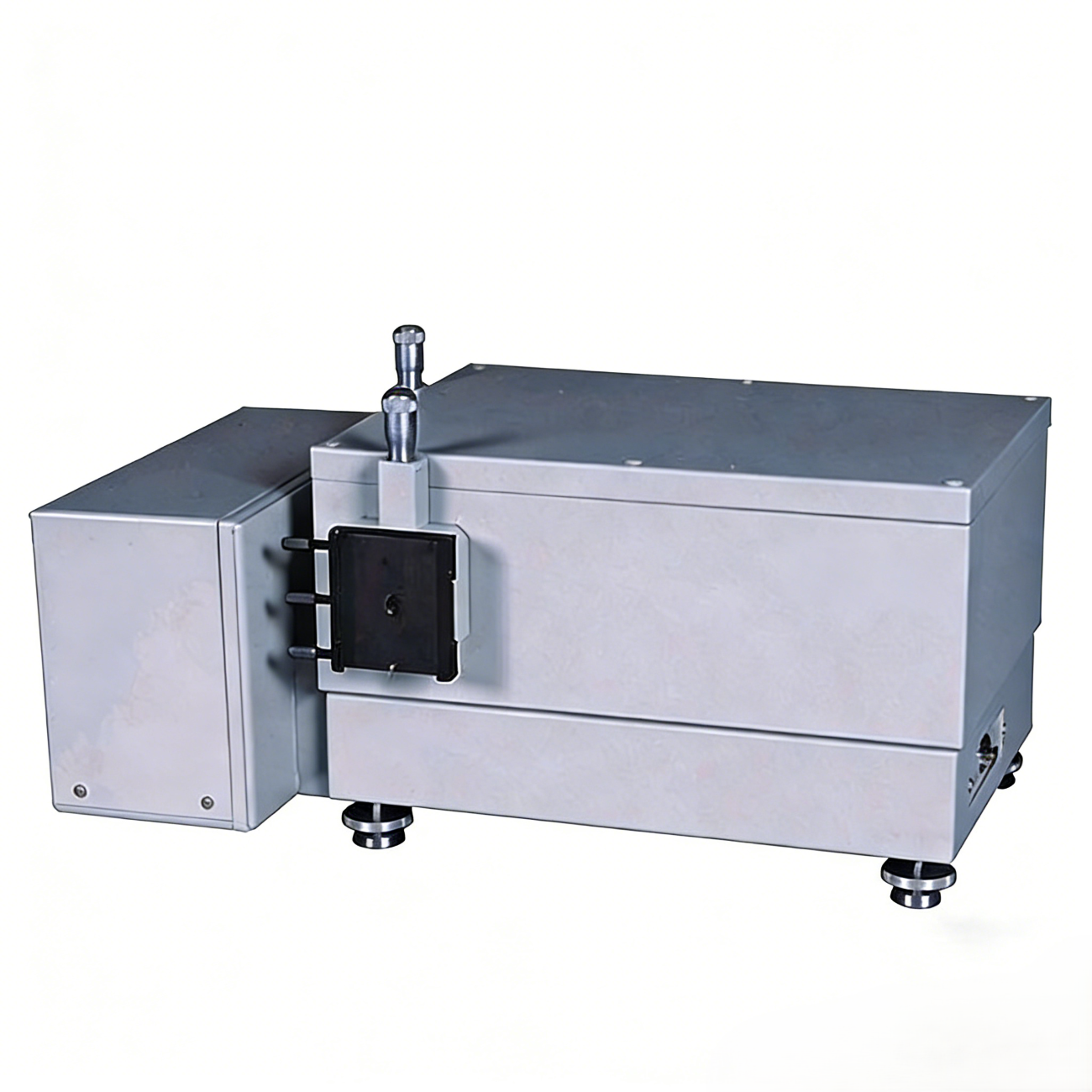

Atomfair-MRS-739 Combined Multi-Functional Grating Spectrometer
Product Name: Atomfair-MRS-739 Combined Multi-Functional Grating Spectrometer
Product Overview
The Atomfair-MRS-739 Combined Multi-Functional Grating Spectrometer is a high-performance analytical instrument belonging to the monochromator and spectrometer category. With its precise optical design and versatile configuration, it is widely applicable in scientific research laboratories, material analysis institutions, and educational institutions for various spectral measurement tasks. This spectrometer offers reliable performance, easy operation, and comprehensive spectral analysis capabilities, making it an essential tool for spectral research and material characterization.
Key Technical Specifications (International Standard)
| No. | Name | Parameters |
|---|---|---|
| 1 | Focal Length | 302.5mm |
| 2 | Relative Aperture | D/F=1/7 |
| 3 | Scanning Range | 1000nm-2500nm |
| 4 | Slit | Continuously adjustable width from 0 to 2mm, indication accuracy 0.01mm |
| 5 | Wavelength Accuracy | ±6nm |
| 6 | Wavelength Repeatability | 3nm |
| 7 | Stray Light | ≤10⁻³ |
| 8 | Overall Dimensions | 360mm×300mm×160mm |
| 9 | Weight | 25kg |
Basic Configuration & Specifications
| No. | Name | Specifications |
|---|---|---|
| 1 | Grating | 300L/mm |
| 2 | Detector | Lead Sulfide Photodetector |
| 3 | Filter | 1000nm and 1700nm Cut-off Filters |
| 4 | Software | Specialized Software for Spectral Analysis |
Note: The configuration and parameters are for reference only. Please refer to the packing list for the actual situation. Minor changes will not be notified separately.
Core Applications
- Blackbody Experiment: Ideal for conducting blackbody radiation-related experiments, supporting the study of thermal radiation characteristics.
- Absorption Spectroscopy Measurement: Capable of analyzing the absorption spectrum of measured substances, including gas, liquid, and solid materials. It provides accurate spectral data for material composition analysis and impurity detection.
- Emission Spectroscopy Measurement: Precisely measures the spectral characteristics of emission light sources, facilitating the research and quality control of light-emitting materials and devices.
Product Advantages
- Wide scanning range (1000nm-2500nm) to meet diverse spectral measurement needs.
- High wavelength accuracy and repeatability ensure reliable and consistent test results.
- Continuously adjustable slit with high indication accuracy for flexible optical path adjustment.
- Comprehensive configuration with professional spectral analysis software for one-stop spectral solution.
- Compact structure and reasonable weight, easy to install and move in laboratory environments.
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
