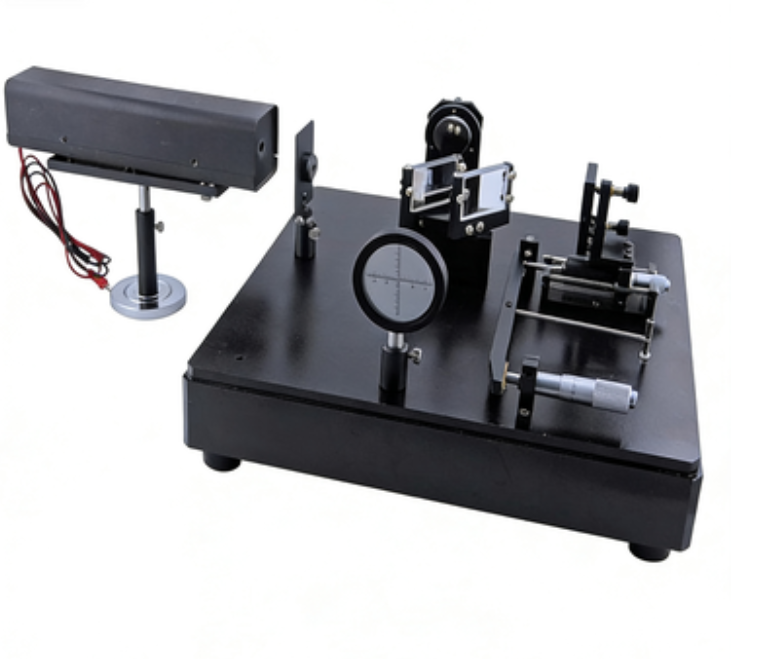

Atomfair MI-627 Michelson Interferometer

聽聽聽

1. Product Overview

聽聽聽

Atomfair MI-627 Michelson Interferometer is an independently developed experimental instrument, built by drawing on the classic design of traditional interferometers and combining a new platform structure. It can be used to observe various optical interference phenomena and verify relevant basic theories. With the optional Fabry-P茅rot interference device, it can also observe sharp rings of beam interference and measure the wavelength difference between adjacent spectral lines, making it an essential equipment for Michelson interferometry experiments, and comes with a Matlab simulation experiment program.

聽聽聽

2. Core Features

聽聽聽

聽聽聽聽聽聽聽
1. Light source: Equipped with a He-Ne laser with a wavelength of 632.8nm, power 鈮

聽聽聽聽聽聽聽

2. Structure: Adopts a new platform structure with a cast iron base as the experimental platform, which is convenient for adding measured substances into the optical path and ensures the stability of the experimental process;

聽聽聽聽聽聽聽

3. Measurement: The open space design makes the adjustment of equal-thickness interference, equal-inclination interference and various fringe changes extremely convenient, and various precision measurements can be easily carried out.

聽聽聽

聽聽聽

3. Main Experimental Content

聽聽聽

聽聽聽聽聽聽聽
1. Observe non-localized interference of point light source (He-Ne laser as standard configuration);

聽聽聽聽聽聽聽

2. Observe equal-inclination interference fringes (low-voltage sodium lamp required separately);

聽聽聽聽聽聽聽

3. Observe equal-thickness interference fringes (low-voltage sodium lamp required separately);

聽聽聽聽聽聽聽

4. Observe white light interference phenomenon (white light source required separately);

聽聽聽聽聽聽聽

5. Determine the wavelength of the light source or filter (He-Ne laser as standard configuration or low-voltage sodium lamp required separately);

聽聽聽聽聽聽聽

6. Determine the wavelength difference of sodium yellow doublet (low-voltage sodium lamp required separately);

聽聽聽聽聽聽聽

7. Measure the refractive index of transparent medium thin slices (transparent medium thin slices need to be prepared by oneself);

聽聽聽聽聽聽聽

8. Optional experiment: Measure the refractive index of transparent gas (glass air chamber required separately);

聽聽聽聽聽聽聽

9. Optional experiment: Observe Fabry-P茅rot interference phenomenon (Fabry-P茅rot etalon required separately).

聽聽聽

聽聽聽

4. Specification Parameters (International Standard)

聽聽聽

聽聽聽聽聽聽聽
1. Laser wavelength: 632.8nm;

聽聽聽聽聽聽聽

2. Laser power: 鈮

聽聽聽聽聽聽聽

3. Laser mode: Single-mode TEM鈧€鈧€;

聽聽聽聽聽聽聽

4. Laser cavity length: 250mm;

聽聽聽聽聽聽聽

5. Laser plug type: Fully protected safety high-voltage plug;

聽聽聽聽聽聽聽

6. Base material: Cast iron;

聽聽聽聽聽聽聽

7. Specifications of accessories related to supporting experiments: In line with industry standard configurations.

聽聽聽

聽聽聽

5. Main Configuration

聽聽聽

Atomfair MI-627 Michelson Interferometer main unit (main unit, ground glass screen, beam expander, one-dimensional base), GY-11 He-Ne laser (including power supply);
聽聽聽 Optional accessories: GY-5 low-voltage sodium lamp, GY-14 white light source, Fabry-P茅rot etalon, air chamber assembly, etc.;
聽聽聽 Configuration parameters can be customized according to different customer requirements.

聽聽聽

If you鈥檙e interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
