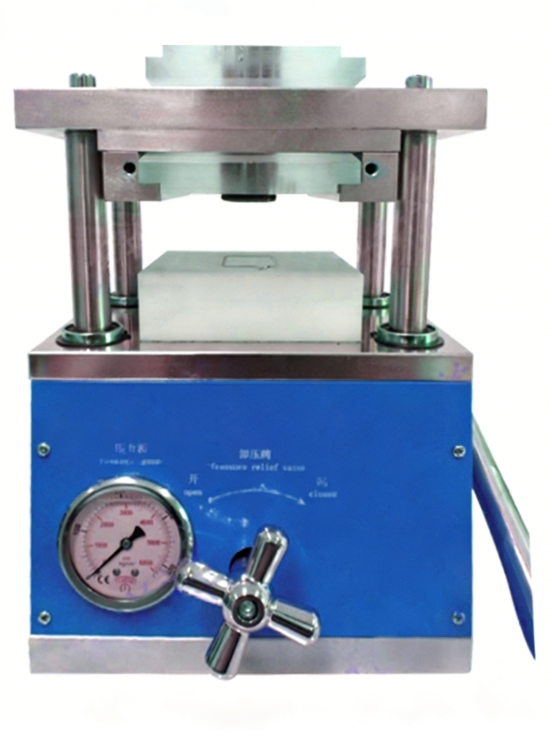

Atomfair-MCM1860 Mold Cutting Machine

Product Application

This product is suitable for the die-cutting and forming of positive and negative battery plates, as well as the die-cutting of lithium sheets. It can be used inside a glove box.

Functional Features

• Small size and easy operation, can be operated inside a glove box.
• Built-in safety relief oil valve, which can adjust the pressure as needed, and set the upper pressure limit to prevent damage caused by excessive pressure due to misoperation, ensuring the safe use of the machine.
• Embedded pressure gauge for observing and accurately controlling the sealing pressure.
• Long die life, = 30,000 times under normal use.
• Adopting four guide pillar structure, with smooth up and down sliding and high cutting precision.
• Elegant appearance, simple maintenance, small size, easy operation and high forming precision.

Technical Parameters

Parameter Item	Specification
Maximum Cutting Size	120x100mm (Customizable on request)
Cutting Precision	±0.1 mm
Maximum Pressure	4T
Die Cutting Stroke	35mm
Structural Material	High-strength chrome steel, surface treated with environmentally friendly electroplating and spraying, never rusts
Overall Dimension	223mm*170mm*325mm
Weight	25kg
