Description

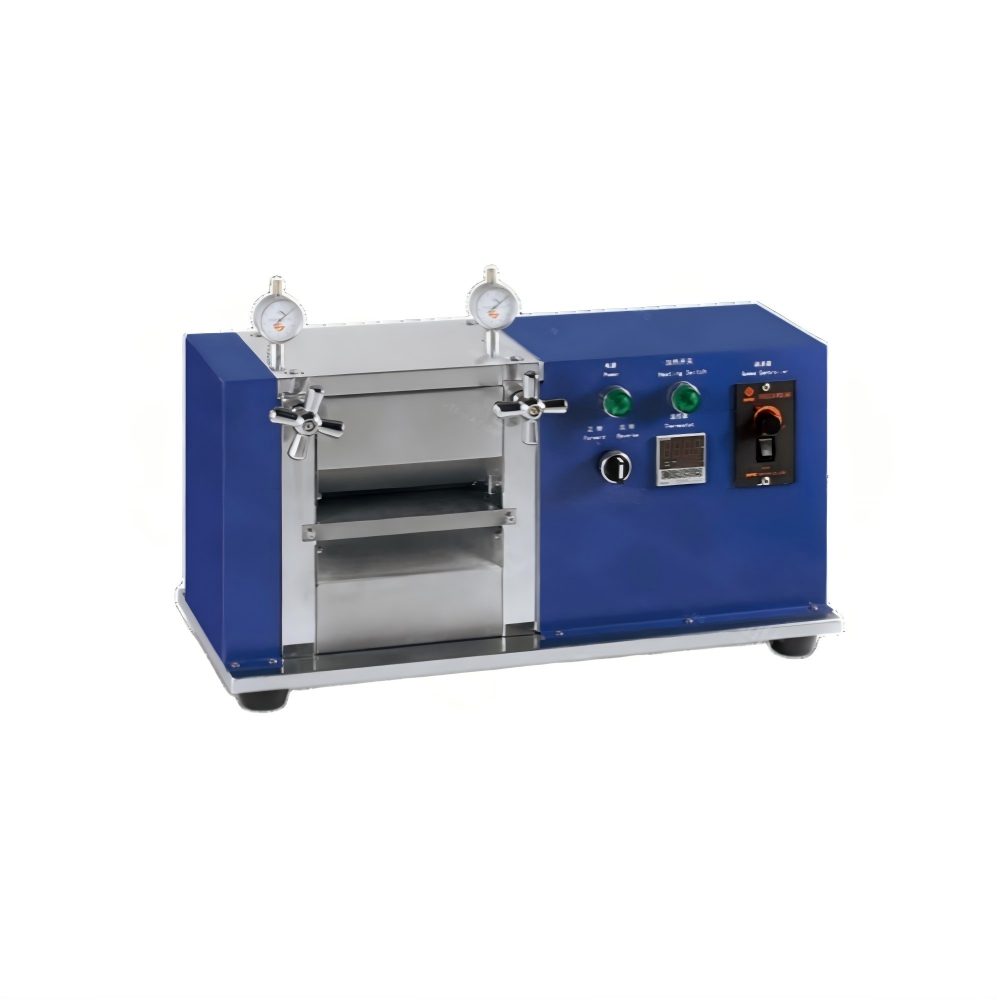

Atomfair Lab Heated Electric Rolling Machine
Product Model
Atomfair-LHRM-4581
Product Overview
This is a lab-specific heated electric rolling machine, mainly suitable for the rolling processing of battery materials, small amounts of precious metals (such as gold and silver), and non-ferrous metals (such as copper and aluminum) at a specified heating temperature in the laboratory. The rolling thickness is adjustable and the operation is simple and convenient. It is especially suitable for the thinning treatment and density improvement of lithium battery plates in clean energy materials.
Functional Features
- Rolling thickness and feeding speed are adjustable, with convenient operation and easy use.
- The motor supports forward and reverse operation, allowing quick material retreat when problems are found during operation for more flexible operation.
- Adopts gear transmission structure to realize counter-roll pressing, ensuring stable and uniform rolling effect.
- Equipped with double protection of outer cover and heat insulation board to improve the safety during the equipment operation.
- Complies with the requirements of OHSMS18000 Occupational Health and Safety Management System, and will not cause harm to the health of operators.
Technical Parameters
| Parameter Name | Specification |
|---|---|
| Roller Diameter | Φ96mm |
| Roller Surface Hardness | HRC62 and above |
| Roller Surface Finish | Ra0.4 and above |
| Rolling Thickness | 0-2mm |
| Rolling Width | 0~100mm |
| Roller Placement | Vertical |
| Rolling Temperature | 100℃ |
| Feeding Speed | 0-10mm/s |
| Power Supply | AC220V/50HZ |
| Rated Power | 720W |
| Overall Equipment Dimension | L500mm × W220mm × H320mm |
| Equipment Weight | 55KG |
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
