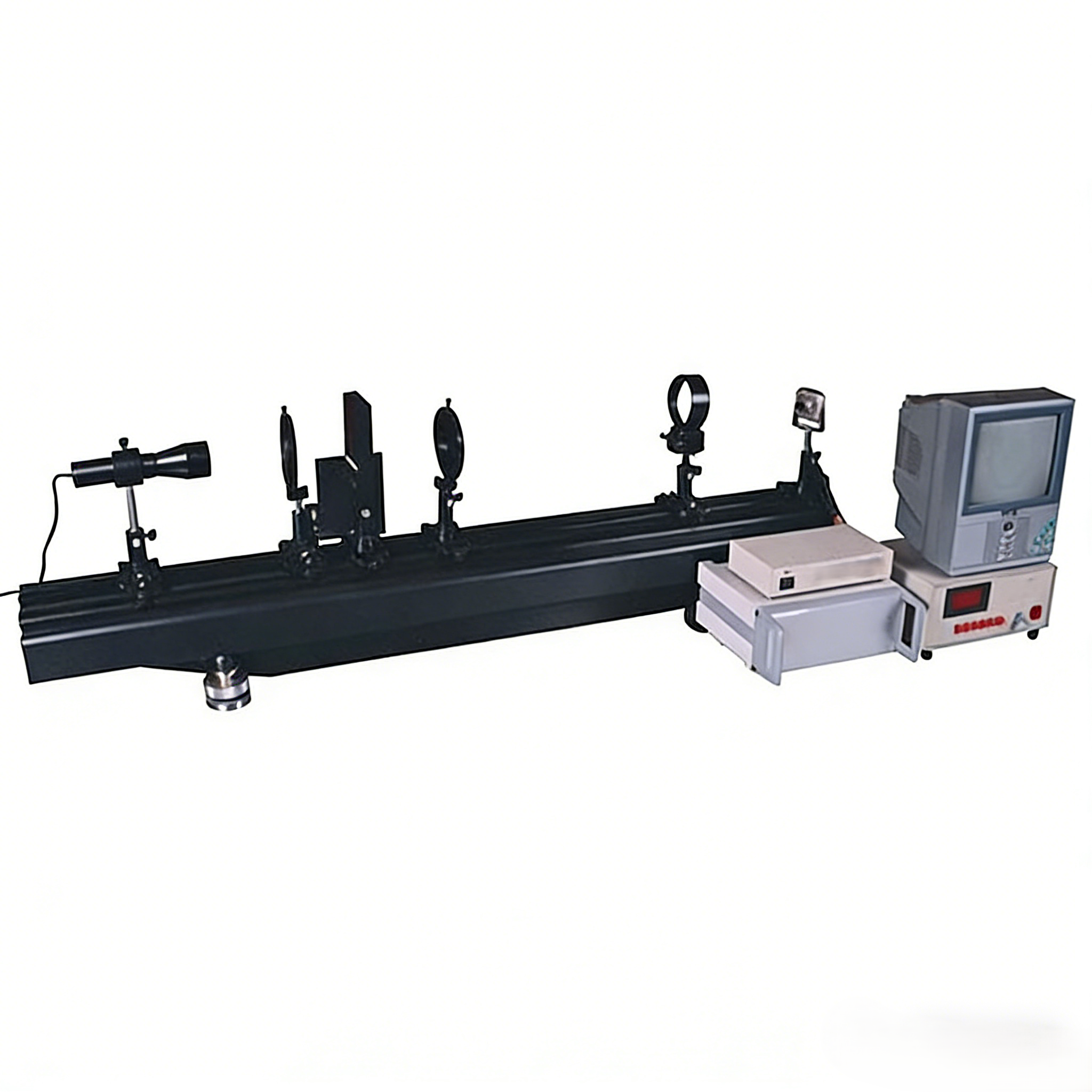

Atomfair-LCLV-837 Electrically Addressed Liquid Crystal Light Valve – Optical Information Comprehensive Experiment System
Product Overview
Atomfair-LCLV-837 is a high-performance experimental system designed based on Fourier information optics principles. It leverages the unique properties of liquid crystals, which are organic polymer compounds existing between the liquid and crystalline states—combining fluidity like liquids and orientation characteristics like crystals. When liquid crystal molecules are arranged in an orderly manner, they exhibit optical anisotropy. The liquid crystal screen of this product serves as a spatial light modulator, utilizing the light modulation characteristics of liquid crystals and adopting an electrically addressed mode. This enables convenient control of signal input and output via a computer, making it an ideal tool for optical information processing applications such as computer-generated holography.
Key Features
- Open Experimental Structure: The open and operable design allows for hands-on operation, effectively fostering users’ practical skills and deepening their understanding and mastery of experimental principles.
- Powerful Software Support: Equipped with advanced supporting software, it can realize holographic encoding transformation and simulated reconstruction of ordinary images, as well as accurate measurement of liquid crystal electro-optical effects.
- User-Friendly Experiment Guide: A dedicated experiment guidebook is tailored to users’ comprehension abilities. It features concise and understandable descriptions of experimental principles and clear step-by-step procedures, enabling users without prior experimental preparation to independently complete the entire set of experiments. Additionally, the guide includes thinking questions to meet the needs of advanced learning.
Application Scenarios
This experimental system is specifically designed for optical basic experiment teaching in majors such as Optoelectronic Information Engineering, Physics, and other related disciplines. It provides students with a comprehensive and practical experimental platform to enhance their theoretical knowledge and practical operation capabilities in the field of optical information.
Experimental Contents
- Liquid Crystal Electro-optical Effect Experiment
- Measurement Experiment of Microstructure of Electrically Addressed Liquid Crystal Light Valve Based on Diffraction Theory
- Light Interference and Diffraction Experiment
- Computer-Generated Holography Experiment
- Hologram Diffraction Efficiency Measurement Experiment
- Verification Experiment of Fourier Transform Properties and Holographic Properties
Standard Configuration & Specifications
| No. | Name | Specifications |
|---|---|---|
| 1 | Light Source | Semiconductor Laser, 650nm |
| 2 | Liquid Crystal Light Valve | Resolution 1024×768, with Control Cabinet |
| 3 | Fourier Lens | Focal Length f=300mm, 60mm |
| 4 | Optical Power Tester | 6-Speed Switching |
| 5 | CCD Camera | With Power Supply and Support Rod |
| 6 | Video Splitter | 1-to-4 Splitting |
| 7 | Other Accessories | Guide Rail, Sliding Seat, Polarizer, Receiving Screen, Monitor, Data Cable, etc. |
Note: The above configuration and parameters are for reference only. Please refer to the packing list for the actual product. Minor changes will not be notified separately.
Optional Configuration
| No. | Name | Specifications |
|---|---|---|
| 1 | Computer | 2.5G Dual-Core Processor, 200G Hard Disk, 3G Memory, Independent Graphics Card |
| 2 | Monitor | Liquid Crystal Monitor |
| 3 | Printer | – |
