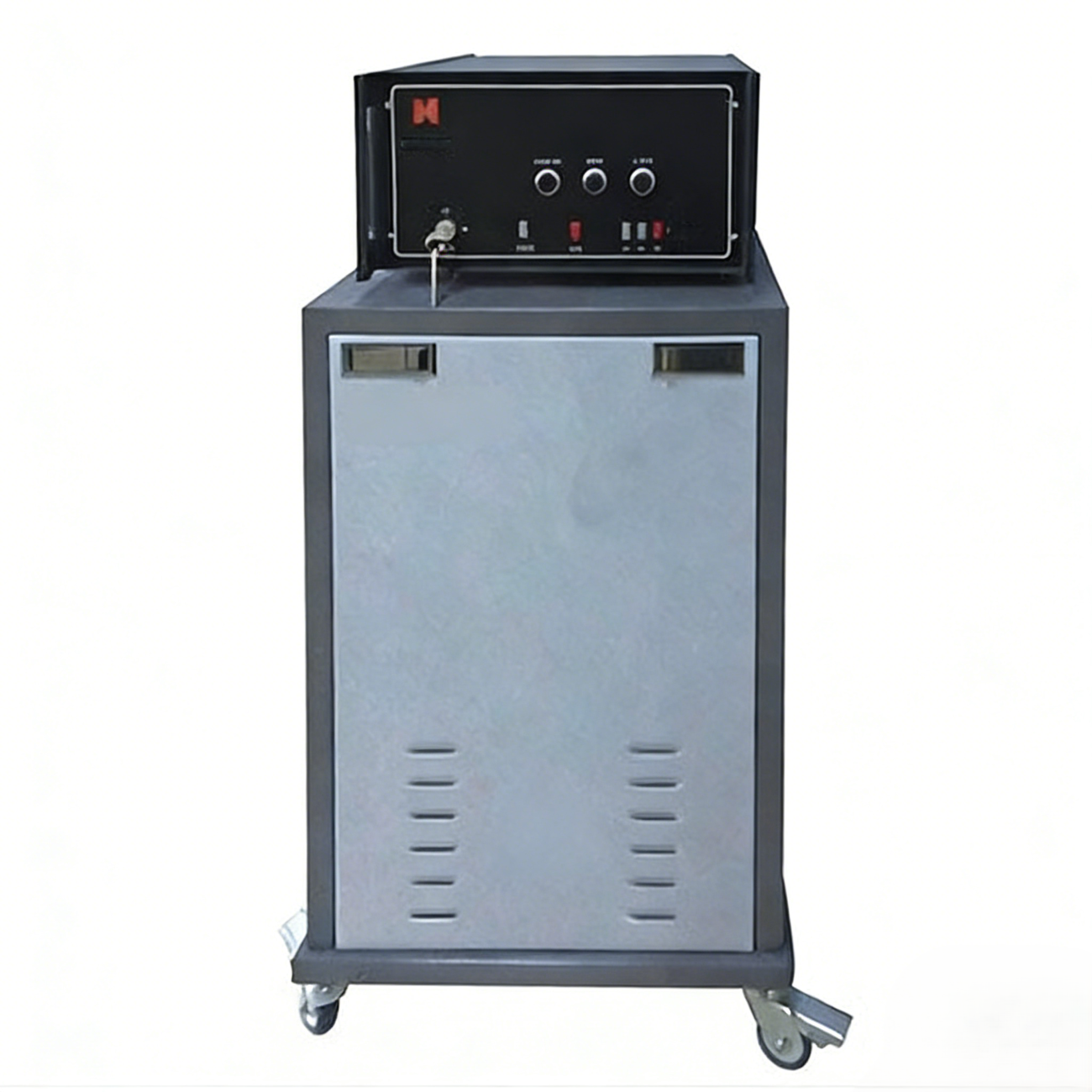

Atomfair-LaserLab-6382 Q-Switched Nd:YAG Frequency-Doubled Laser Experiment Setup
Product Overview
Atomfair-LaserLab-6382 is a high-performance experimental setup designed for optoelectronics and laser learning. It provides an intuitive and hands-on platform for users to explore the fundamental principles and core technologies of lasers. With its reliable performance, comprehensive experimental functions, and robust safety features, this setup is an ideal choice for educational institutions, research labs, and laser technology enthusiasts aiming to deepen their understanding of laser systems.
Product Type
Optoelectronics & Laser Experimental Equipment
Core Configuration & Specifications (International Standards)
| No. | Item | Specifications |
| 1 | Output Wavelength | 1064nm / 532nm |
| 2 | Output Energy | 1064nm (Un-Q-switched): ≥600mJ; 1064nm (Q-switched): ≥200mJ; 532nm: ≥60mJ |
| 3 | Pulse Width | ≤30ns |
| 4 | Pulse Frequency | 1Hz / 5Hz / 10Hz |
| 5 | Beam Divergence Angle | ≤5mrad; Equipped with Q-switch (Operating Voltage: 3.8KV) |
| 6 | Collimation Laser | Wavelength: 650nm, Output Power: ≥5mW |
Optional Accessories (Specialized for YAG Laser Parameter Testing)
| No. | Item |
| 1 | Laser Energy Meter |
| 2 | Oscilloscope |
| 3 | Photodetector |
Key Values
Tailored specifically for learners, this experimental system enables users to master the basic structure, core parameters, output characteristics, and adjustment methods of lasers through hands-on assembly and debugging. It facilitates in-depth comprehension of key laser technologies such as Q-switching, mode selection, and frequency doubling, helping users establish a systematic understanding of laser technology.
Product Features
- Intuitive Structure & Easy Operation: The clear structural design and simplified operation process lower the learning threshold, allowing users to focus on experimental exploration.
- Comprehensive Safety Protection: Integrated with multiple safety protection mechanisms to fully ensure the safety of operators during use.
- Diversified Experimental Projects: Supports a wide range of experimental items, covering core knowledge points of laser principles and technologies.
- Flexible Accessory Matching: Offers three types of optional testing accessories, which can be flexibly combined according to experimental requirements.
Experimental Content System
1. Pulsed Nd:YAG Laser Principle Experiments
- Laser assembly and debugging practice
- Measurement experiment of laser output pulse width
- Test of output energy and energy conversion efficiency
- Measurement experiment of laser threshold characteristics
2. Pulsed Nd:YAG Laser Technology Experiments
- Electro-optical Q-switching technology practical experiment
- Crystal angle-matched frequency doubling technology experiment
- Laser mode selection technology regulation experiment
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
