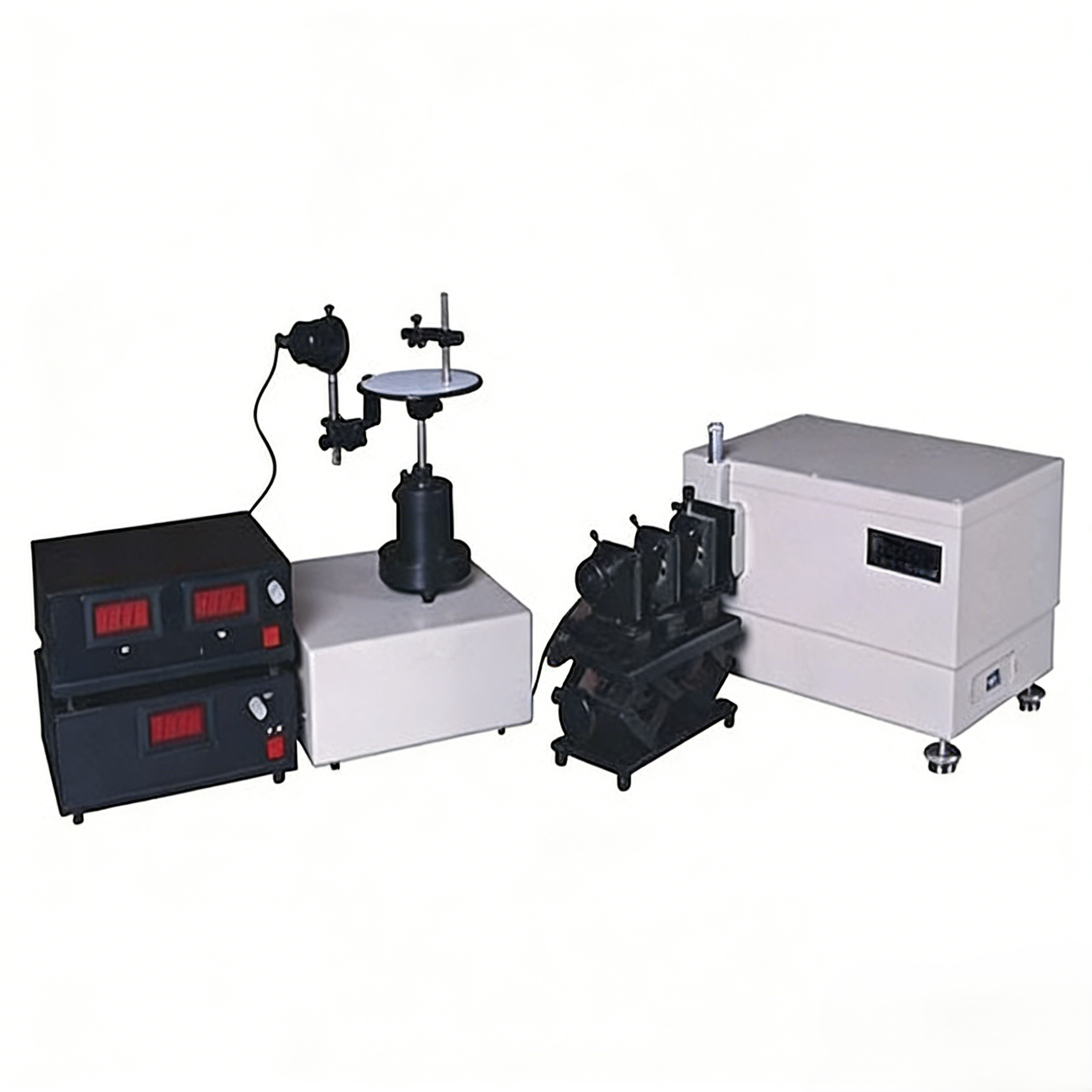

Atomfair-LaserLab-632 Semiconductor Laser Experiment System
Product Basic Information
Product Type: Optoelectronics and Laser Experimental Equipment
Core Purpose: Specifically designed for educational experimental scenarios, this system is used to observe and study the working characteristics and optical properties of semiconductor lasers. It helps users deeply understand the relevant principles of semiconductor lasers through hands-on operations and precise measurements.
Key Features
Intuitive Spectral Curve Observation: Utilize a CCD spectrometer (Optical Multi-Channel Analyzer) to directly observe the spectral curves of semiconductor lasers. It clearly presents the variation rules of spectral curves under different current and voltage conditions, enabling users to intuitively grasp the core characteristics of the laser.
Comprehensive Optical Parameter Measurement: Supports the measurement of key optical parameters of semiconductor lasers, such as divergence angle and polarization degree. This assists users in acquiring a comprehensive and systematic understanding of the optical properties of semiconductor lasers.
Detailed Configuration & International Standard Specifications
| No. | Configuration Name | International Standard Specifications |
|---|---|---|
| 1 | Optical Multi-Channel Analyzer | Wavelength range: 300-900nm; Wavelength accuracy: ±0.4nm; Wavelength repeatability: ≤0.2nm; Resolution: Better than 0.2nm; Relative aperture: D/F=1/7 |
| 2 | Current-Adjustable Laser Power Supply | Output current: 0~40mA, continuously adjustable |
| 3 | Semiconductor Laser | Central wavelength: 650nm; Output power: ＜5mW |
| 4 | Holders | Circular laser holder, square laser holder |
| 5 | Polarization Rotation Mount | Adjustment range: 0~360°; Minimum scale: 1° |
| 6 | Rotating Stage | Adjustment range: 0~360°; Minimum scale: 1° |
| 7 | Multi-Functional Lifting Stage | Lifting range: ＞40mm |
| 8 | Optical Power Tester | Power measurement range: 2mW, 20mW, 200mW, 2W, 20W, 200W (6 gears optional); 3.5-digit digital display |
| 9 | Focusing Lens | Focal length: f=15mm |
| 10 | Polarizing Plate | Light-transmitting aperture: 16mm; Applicable wavelength range: 400-700nm; Polarization degree: 99.98%; Transmittance: 30.0% (parallel state); 0.0045% (orthogonal state) |
| 11 | Attenuator | Light intensity transmittance: 5% |
| 12 | Auxiliary Adjustment Components | 4-axis adjustment mount, 2-axis adjustment mount, receiver adjustment mount, rotating stage base |
Experimental Function Description
By measuring the power, voltage, and current parameters of the semiconductor laser, users can deeply understand its working characteristics under continuous output mode.
With the assistance of the Optical Multi-Channel Analyzer, accurately observe the spectral changes of the semiconductor laser under different injection current conditions: when the injection current is lower than the threshold, fluorescence emission can be observed; when the injection current is higher than the threshold, the spectral line changes generated by laser oscillation can be detected.
