Description

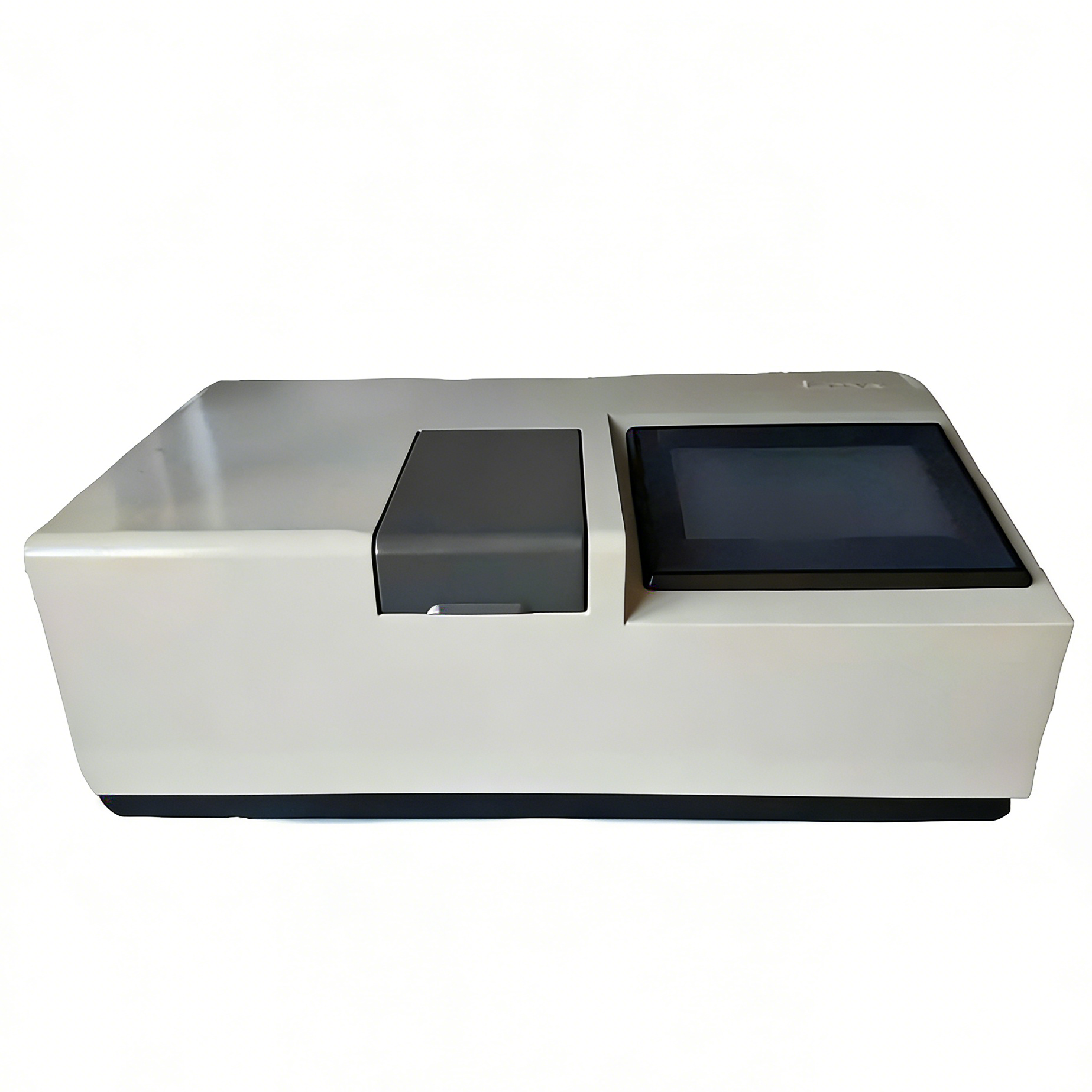

Atomfair IRO 739 Infrared photometric oil analyzer
Product Overview
Atomfair IRO 739 Infrared photometric oil analyzer has the advantages of long optical path, high resolution, light weight and fast detection speed, fully meeting the requirements of infrared spectral characteristics, with excellent stability and high signal-to-noise ratio. It can be widely used for the determination of petroleum and animal & vegetable oils in industrial wastewater, domestic sewage, oil fume and oil mist, soil, and provides accurate and reliable solutions for the detection of oil substances in various samples.
Core Product Features
- Excellent stability: Adopt aluminum alloy casting base with long-term stress aging treatment to ensure the instrument maintains good stability during long-term use and guarantee the consistency of test results.
- Precise wavenumber positioning: Equipped with horizontal and rotating dual wavenumber positioning mechanism with positioning accuracy less than one wavenumber, effectively improving the accuracy of test data.
- Efficient optical & electrical system: Equipped with pulse light source, which can effectively reduce the heating intensity of the light source, help the system heat dissipation, extend the service life of instrument components and improve the reliability of the whole machine; the pre-integrated narrow-band active filter and digital phase-locked amplifier significantly improve the signal-to-noise ratio and make the instrument performance more stable.
- Real-time automatic zero adjustment: The instrument can automatically collect signals separately when the light source flashes on and off to realize real-time automatic zero adjustment, which not only simplifies the operation process but also ensures the long-term stable operation of the instrument.
- Minimal measurement error: Simulating the oil composition in water, the measurement error of standard oil with any composition is less than 3%, which can accurately match the detection needs of actual water samples and provide users with real and effective test data.
- Real-time spectrum display: Support full wavenumber measurement and display spectrum in real time, which is convenient for users to comprehensively and intuitively understand sample information and facilitate subsequent analysis work.
- Professional software support: Equipped with exclusive oil measurement software (software copyright applied), integrating spectrum scanning, analysis, calculation, storage and other functions, with convenient and efficient operation and lower user threshold.
- Flexible and convenient operation: Equipped with large-screen color LCD touch display, supporting both stand-alone independent use and computer connection operation to meet the use needs in different scenarios.
- Strong expandability: Can be upgraded to a fully automatic infrared oil analyzer. After upgrading, it can automatically complete a series of processes such as tetrachloroethylene purity inspection, extractant addition, liquid-liquid extraction, oil-water separation, animal & vegetable oil separation, oil measurement, pipeline cleaning and automatic reagent recovery, further improving detection efficiency.
Technical Parameters
| Technical Index | Specific Parameter |
|---|---|
| Wavenumber scanning range | 3400~2400cm⁻¹ |
| Wavenumber accuracy | ±1cm⁻¹ |
| Wavenumber repeatability | ±1cm⁻¹ |
| Detection limit | ≤0.02mg/L |
| Measurement repeatability | <2% |
| Measurement accuracy | ±2% |
| Absorbance linear range | 0.0000~1.9999AU |
| Correlation coefficient | R>0.999 (Infrared non-dispersive method) |
| Measurement range | 0.02~800mg/L (Enriched oil concentration in water) |
| Minimum detectable concentration | 0.001mg/L |
| Baseline drift | <1%/4h |
| Measurement error of different ratios | <3% |
| Communication interface | RS232, USB |
| Overall dimension | 540×310×200mm |
| Weight | 14Kg |
| Power supply | 220V±20V, 50Hz±1Hz, 40W |
| Working humidity | <80% |
| Working temperature | 5~35°C |
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
