Description

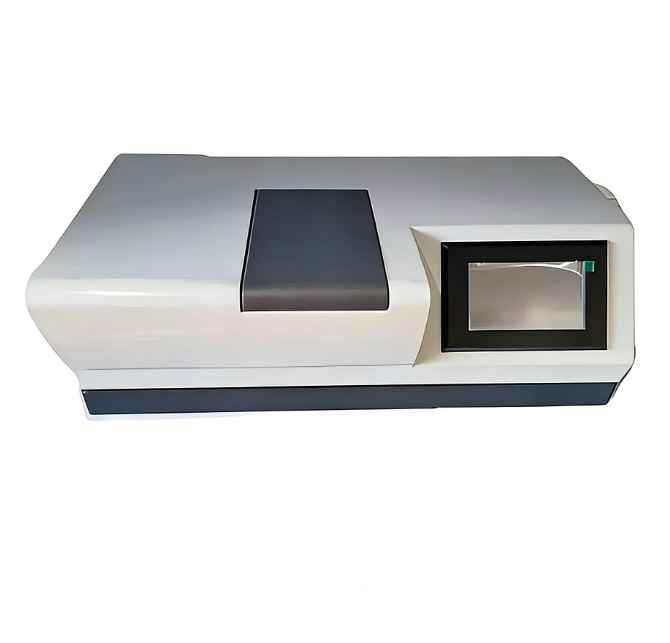

Atomfair IR-Oil 840 Infrared Oil Analyzer
Product Overview
Atomfair IR-Oil 840 is a professional oil testing instrument developed in accordance with international standards, featuring compact size, light weight, integrated optical system design, excellent stability and high signal-to-noise ratio. It is suitable for the determination of petroleum, animal and vegetable oils in industrial wastewater, domestic sewage, oil fume, oil mist and soil, providing reliable and efficient testing solutions for environmental monitoring, water quality analysis and soil testing scenarios.
Core Advantages
1. Dual-purpose & Flexible Adaptation: Adopt cast aluminum alloy base with natural aging treatment, small size and light weight. It can be used as a fixed laboratory instrument or a portable device for on-site testing, suitable for multi-scenario testing needs.
2. Stable & Accurate with Reliable Data: Equipped with integrated optical system with short optical path and high energy, strong stability and high signal-to-noise ratio. The original automatic switching mechanism between sample cell and reference cell can realize precise positioning, eliminate errors, stabilize measurement results and achieve automatic zero adjustment.
3. Precise & Efficient Wave Number Positioning: Adopt cosecant principle for precise wave number positioning and scanning, with wave number positioning accuracy < 1 wave number to ensure the accuracy of detection data.
4. Practical Performance with Controllable Error: Simulate oil components in water, the measurement error of standard oil with any composition is < 5%, which can effectively meet the actual testing needs of water samples.
5. Convenient Operation & Intelligent: Equipped with large screen color LCD touch display, supporting stand-alone operation and computer connection. Full wave number measurement with real-time spectrum display for users to fully grasp sample information. Equipped with proprietary oil testing software (software copyright applied), integrating spectrum scanning, analysis, calculation and storage to simplify the operation process.
Technical Parameters
Technical Index Specification Parameters
Wave Number Scanning Range 3400~2400cm⁻¹
Wave Number Accuracy ±1cm⁻¹
Wave Number Repeatability ±1cm⁻¹
Detection Limit ≤0.02mg/L
Measurement Repeatability <2%
Measurement Accuracy ±2%
Absorbance Linear Range 0.0000~1.9999AU
Measurement Range (Enriched Oil Concentration in Water) 0.02~800mg/L
Minimum Detectable Concentration (Enriched Oil Concentration in Water) 0.002mg/L
Baseline Drift <1%/4h
Measurement Error of Different Ratios <5%
Communication Interface RS232, USB
Overall Dimension (mm) 540×246×160
Weight (Kg) 13
Power Supply 220V±20V, 50Hz±1Hz, 40W
Working Humidity <80%
Working Temperature 5~35°C
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
