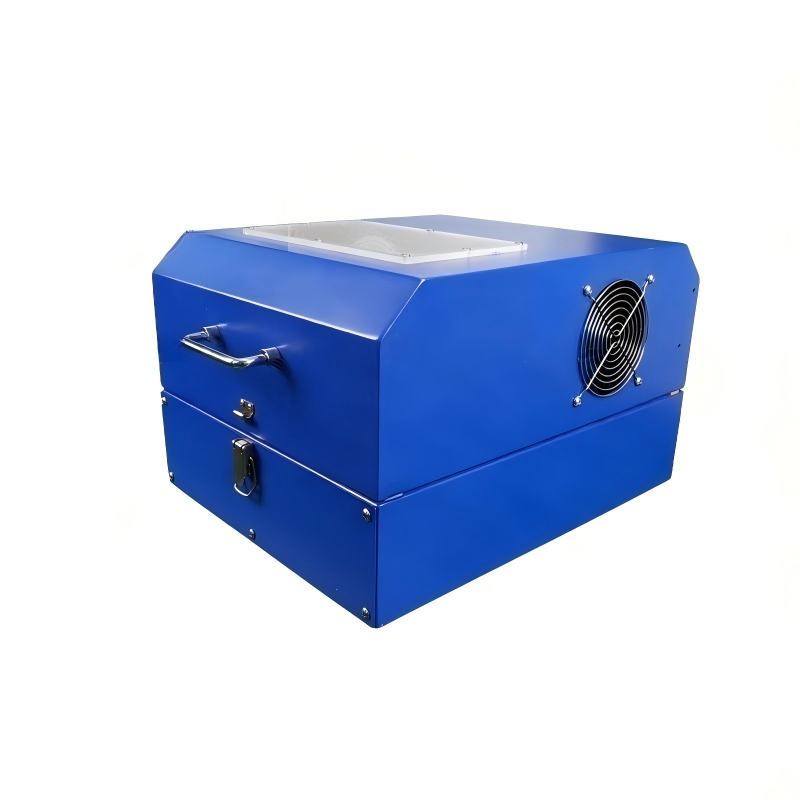

Atomfair High-Speed Vibrating Ball Mill Product Information

Model: Atomfair-HSVM-638

Product Overview

This is a high-speed vibrating ball mill. It can grind or mix various solids, suspensions and pastes of different particle sizes and materials by dry and wet methods. It is a high-efficiency small instrument for the preparation of small and micro samples in the laboratory, suitable for laboratory research and small-batch sample processing scenarios.

Key Features

• Small size, light weight, high grinding efficiency and excellent cost performance, easy to place and move in the laboratory.
• Specially designed for the preparation of small and micro samples in the laboratory to meet the needs of experimental precision.
• Multi-functional, can realize material grinding, mixing and mechanical alloying, adapting to various experimental needs.
• Simple operation, stable operation, easy to clean, and strong adaptability to various laboratory working conditions.
• Environmentally friendly with no pollutant emissions, supporting both dry and wet ball milling modes for flexible use.

Technical Specifications

Parameter Name	Specific Specifications
Rated Voltage	AC220V/50HZ
Rated Power	180W
Timing Range	0-120 minutes
Vibration Frequency	1200 cycles per minute
Feed Particle Size	<1mm
Discharge Particle Size	Minimum up to 0.1μm
Maximum Loading Capacity per Jar	1/3 of the ball mill jar volume
Overall Dimensions	405×265×260mm
Standard Accessories	1 piece of 80ml stainless steel mixing jar; several mixing balls

If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
