Description

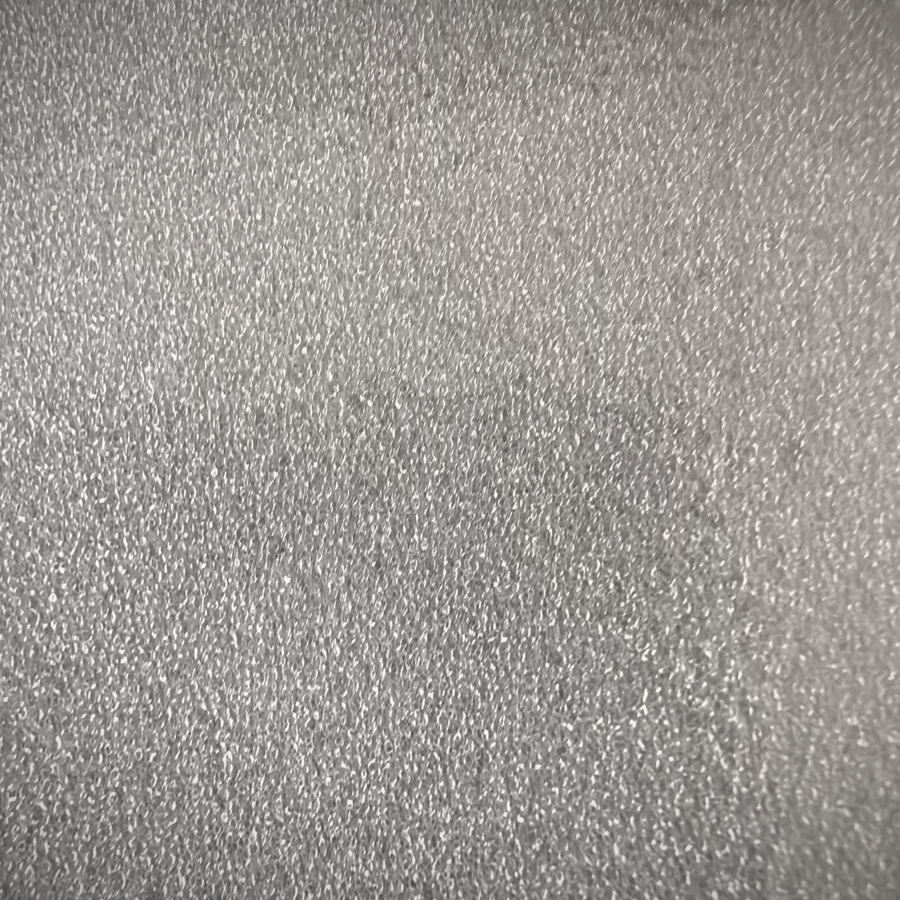

Foam Cobalt Product Information
I. Basic Technical Specifications
| Specification Type | Details/Ranges |
|---|---|
| Product Name | Foam Cobalt |
| Thickness | 1~2 mm (Standard); 0.3~2.0 mm (Customizable) |
| PPI (Pore Density) | 110~130 ppi |
| Porosity | 95~98% |
| Open Pore Rate | >98% |
| Pore Size | 0.2~0.3 mm (Corresponding to 110~130 ppi) |
| Purity | 99.9% |
| Areal Density | 100~2000 g/m² |
| Bulk Density | 0.1~2.0 g/cm³ |
| Dimension Specification | Sheet form; Maximum size: 300mm×500mm |
Available Standard Sizes (Pure Foam Cobalt)
| Length (mm) | Width (mm) | Thickness (mm) | Remarks |
|---|---|---|---|
| 10 | 10 | 0.5~2.0 | Customizable |
| 20 | 20 | 0.5~2.0 | Customizable |
| 50 | 50 | 0.3 | Standard |
| 50 | 50 | 0.5 | Standard |
| 50 | 50 | 1.0 | Standard |
| 50 | 50 | 1.5 | Standard |
| 50 | 50 | 2.0 | Standard |
| 100 | 100 | 0.3 | Standard |
| 100 | 100 | 0.5 | Standard |
| 100 | 100 | 1.0 | Standard |
| 100 | 100 | 1.5 | Standard |
| 100 | 100 | 2.0 | Standard |
II. Core Features
- Superior Sound Absorption: Porous structure enables diffuse reflection of sound waves and micro-pore noise reduction, delivering excellent muffling effects;
- Ultra-High Specific Surface Area: Outperforms other porous materials in specific surface area under the same open pore rate;
- Efficient Electromagnetic Shielding: Provides effective shielding against a certain range of electromagnetic waves;
- Easy Processability: Facilitates mechanical processing such as cutting, stamping, and bending;
- Exceptional High-Temperature Resistance & Fire Retardancy: Maintains structural stability at temperatures above 1100℃ and is non-flammable;
- High Thermal Conductivity: Uniform pore structure ensures rapid heat transfer after heating;
- Excellent Air Permeability: Offers stable flow performance for gases and fluids, suitable for filtration applications;
- Superior Corrosion Resistance: Resists corrosion from various acids and alkalis, with strong environmental adaptability.
III. Main Application Fields
- Chemical Power Source Field: Fuel cell electrode materials;
- Chemical Engineering Field: Catalysts and their carriers, filtration media, separator media (e.g., oil-water separators, automotive exhaust purifiers, air purifiers), distillation column packings, condenser heat exchange materials;
- Electrochemical Engineering Field: Water electrolysis for hydrogen production, electrocatalytic processes, electrochemical metallurgy, etc.;
- Thermal Engineering Field: Damping materials, high-efficiency thermal conductive materials;
- Functional Materials Field: Sound absorption, vibration damping, buffering, electromagnetic shielding, stealth technology applications, flame retardancy, thermal insulation.
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
