Atomfair-FTIR-857 Fourier Transform Infrared Spectrometer
1. Product Overview
Atomfair-FTIR-857 Fourier Transform Infrared Spectrometer is a high-performance universal analytical instrument with core performance complying with international standards, widely used in pharmaceutical, chemical, material testing, university teaching and other fields. One of its core applications is the corrected emissivity testing of architectural glass, combined with shading coefficient testing system, it can accurately measure key optical and thermal parameters such as visible light transmittance and direct solar transmittance. Compatible with architectural glass, automotive glass, films, coatings and other samples, it has the advantages of high detection accuracy, strong stability and wide sample compatibility, providing comprehensive and reliable analytical support for scientific research experiments and industrial quality control.
2. Core Features
- Stable long-life light source: Equipped with imported high-intensity air-cooled ceramic infrared light source with stable luminescence and long service life, ensuring the consistency of energy output during long-term testing.
- High-precision detection configuration: Adopting imported low-noise DLATGS detector with high sensitivity, suitable for trace substance analysis; standard equipped with 32mm multi-layer germanium-plated KBr beamsplitter (with moisture-proof coating), ZnSe beamsplitter is optional for flexible adaptation to different test requirements.
- Efficient optical design: Michelson self-compensating interferometer greatly improves the utilization efficiency of optical energy; all-aluminum optical base with stable structure effectively reduces external interference and ensures detection accuracy.
- Wide sample compatibility: 200x175x153mm large-capacity sample chamber, supporting various infrared accessories such as ATR, solid, liquid, reflection and variable angle, suitable for testing multi-form and multi-type samples.

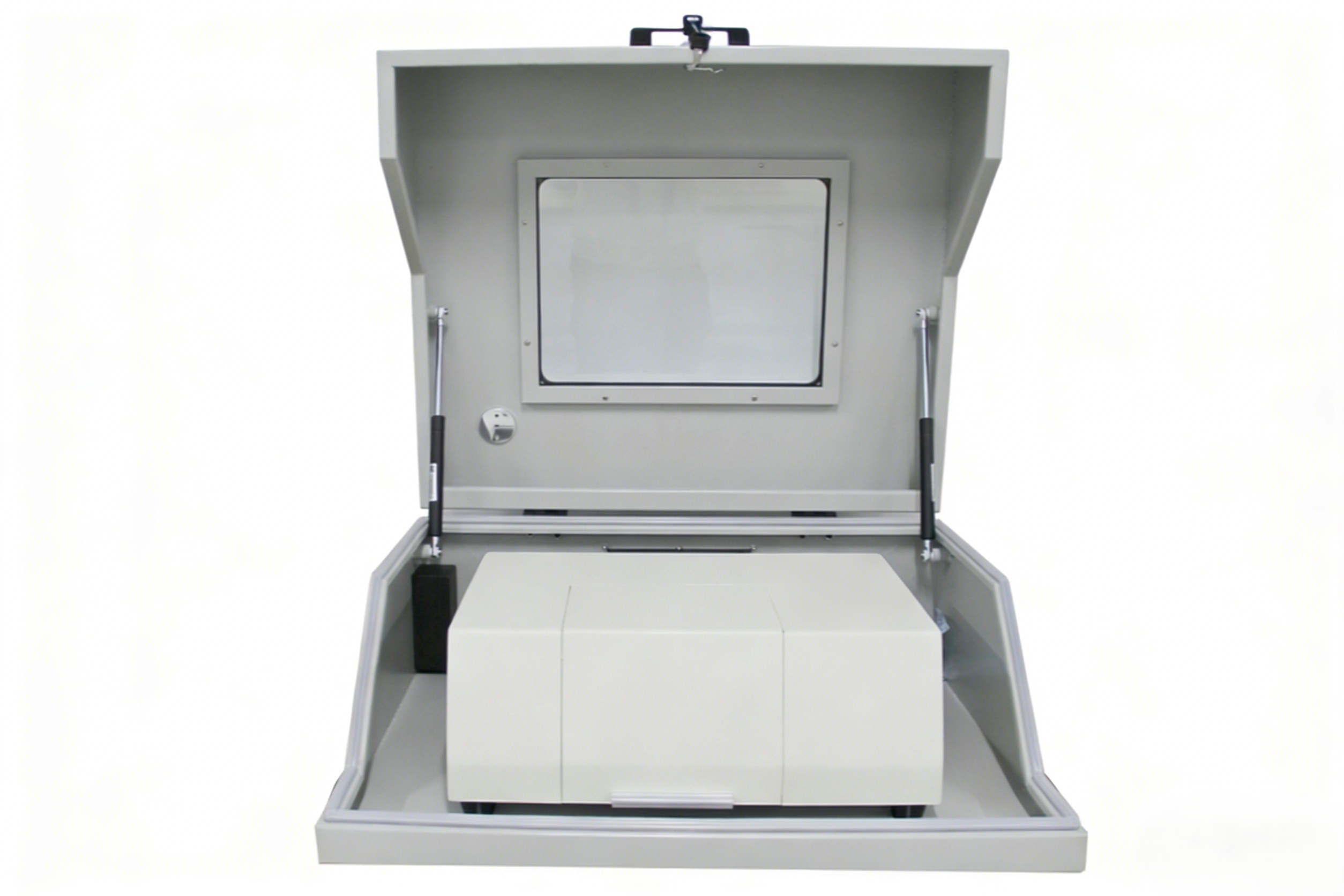

- Complex environment adaptation: Multi-layer sealed structure with desiccant visible window, can be used with special dehumidification drying box, stable operation in humid and dusty environment with strong environmental adaptability.
- Anti-interference protection: All-metal shell design effectively shields external electromagnetic interference, ensuring the stable operation of the instrument in complex industrial or laboratory environments.
- Convenient maintenance operation: Interferometer energy supports external adjustment with simple and efficient maintenance process, reducing use and maintenance costs; USB communication interface for stable and convenient data transmission.
- Intelligent compliant software: Support Chinese and English operation interface, compatible with Windows 11 64-bit and above systems; built-in industry-specific test modules, support multi-format data export and infrared spectral database calling, comply with GMP/GLP specifications and provide 3Q certification service.
- Flexible function expansion: Optional wifi function and data cloud function can be selected on demand to meet the needs of remote operation and data management, adapting to digital detection scenarios.
3. Specification Parameters
| Item | Detailed Parameters |
|---|---|
| Model No. | Atomfair-FTIR-857 |
| Scanning Range | 4000-400cm⁻¹ |
| Light Source | Imported high-intensity air-cooled ceramic infrared light source |
| Detector | Imported low-noise DLATGS detector |
| Beamsplitter | Standard: 32mm multi-layer germanium-plated KBr beamsplitter (with moisture-proof coating); Optional: ZnSe beamsplitter (moisture-proof) |
| Interferometer | Michelson self-compensating type |
| Optical Base | All-aluminum |
| Sample Chamber Dimension (L×H×W) | 200×175×153mm |
| Overall Dimension (L×H×W) | 486×360×190mm |
| Weight | 20kg |
| Working Voltage | AC220V / DC12V, 40W |
| Communication Interface | USB |
| Ambient Temperature | 15-28℃ |
| Relative Humidity | ＜65% (No condensation) |
| Dust & Moisture Protection | Multi-layer sealed structure with desiccant visible window |
| Operating System | Windows 11 (64-bit and above) |
| Software Function | Chinese & English interface, industry-specific test modules, multi-format data export, infrared spectral database, GMP/GLP compliance, 3Q certification service |
| Optional Functions | Wifi function, Data cloud function |
| Compatible Samples | Architectural glass, automotive glass, films, coatings, pharmaceutical raw materials/excipients/packaging materials, inorganic compounds, molecular materials, etc. |
4. Typical Applications
- Architectural & Automotive field: Corrected emissivity testing of architectural glass, optical parameter measurement of automotive glass, combined with relevant systems to detect thermal and optical parameters such as shading coefficient, visible light/solar/ultraviolet transmittance.
- Pharmaceutical industry: Identification and component analysis of pharmaceutical raw materials, excipients and packaging materials to ensure drug quality and safety, meeting industry compliance requirements.
- Chemical field: Detection of inorganic compounds (metal oxides, borate minerals, catalysts, etc.), component and structural analysis of molecular materials (plastics, rubber, resins, etc.).
- Material testing: Performance testing and component identification of films, coatings and other materials, providing data support for material research and development and quality control.
- University teaching: Experimental teaching related to infrared spectral analysis, helping students master the principle and operation method of spectral detection, adapting to the integrated needs of scientific research and teaching.
- Research institutes: Structural analysis, component identification and trace substance detection of various substances to support the development of multidisciplinary scientific research projects.
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
