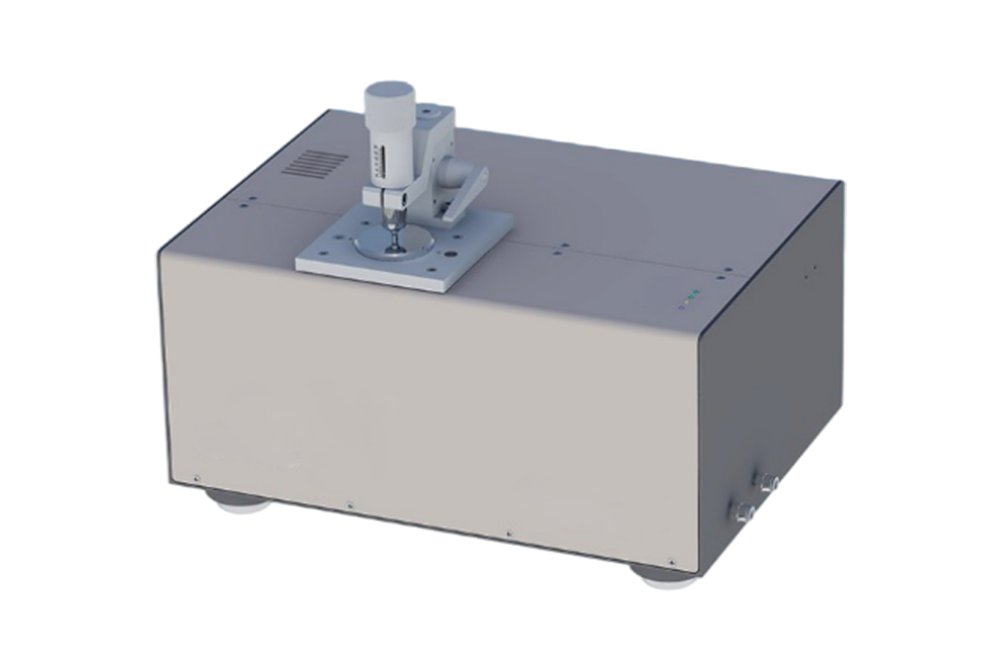

Atomfair FTIR 847 – Compact Fourier Transform Infrared Spectrometer
Product Overview
Atomfair FTIR 847 is a compact Fourier Transform Infrared Spectrometer with high performance and cost-effectiveness. Adopting field-proven mature FTIR technology and oscillating roof mirror interferometer, it features small and light body with small floor space, flexible deployment in laboratories, production workshops, warehouses and other scenarios. It supports transmission, reflection and ATR measurement modes, combined with powerful dedicated software, an ideal analytical solution for industrial, government and academic laboratories.
Core Features
- Compact and portable design: Small body with only 35 × 25 cm floor space and net weight of 14kg, easy to move and deploy, suitable for multi-scenario use needs.
- Multi-mode measurement: Built-in structured sample chamber, compatible with a variety of accessories, support transmission, reflection and ATR measurement, suitable for diversified sample analysis.
- High-performance configuration: Standard resolution up to 1 cm-1, optional 0.5 cm-1 high resolution, 24-bit high-speed data acquisition system to ensure accurate and efficient data.
- Flexible adaptability: Equipped with multiple beam splitter options such as multi-coated KBr/ZnSe/Fused Silica, covering a wide spectral range of infrared and near-infrared, suitable for different testing needs.
- User-friendly operation: USB2.0 high-speed data interface with dedicated analysis software, simple and easy operation, efficient and stable data transmission.
Technical Specifications (International Standard)
| Infrared Wavelength Range | 7000 – 400 cm-1 (KBr optical device) |
| ZnSe Wavelength Range | 5000 – 600 cm-1 (ZnSe optical device) |
| Near Infrared Wavelength Range | 14000 – 3850 cm-1 |
| Resolution | Standard: 1 cm-1; Optional: 0.5 cm-1 |
| Beam Splitter Configuration | Standard IR: Multi-coated KBr; Optional IR: Multi-coated ZnSe; Standard NIR: Fused Silica |
| Light Source Type | Infrared: Ceramic Light Source; Near Infrared: Quartz Halogen Lamp |
| Interface Type | USB2.0 |
| Data Acquisition System | 24-bit, High-speed |
| Power Supply Specification | 12 VDC, 25W |
| Physical Dimensions (W × D × H) | 35 cm × 25 cm × 18 cm |
| Floor Space | 35 × 25 cm |
| Net Weight | 14 kg |
| Operating Temperature | 15 – 28 °C |
| Operating Humidity | < 65% Relative Humidity |
Application Fields
Industrial quality control, on-site testing in production workshops, scientific research analysis in academic laboratories, testing and certification in government agencies, qualitative and quantitative analysis of material composition, mobile testing tasks in multiple scenarios.
