Description

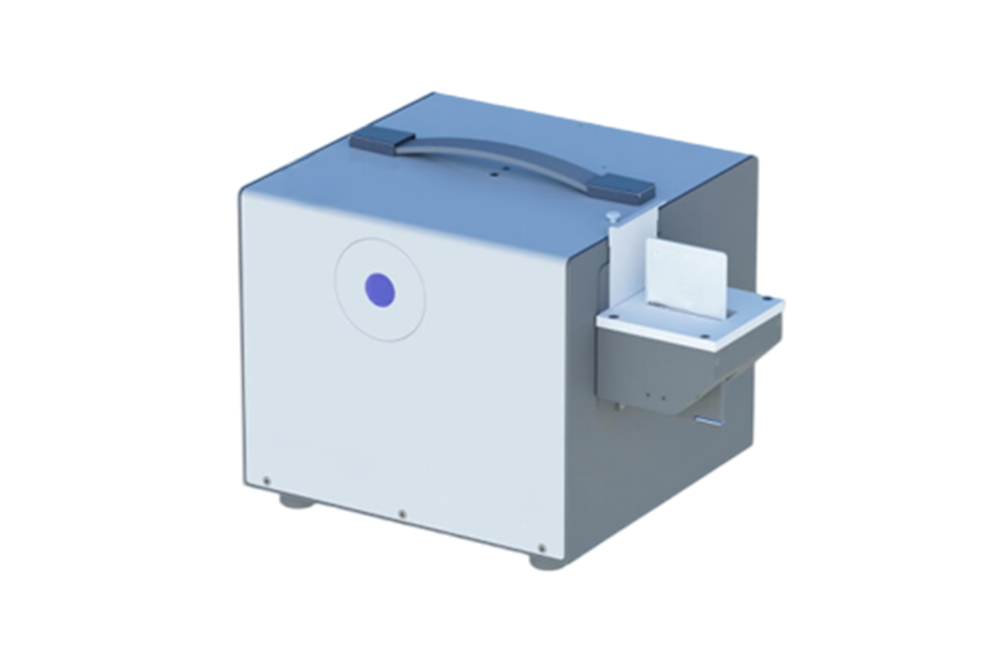

Atomfair FTIR 857 Compact Fourier Transform Infrared Spectrometer
Product Overview
Atomfair FTIR 857 Compact Fourier Transform Infrared Spectrometer delivers excellent performance with compact size and cost-effective price. It combines flexible off-instrument sample handling with advanced software, which is an ideal solution for industrial, government and academic laboratories.
Instrument Features
- Adopt field-proven FTIR technology consistent with other Interspec FTIR models, equipped with pendulum roof mirror interferometer.
- Lightweight design with small footprint, can be flexibly carried to any place where testing is needed — from busy laboratories to production workshops or warehouses.
Specifications & Parameters
- Infrared Wavelength Range: 7000 – 400 cm⁻¹
- Zinc Selenide (ZnSe) Wavelength Range: 5000 – 600 cm⁻¹
- Resolution: 2 cm⁻¹
- Interferometer: Pendulum type
- Standard Infrared Beam Splitter: Multi-coated KBr
- Optional Infrared Beam Splitter: Multi-coated ZnSe
- Frequency Reference: VCSEL laser
- Infrared Light Source: Ceramic
- Equipped with Dry Box: Yes
- Interface: USB
- Data Acquisition System: 24-bit, high-speed
- Power Supply: 12 VDC, 30W
- Spectrometer Dimensions (W×D×H): 22×21×19 cm
- Sampling Unit Dimensions (W×D×H): 8×8×5(16) cm
- Footprint: 21×22 cm
- Weight: 10 kg
- Temperature Environment: 15 – 28℃
- Humidity Environment: Not less than 65%
Basic Configuration
Software
Customization Service
Exclusive configuration parameters can be customized according to different experimental research, industrial testing or academic research needs of customers.
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
