Description

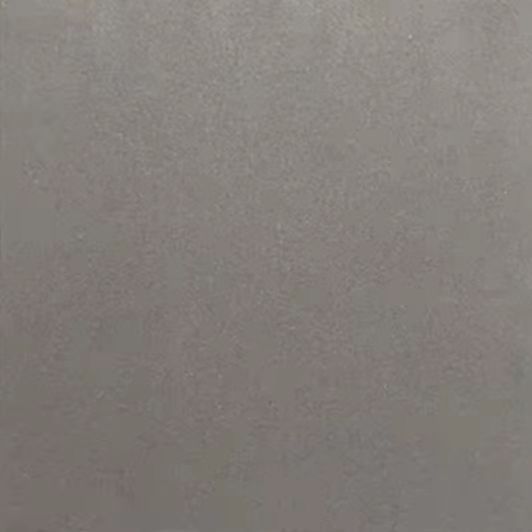

Foam Stainless Steel Filter Plate
1. Basic Technical Parameters
| Parameter Name | Specification |
|---|---|
| Product Name | Foam Stainless Steel Filter Plate |
| Plate Thickness | 1.0-45 mm (Customizable on demand) |
| Filtration Precision | 0.5 μm – 100 μm |
| Disc Diameter | φ3 mm – φ500 mm (Customizable on demand) |
| Porosity | 20% – 50% |
| Permeability | 3 – 1300 m³/(m²·h·kPa) |
| Processing Methods | Wire cutting, laser cutting, gas cutting (Processable as per customer drawings) |
| Packaging Methods | Vacuum packaging, carton packaging, wooden case packaging |
2. Standard Dimension Specifications
| Length (mm) | Width (mm) | Thickness (mm) |
| 50 | 50 | 1.0 |
| 100 | 100 | 1.5 |
| 50 | 50 | 2.5 |
| 100 | 100 | 3.0 |
| 50 | 50 | 5.0 |
| 100 | 100 | 10.0 |
| 100 | 100 | 1.0 |
| 50 | 50 | 2.0 |
| 100 | 100 | 2.5 |
| 50 | 50 | 4.0 |
| 100 | 100 | 5.0 |
| 50 | 50 | 1.5 |
| 100 | 100 | 2.0 |
| 50 | 50 | 3.0 |
| 100 | 100 | 4.0 |
| 50 | 50 | 10.0 |
3. Product Overview
Stainless steel powder sintered filter materials (including tubular and plate types) are micro-filtration elements made from 316L stainless steel powder through sieving, molding, and sintering processes. We can customize porous elements in various shapes (e.g., covers, caps, sheets, tubes, rods), structures, particle sizes, and porosities according to customer requirements. As a new type of filter material with broad development prospects, it integrates advanced material formulation and specialized molding technology, featuring high filtration precision, excellent air permeability, high mechanical strength, high material utilization rate, and good resistance to high-temperature shock. It operates stably under complex working conditions and is widely used in pharmaceutical & food, water treatment, bioengineering, petrochemical, metallurgical & environmental protection, and gas purification fields.
4. Core Performance Features
- High Temperature Resistance: Operates normally below 500℃ with excellent thermal shock resistance.
- High Filtration Precision: Stable pore structure effectively removes suspended solids, particles, and other impurities, ensuring superior purification effect. No particle shedding to avoid secondary contamination of raw liquids.
- Excellent Air Permeability: High porosity, uniform pore size, low initial resistance, and low pressure loss, enabling large flow rate. Suitable for both pressure filtration and suction filtration with simple operation.
- Superior Regeneration Performance: Easy to backwash and clean, supports online regeneration, exhibits strong regeneration capability, and has a long service life.
- High Mechanical Strength: Excellent rigidity and plasticity, no additional framework support required. Easy to install, use, and maintain; compatible with welding, bonding, and mechanical processing, featuring strong assemblability.
- Strong Corrosion Resistance: Stable performance in complex media such as nitric acid, sulfuric acid, acetic acid, oxalic acid, phosphoric acid, 5% hydrochloric acid, molten sodium, liquid hydrogen, liquid ammonia, hydrogen sulfide, acetylene, water vapor, and hydrogen.
- Advanced Molding Technology: Integral structure with maximum non-welded length up to 1200mm. One-step molding without cutting, high raw material utilization rate, suitable for mass production of complex-structured elements.
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
