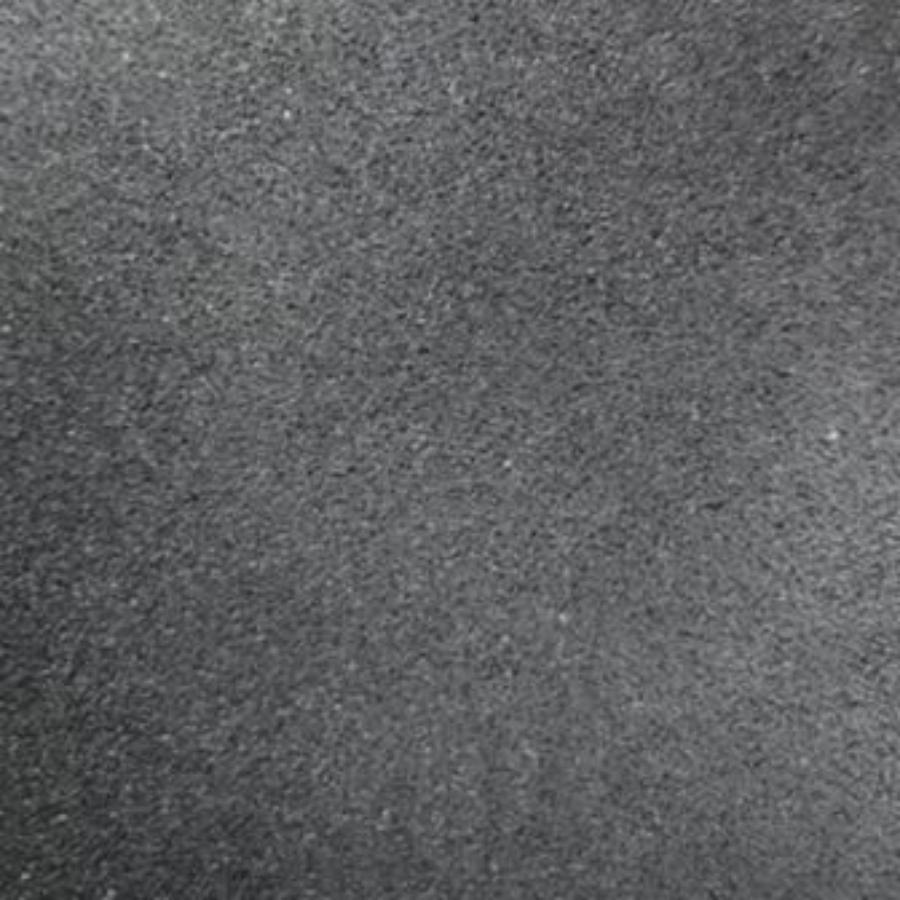

Foam Nickel-Molybdenum (Ni-Mo Foam)
I. Core Product Introduction
As a high-performance electrocatalytic hydrogen evolution electrode, foam nickel-molybdenum features a nickel-based porous alloy core. Through optimized structural design and alloying technology, it delivers exceptional electrocatalytic hydrogen evolution performance. Its core advantages are as follows:
- Structural Optimization for Enhanced Activity: Precisely engineered pore structure and increased electrode roughness significantly expand the real surface area, multiply catalytic active sites, and greatly boost apparent catalytic activity.
- Alloy Synergy for Performance Enhancement: Multi-element alloying technology creates a distinct electrocatalytic synergistic effect, endowing the electrode with superior hydrogen evolution activity and lower hydrogen evolution overpotential.
- Ultra-Long Stable Operation: Rigorously tested to maintain stable hydrogen evolution activity for over 10,000 hours under electrolysis conditions without degradation.
- Advanced Process Guarantee: Manufactured via continuous electrodeposition, ensuring excellent material consistency, outstanding electrolytic stability, and meeting large-scale application requirements.
Ni-Mo Foam Dimension Table
| Length (mm) | Width (mm) | Thickness (mm) | Pore Size (PPI) |
|---|---|---|---|
| 100 | 110 | 1.0 | 110 |
| 100 | 110 | 0.4 | 110 |
| 100 | 110 | 1.6 | 85 |
| 200 | 300 | 1.0 | 110 |
| 100 | 110 | 0.8 | 110 |
| 100 | 110 | 0.3 | 110 |
| 100 | 110 | 1.8 | 110 |
| 200 | 300 | 1.8 | 110 |
| 100 | 110 | 0.5 | 110 |
| 100 | 110 | 0.2 | 110 |
| 200 | 300 | 1.6 | 85 |
II. Main Specifications
| Category | Details |
|---|---|
| Product Name | Foam Nickel-Molybdenum (Ni-Mo Foam) |
| Dimensions | Width: 100mm-960mm (continuous roll/sheet form), customizable cutting available |
| Thickness | 1.0mm-4.0mm |
| Material | Nickel/Molybdenum |
| Composition | Nickel: 85% / Molybdenum: 15% |
| Porosity | >75% (50PPI~130PPI) |
| Open Pore Rate | >95% |
| Areal Density | 200-600g/m² |
| Other Specs | Custom specifications available upon request |
III. Overview and Key Properties of Ni-Mo Foam Alloy
1. Material Overview
Manufactured through a multi-step precision process using continuous polyurethane foam as the substrate: Vacuum Physical Vapor Deposition (PVD) of Ni thin film → Electrodeposition of uniform Ni coating → Ni-Mo alloy deposition → Sintering reduction. It serves as the core substrate for high-performance hydrogen evolution electrodes.
2. Key Properties
- Abundant 3D porous structure with porosity up to 95%, providing sufficient space for catalytic reactions.
- Strong bonding between the alloy deposit layer and substrate, excellent material consistency, and stable quality control during mass production.
- Extra-large specific surface area, maximizing the exposure of catalytic active sites for efficient hydrogen evolution.
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
