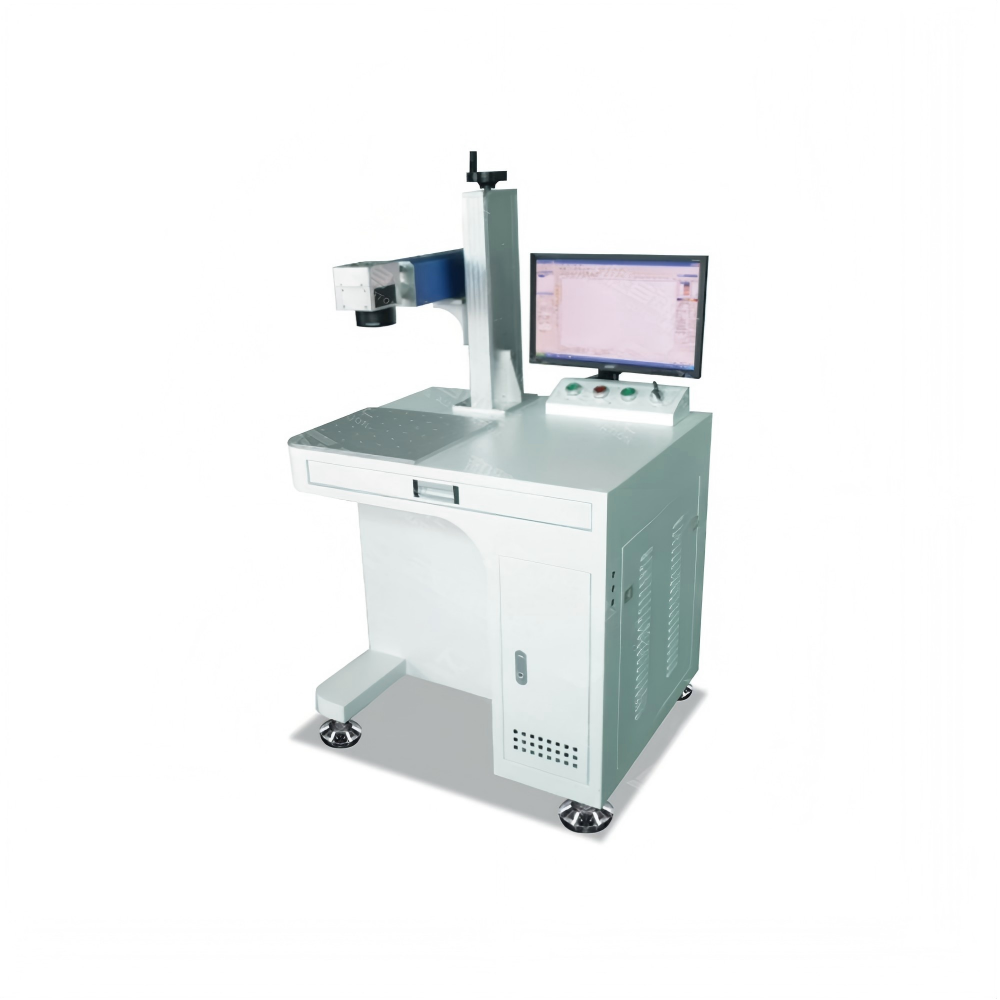

Atomfair Fiber Laser Marking Machine Product Information
Product Model
Atomfair-FLM-920
Release Date
2022-03-01
Version
V2.0
Product Overview
Suitable for marking and coding on the shells of batteries and supercapacitors, with high speed, stability, low cost and long service life.
Key Features
- Compact integrated design, small size, easy to move and install, saves space.
- Air-cooled, maintenance-free, stable and reliable.
- High electro-optical conversion efficiency, no consumables, low operating cost.
- Fiber laser life over 100,000 hours.
- High marking speed up to 600 characters per second.
- Supports static desktop marking and dynamic online flying marking.
Technical Specifications
- Laser wavelength: 1060 nm
- Repetition rate: 0–100 kHz
- Beam quality: < 3
- Marking speed: ≤ 7000 mm/s
- Min. line width: 0.01 mm
- Min. character: 0.15 mm
- Repeat accuracy: ± 0.002 mm
- Power supply: 90–260V AC 1PH 50/60Hz
- Power consumption: 500W
- Marking depth: ≤ 0.3 mm
- OS: Win98 / Win2000 / WinXP
- Cooling: built-in air cooling
- Interface: standard USB
- Marking area: 30×30 mm – 300×300 mm (optional)
- File format: all Windows system fonts
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
