Atomfair Fiber Optic Coupling Sample Holder Series – Professional Optical Measurement Solutions
Product Overview
Elevate your optical measurement accuracy with the Atomfair Fiber Optic Coupling Sample Holder Series—precision-engineered for monochromators and spectrometers. Designed to meet international standards, this series offers versatile options for transmission, fluorescence, and reflection spectrum analysis, ideal for laboratories, industrial quality control, and material research worldwide.
Product Lineup & Core Specs
| Product Code | Product Name | Key Features | Core Functions |
|---|---|---|---|

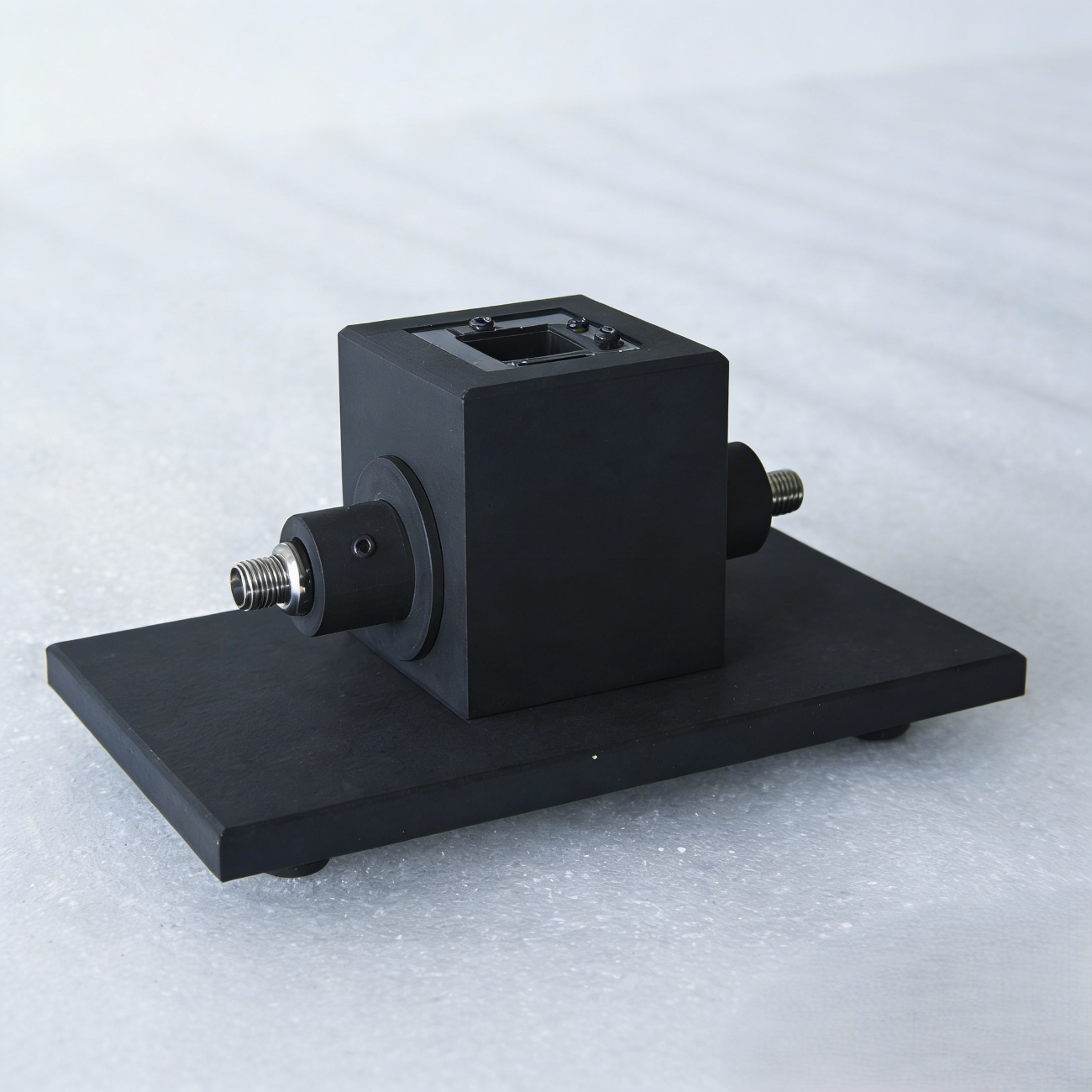

| Atomfair TCF 369 | Two-Way Transmission Cuvette Holder | Fits 10×10 international standard cuvettes; SMA905 standard interface; Quartz lens coupling | Measures transmission spectra |
| Atomfair TCF 721 | Three-Way Transmission Cuvette Holder | Fits 10×10 international standard cuvettes; SMA905 standard interface; Quartz lens coupling | Measures transmission spectra & fluorescence spectra |
| Atomfair FTCF 514 | Two-Way Transmission Cuvette Holder with Filter Slot | Built-in filter slot; SMA905 standard interface; Quartz lens coupling | Measures transmission spectra (supports filter-based testing) |
| Atomfair FTCF 837 | Three-Way Transmission Cuvette Holder with Filter Slot | Built-in filter slot; SMA905 standard interface; Quartz lens coupling | Measures transmission spectra & fluorescence spectra (supports filter-based testing) |
| Atomfair RS 295 | Reflection Sample Holder | Clamps “Y”-shaped fibers (max 6.5mm fiber head); 50mm vertical adjustment; Concentric ring positioning | Measures reflection spectra (for flat samples up to 120mm diameter) |
Key Features (All Models)
- International Standard Compatibility: Universal SMA905 interfaces work seamlessly with global fiber jumpers; 10×10 cuvette compatibility (transmission models) ensures easy integration with existing lab equipment.
- Precision Optical Design: Quartz lens coupling systems guarantee uniform light distribution, delivering consistent, reliable measurement results.
- Durable & User-Friendly: High-quality stainless steel construction (adjustable columns) for long-term use; intuitive positioning aids (concentric rings) and tool-free adjustments save time.
Application Scenarios
Perfect for a wide range of optical testing needs:
- Scientific research (universities, research institutes): Material spectrum analysis, fluorescence research.
- Industrial quality control: Optical component inspection, coating reflectivity testing, transparent material transmittance verification.
- Medical & biochemical testing: Fluorescent substance analysis, sample transmittance measurement.
- Electronic manufacturing: Optical sensor performance testing, display panel spectrum analysis.
Why Choose Atomfair?
- Versatility: 5 specialized models cover transmission, fluorescence, and reflection measurements—one series for multiple testing requirements.
- Global Compatibility: Fully compliant with international optical standards, no adapter needed for global lab setups.
- Reliable Performance: Quartz lens coupling and precision machining ensure low measurement error and high repeatability.
- Ergonomic Design: Lightweight yet sturdy, with clear labeling and easy adjustments for both novice and professional users.
Technical Notes (Quick Reference)
| Parameter | Specification |
|---|---|
| Cuvette Compatibility (Transmission Models) | 10×10mm international standard |
| Interface Type | SMA905 (universal fiber jumper compatible) |
| Max Sample Diameter (Reflection Model) | 120mm (flat samples) |
| Fiber Head Compatibility (Reflection Model) | Up to 6.5mm (“Y”-shaped fibers) |
| Vertical Adjustment Range (Reflection Model) | Approx. 50mm |
| Core Optical Component | Quartz lens (for uniform light coupling) |
Note: All dimensions and specifications follow international optical measurement equipment standards. For custom requirements or technical support, contact our global service team.
