Atomfair FCS-246 2000W PEM Fuel Cell Stack

Product Overview

Atomfair FCS-246 is a 2kW PEM fuel cell system designed for vehicle power and large-capacity mobile energy supply. It provides stable power for applications needing higher continuous output than portable fuel cells.

This system supports high electric loads, ideal for hydrogen forklifts, 3-wheel logistics vehicles, golf carts, and UAV ground power. It enables on-demand power generation with low noise and zero emissions, suitable for outdoor backup power and off-grid facilities.

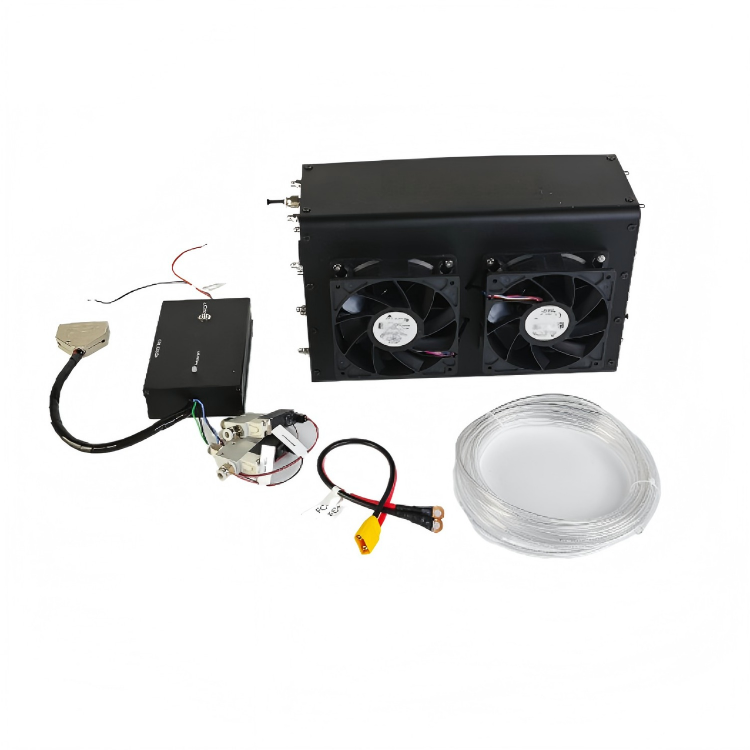

Component List

• Fuel cell stack (with fan)
• Fuel cell controller
• TPU or PTFE tubing
• Air intake solenoid valve
• Pressure sensor
• Current sensor

Applications

• Hydrogen-powered forklifts
• 3-wheel logistics vehicles
• Golf carts
• UAV ground support power
• Outdoor mobile backup power
• Industrial, warehouse and off-grid power supply

Technical Specifications

• Power: 2000 W
• Operating voltage: 40 V – 74 V
• Operating current: 0 A – 56.4 A
• Efficiency: > 40%
• Hydrogen consumption: 35 L/min at 56.4 A
• Hydrogen purity: ≥ 99.99% (CO < 1 ppm)
• Hydrogen pressure: 0.035 MPa – 0.05 MPa
• Operating temperature: 0 – 35 ℃
• Operating humidity: 10% – 90%
• Storage temperature: 0 – 60 ℃
• Number of cells: 80
• Dimensions: 152 × 202 × 315 mm
• Weight: 6390 g

If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
