Description

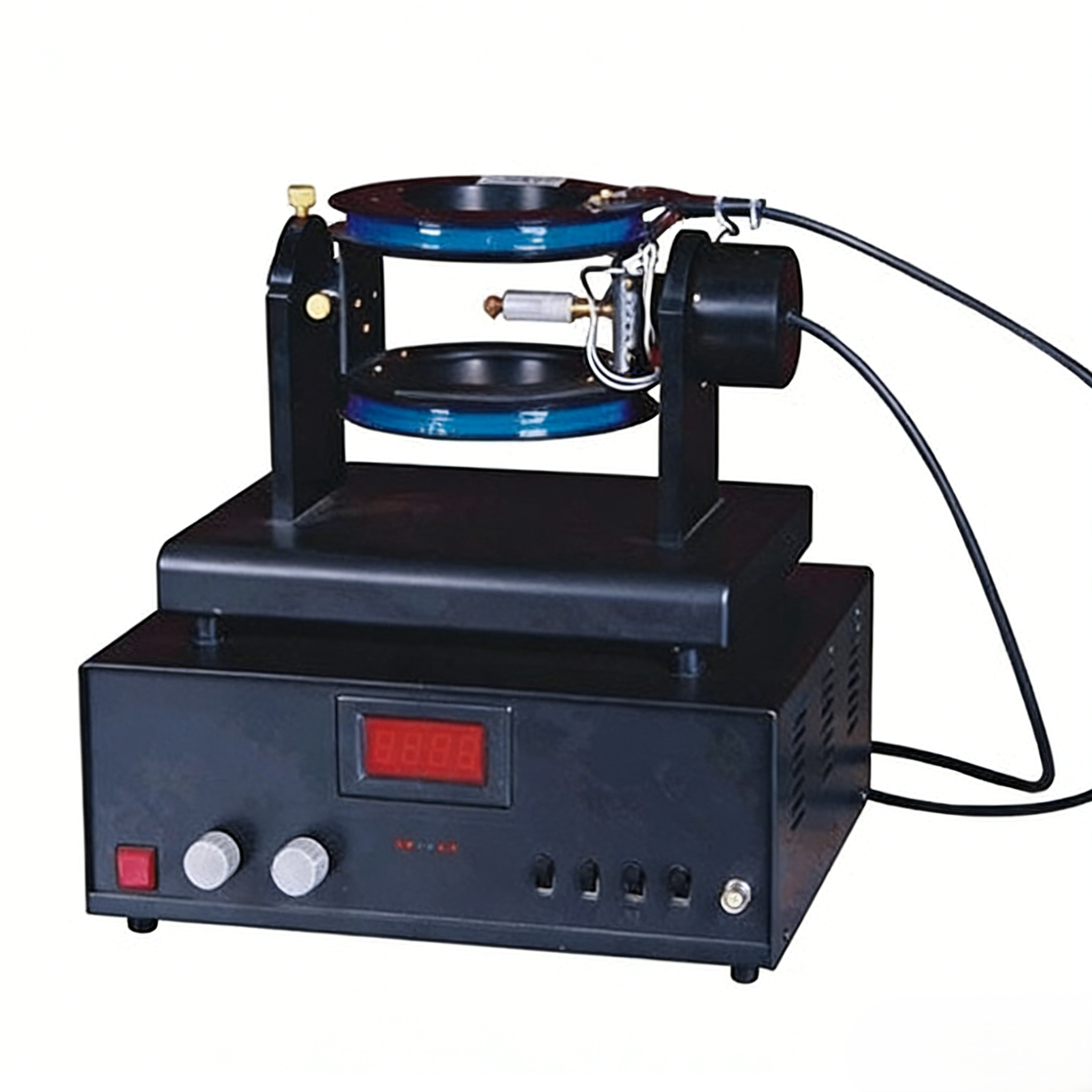

Atomfair-ESR-739 Electron Spin Resonance Spectrometer
Product Basic Information
Product Name: Atomfair Electron Spin Resonance Spectrometer
Product Type: Electronics & Laser Category
Product Overview
The Atomfair-ESR-739 is an intelligently designed, new-generation radio-frequency electron spin resonance spectrometer with multiple practical functions. It not only enables users to observe electron spin resonance phenomena and accurately measure the g-factor of DPPH but also precisely acquires geomagnetic field-related parameters at the instrument’s location, including the specific values of the vertical component, horizontal component, and magnetic dip angle of the geomagnetic field. This versatile instrument meets a wide range of experimental and measurement requirements across various application scenarios.
Core Technical Specifications
| Specification Name | Parameter Details |
|---|---|
| Measurement Range | Vertical component of geomagnetic field: 0-1GS; Horizontal component of geomagnetic field: 0-1GS |
| Measurement Accuracy | Better than 2% |
| Radio Frequency | 20±1MHz |
| Display Mode | Four-digit LED digital display (displays frequency/current) |
Product Features
- High stability and reliability, maintaining excellent performance during long-term use.
- Equipped with an embedded computer system that automatically identifies resonance points and collects experimental data, significantly improving the accuracy of measured data.
- Supports both manual and automatic measurement modes, adapting to different usage scenarios and operational needs.
- Comes with two dedicated interfaces for data display via software and oscilloscope respectively (computer and oscilloscope are optional accessories).
Optional Accessories
| Accessory Name | Specification Parameters |
|---|---|
| Computer | 2.5G dual-core processor, 200G hard disk, 3G memory, independent graphics card |
| Monitor | LCD monitor |
| Oscilloscope | Optional |
| Printer | Optional |
Application Scenarios
Ideal for scientific research institutions, universities, and industrial laboratories engaged in fields such as physics, chemistry, materials science, and geophysics. It is widely used for electron spin resonance research, DPPH g-factor measurement, and geomagnetic field parameter detection, providing reliable technical support for academic research and industrial testing.
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
